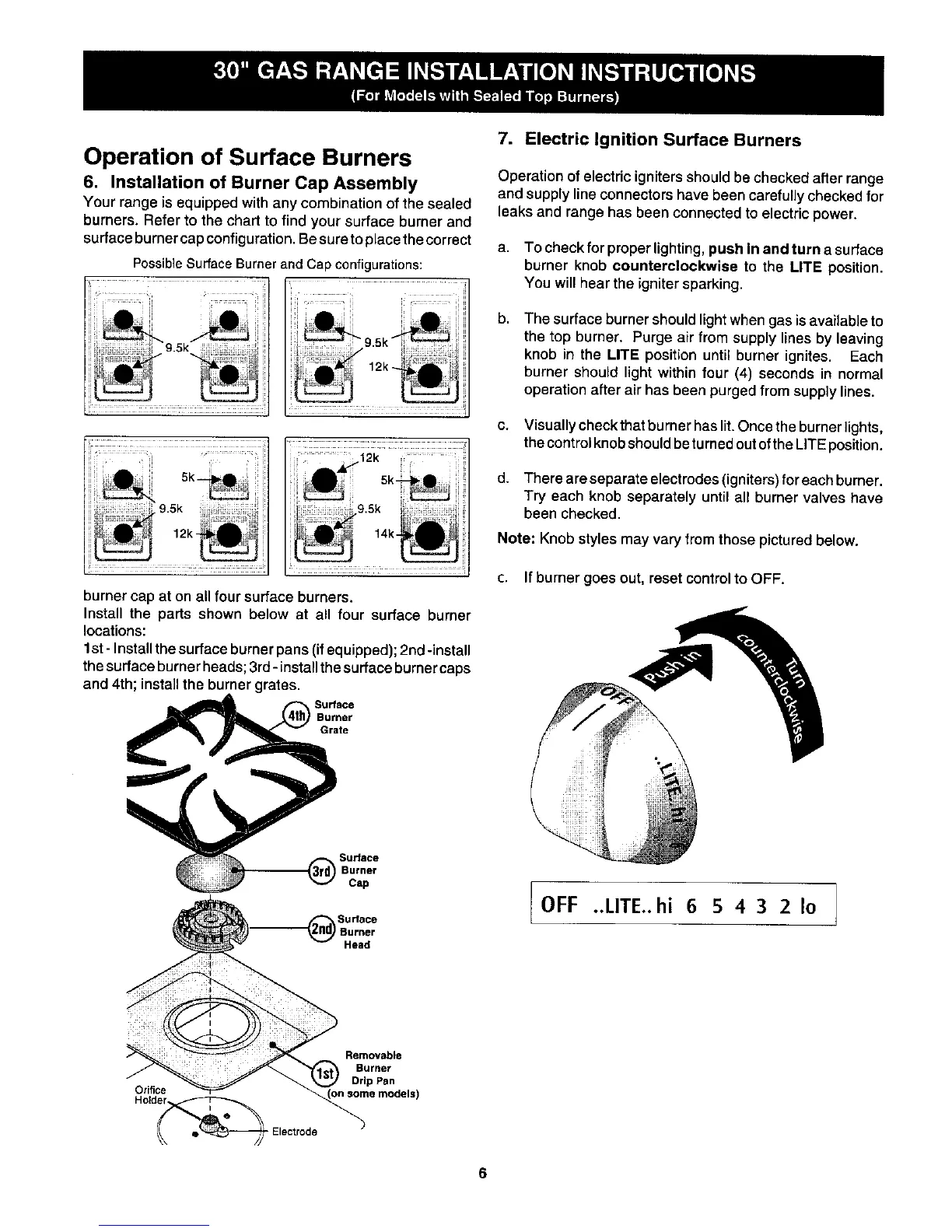

Operation of Surface Burners
6. Installation of Burner Cap Assembly
Your range isequippedwith any combinationof the sealed
burners. Refer to the chart to findyour surface burner and
surfaceburnercapconfiguration.Besuretoplacethecorrect
PossibleSurfaceBurnerand Cap configurations:
............... i ......
9 5k 9 5k
.........
burner cap at on all four surface burners.
Install the parts shown below at all four surface burner
locations:
I st - Install the surface burner pans (if equipped); 2nd -install
thesurface burner heads; 3rd- install the surface burner caps
and 4th; install the burner grates.
Surface
Burner
Grate
Sudace
Cap
Su_ece
Burner
Head
7. Electric Ignition Surface Burners
Operation of electric ignitersshould be checked after range
and supply line connectorshave been carefully checked for
leaks and range has been connected to electric power.
a. To checkfor proper lighting, push in and turn a surface
burner knob counterclockwise to the LifE position.
You willhear the ignitersparking.
b,
The surface burner should light when gas is available to
the top burner. Purge air from supply lines by leaving
knob in the LITE position until burner ignites, Each
burner should light within four (4) seconds in normal
operation after air has been purged from supplylines.
c. Visually check that burner has lit. Once the burner lights,
thecontrol knob should be turned out ofthe LITE position.
d. There are separate electrodes (igniters) for each burner.
Try each knob separately until all burner valves have
been checked.
Note: Knob styles may vary fromthose pictured below.
c. If burner goes out, reset control to OFF.
OFF ..UTE..hi 6 5 4 3 2 Io
Removable
Burrter
Drip Pan
OriflC_Holder Electrode_S°me_ models)
6
