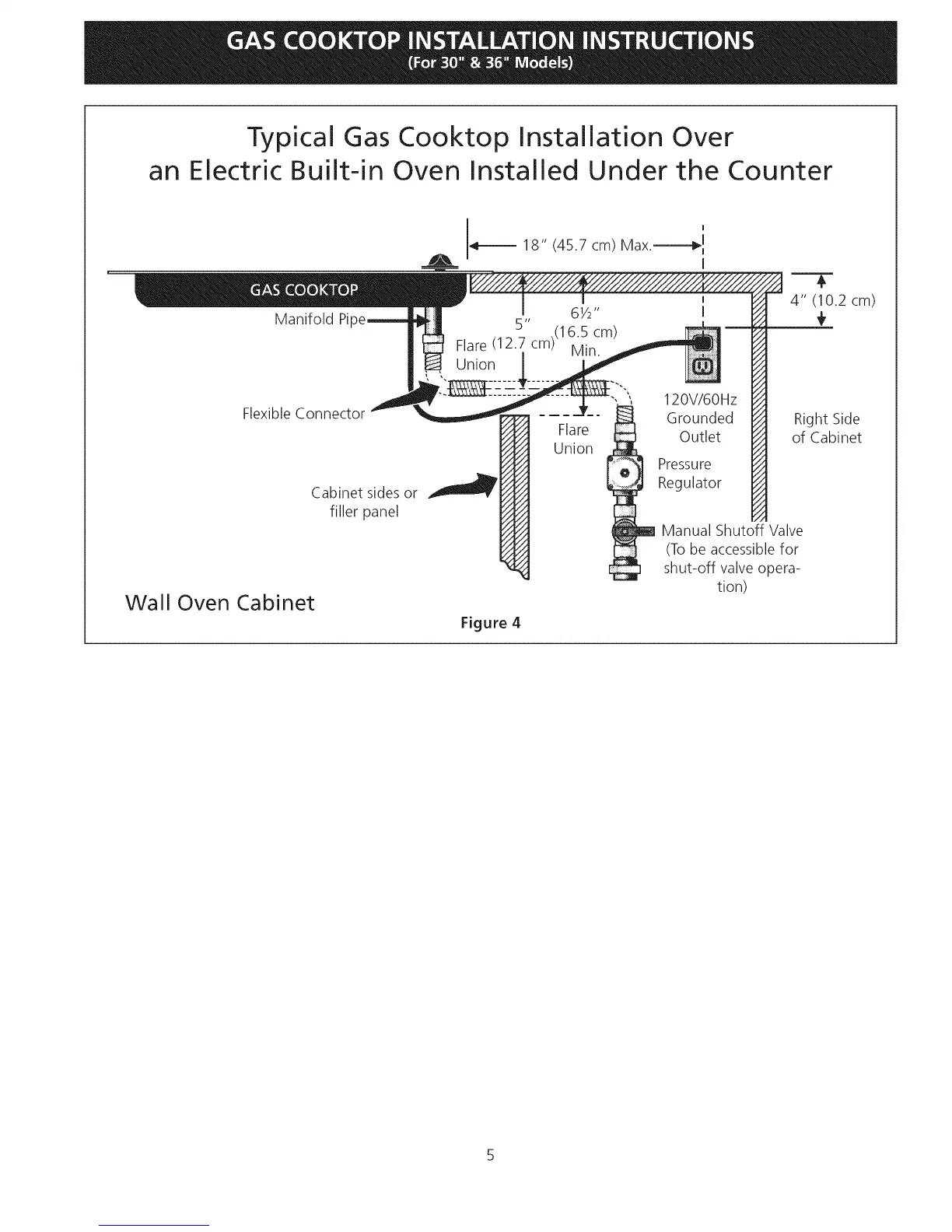

Typical Gas Cooktop Installation Over
an Electric Built-in Oven Installed Under the Counter
A__ I_l----- 18" (45.7 cm) Max.-----_
Manifold Pi
Flexible Connector
61/2"
5"cm)(16.5 cm)
Flare (12.7 Min.
Union
Cabinet sides or
filler panel
Flare
Union
Wall Oven Cabinet
120V/6OHz
Grounded
Outlet
Pressure
Regulator
÷
4" (10.2 cm)
Right Side
of Cabinet
Manual Shutoff Valve
(Tobe accessible for
shut-off valve opera-
tion)
Figure 4
