30" GAS SLIDE-IN RANGE INSTALLATION INSTRUCTIONS
(Models with Sealed Top Burners)
NOTES:
1. Do not pinch the power supply cord or the exible gas conduit between the range and the wall.
2. Do not seal the range to the side cabinets.
3. 24" (61 cm) minimum clearance between the cooktop and the bottom of the cabinet when the
bottom of wood or metal cabinet is protected by not less than 1/4" (0,64 cm) ame retardant
millboard covered with not less than No. 28 MSG sheet metal, 0,015" (0,4 mm) stainless steel,
0,024" (0,6 mm) aluminum, or 0,020" (0,5 mm) copper.
30" (76,2 cm) minimum clearance when the cabinet is unprotected.
4. For cutouts below 22 7/8" (58,1 cm), appliance will slightly show out of the cabinet.
5. Allow at least 19 ¼" (48.9 cm) clearance for door depth when it is open.
Side Panel
Door Open
(see note 5)
A. HEIGHT
(Under Cooktop)
B.
WIDTH
C.
COOKTOP
WIDTH
D. TOTAL DEPTH
TO FRONT OF
RANGE
E. CUTOUT WIDTH
(Countertop and
cabinet)
F. CUTOUT DEPTH G. HEIGHT
OF COUNTERTOP
35 7/8" (91,1 cm)
36 5/8" (93 cm)
30"
(76,2 cm)
31 ½"
(80 cm)
28 5/16"
(71,9 cm)
30±1/16"
(76,2±0,15 cm)
21 3/4" (55,2 cm) Min.
22 1/8" (56,2 cm) Max
24" (61 cm) Min. with
backguard
36 5/8" (93 cm) Max.
35 7/8" (91,1 cm) Min.
Do not
install the unit in the
cabinet before reading
next two pages.

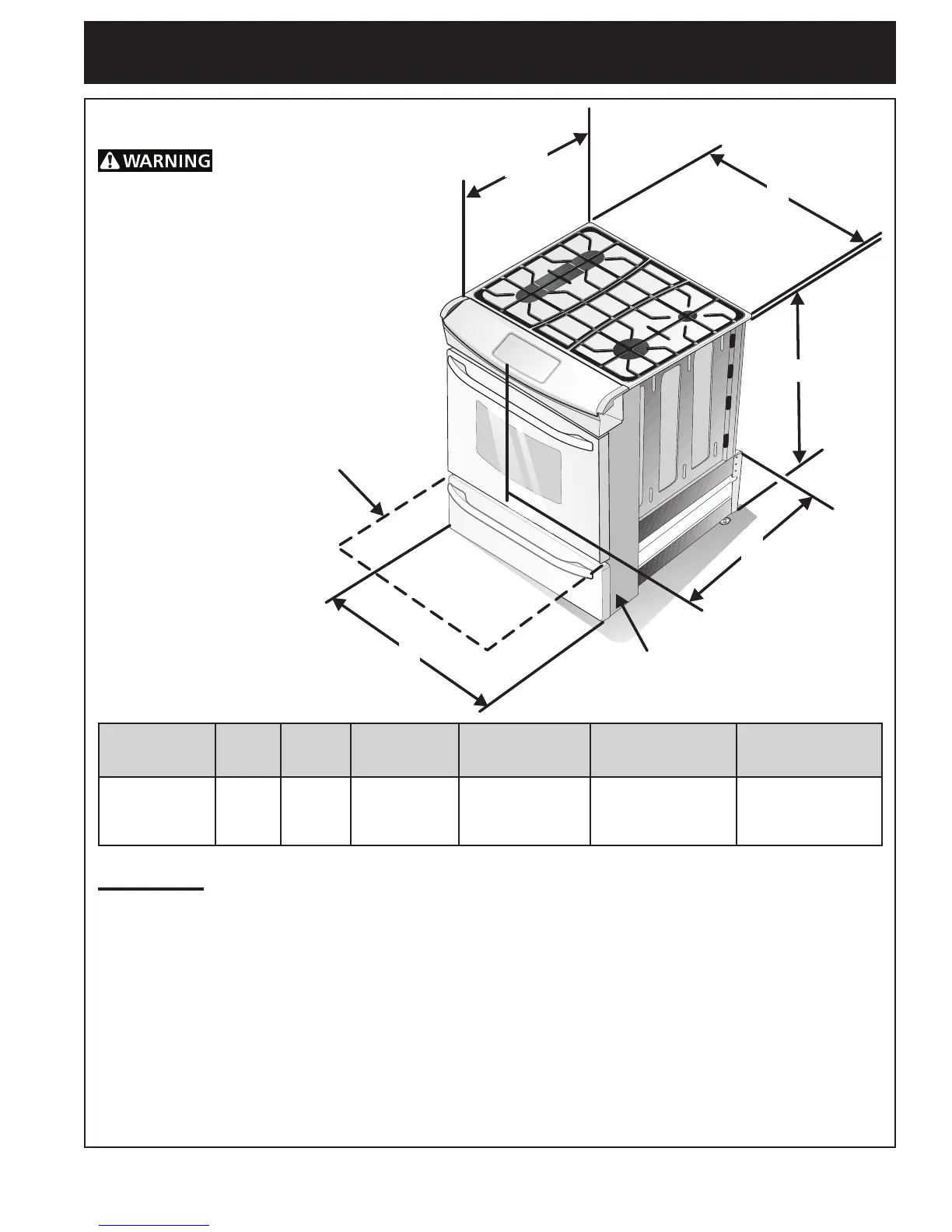

Product Dimensions
To Next Page
