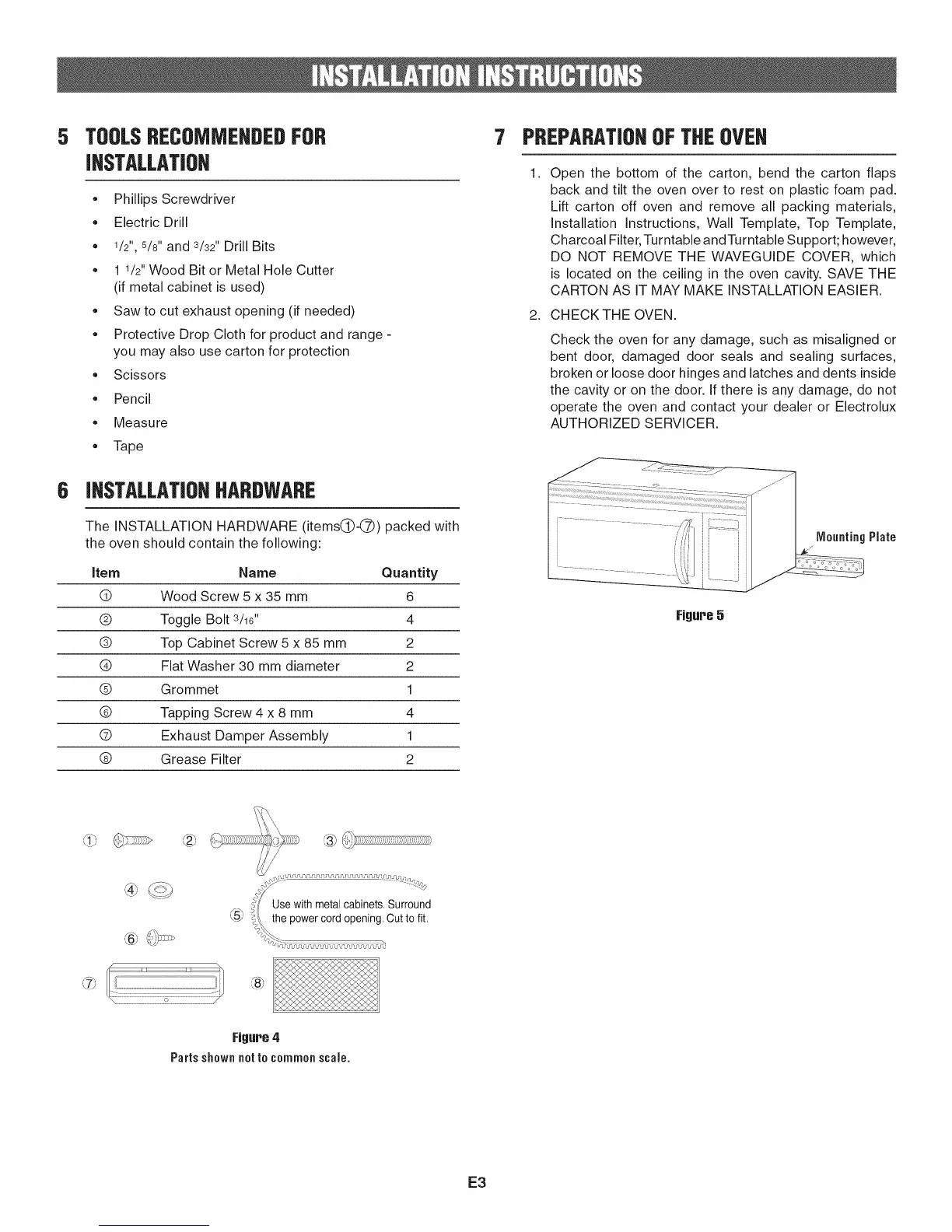

5 7 PREPARATIONOFTHEOVENTOOLSRECOMMENDEDFOR
iNSTALLATiON
• Phillips Screwdriver
• Electric Drill
® 1/2", 6/8" and 3/32" Drill Bits
• 1 1/2"Wood Bit or Metal Hole Cutter
(if metal cabinet is used)
• Saw to cut exhaust opening (if needed)
• Protective Drop Cloth for product and range -
you may also use carton for protection
• Scissors
• Pencil
• Measure
• Tape
6 INSTALLATIONHARDWARE
The INSTALLATION HARDWARE (itemsO-(Z)) packed with
the oven should contain the following:
Item Name Quantity
Q Wood Screw 5 x 35 mm 6
® Toggle Bolt 3/16" 4
@ Top Cabinet Screw 5 x 85 mm 2
@ Flat Washer 30 mm diameter 2
® Grommet 1
® Tapping Screw 4 x 8 mm 4
@ Exhaust Damper Assembly 1
@ Grease Filter 2
Open the bottom of the carton, bend the carton flaps
back and tilt the oven over to rest on plastic foam pad.
Lift carton off oven and remove all packing materials,
Installation Instructions, Wall Template, Top Template,
Charcoal Filter, Turntable andTurntable Support; however,
DO NOT REMOVE THE WAVEGUIDE COVER, which
is located on the ceiling in the oven cavity. SAVE THE
CARTON AS IT MAY MAKE INSTALLATION EASIER.
2. CHECKTHE OVEN.
Check the oven for any damage, such as misaligned or
bent door, damaged door seals and sealing surfaces,
broken or loose door hinges and latches and dents inside
the cavity or on the door. If there is any damage, do not
operate the oven and contact your dealer or Electrolux
AUTHORIZED SERVICER.
r................. _7i i P_ate
i ft ii ii
.... ,/IVlonnting
'45
Figure 5
d; L2;.
\ .................................................................................../
Figure 4
Partsshownnottocommonscale.
E3
