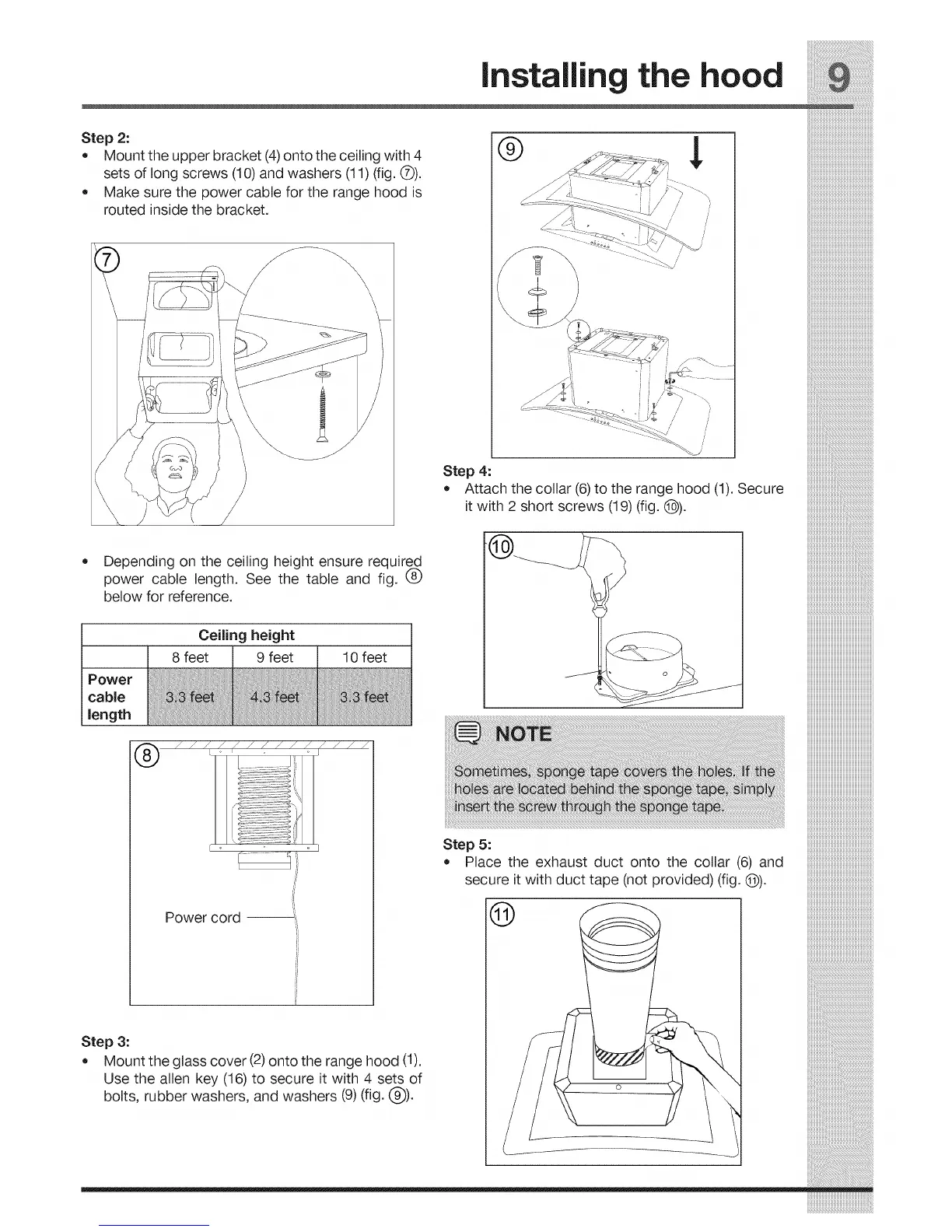

installing the hood
step2: --i-
• Mounttheupperbracket(4) ontotheceilingwith4 k_)
setsoflong screws (10) andwashers (11) (fig. C)).
• Makesurethepowercablefortherangehood is i) \
routed insidethe bracket. /
,
• Depending on the ceiling height ensure required
power cable length. See the table and fig. (&)
below for reference.
Power
cable
length
Ceiling height
8 feet 9 feet 10 feet
/ / / /
[ o
Power cord _i:_,
Step 3:
• Mount the glass cover (2) onto the range hood (1),
Use the allen key (16) to secure it with 4 sets of
bolts, rubber washers, and washers (9) (fig. (_)).
Step 4:
• Attach the collar (6) to the range hood (1). Secure
it with 2 short screws (19) (fig. O).
Step 5:
Place the exhaust duct onto the collar (6) and
secure it with duct tape (not provided) (fig. @).
