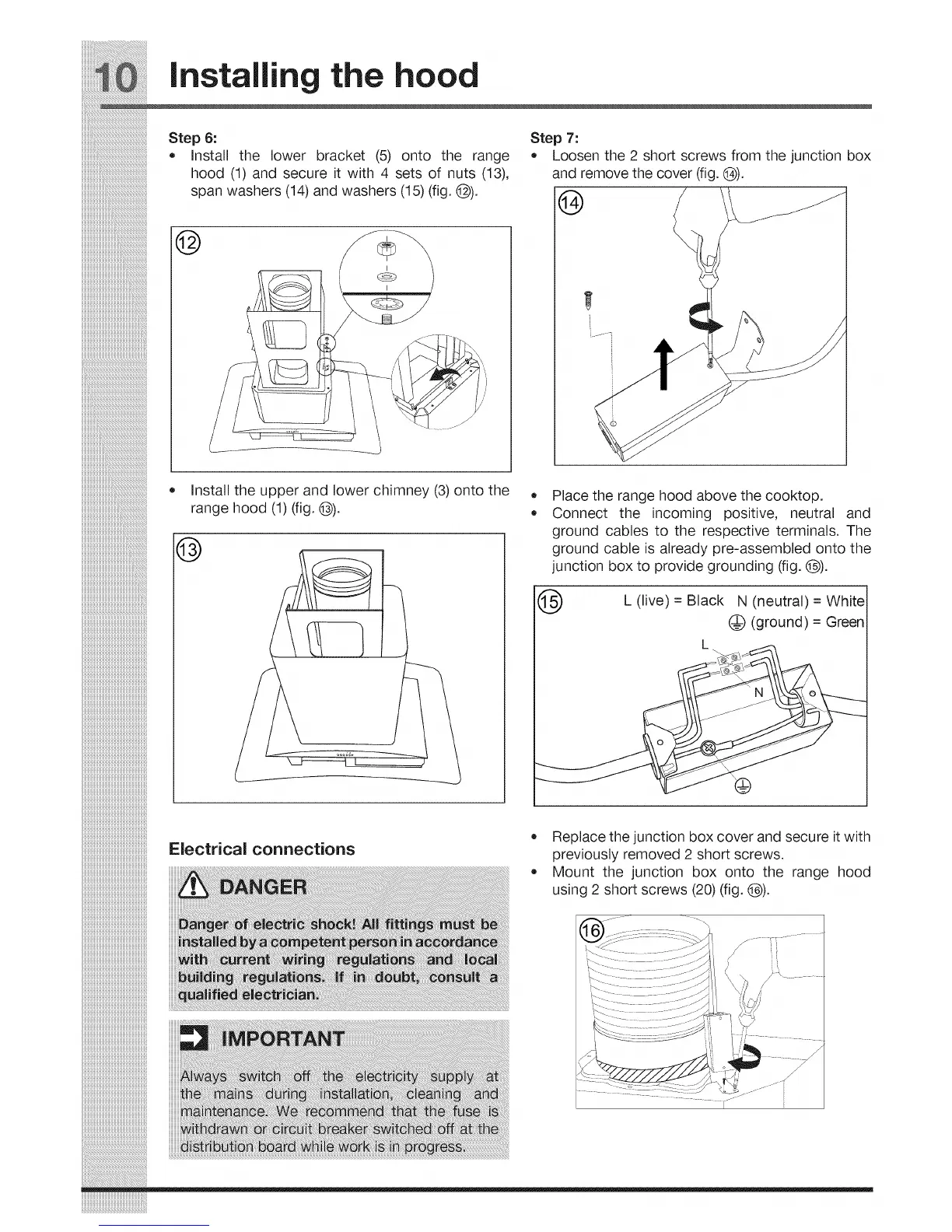

Installing the hood

Step6: st_p7:

• Install the lower bracket (5)onto the range • Loosen the 2 short screws from the unction box

hood (1) and secure it with 4 sets of nuts (13), and remove the cover (fig. @).

iii

iiiiiiiiiiiiiiiiB

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

span washers (14) and washers (15) (fig. @).

Install the upper and lower chimney (3) onto the

range hood (1) (fig. @).

Place the range hood above the cooktop.

Connect the incoming positive, neutral and

ground cables to the respective terminals. The

ground cable is already pre-assembled onto the

junction box to provide grounding (fig. Q).

L = Black N = White

(live)

(neutral)

(ground) = Green

Electrical connections

Replace the junction box cover and secure it with

previously removed 2 short screws.

Mount the junction box onto the range hood

using 2 short screws (20) (fig. (_).

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
