19OPERATING INSTRUCTIONS
Fresh Air Vent Control (on some models)
The Fresh Air Vent allows the air conditioner
to:
1. Recirculate inside air - Vent Closed (see
Fig. 1)
2. Draw fresh air into the room - Fresh Air
(see Fig. 2)
3. Exchange air from the room - Vent Open
(see Fig. 3)

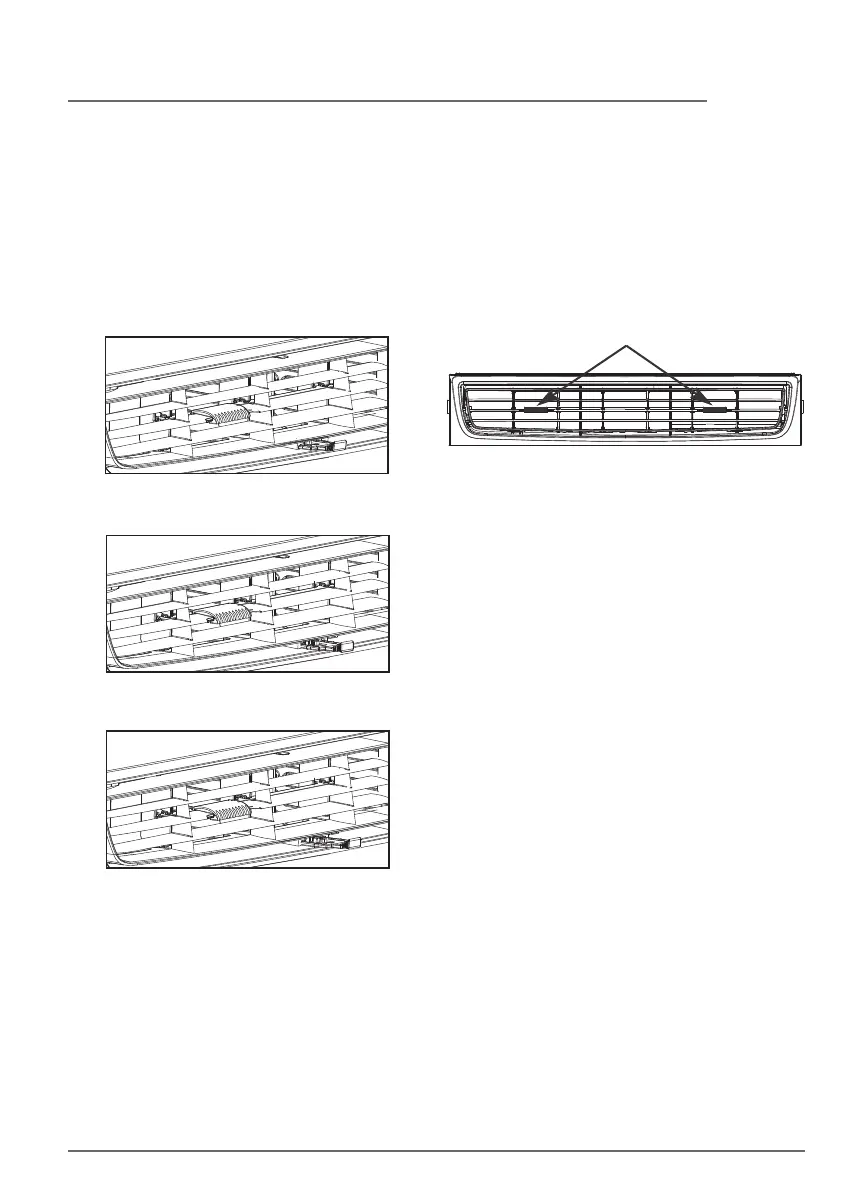

Figure 1 (VENT CLOSED)
Figure 2 (FRESH AIR)
Air Directional Louvers
Air directional louvers control air flow
direction. Your air conditioner has the louver
type described below.
Figure 3 (VENT OPEN)
Slider Type
The louvers will allow you to direct the air
flow Up or Down and Left or Right
throughout the room as needed. Drag the
adjuster tablet until the desired Left/Right
direction is obtained. Pivot horizontal louvers
until the desired Up/Down direction is
obtained.
(6-WAY)
ADJUSTER TABLET
