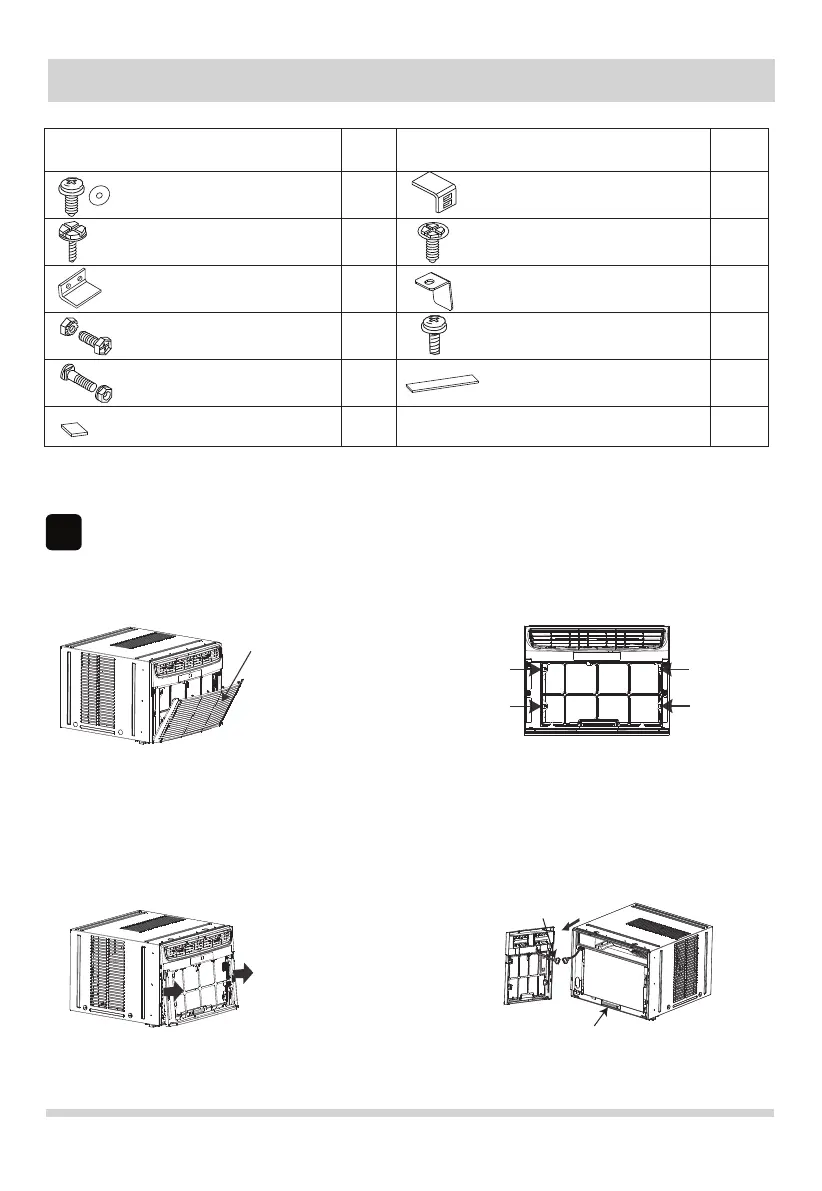

Frigidaire FHWW184WE2 - Window Mounting Preparation; Remove Unit from Cabinet

3
FIG.1
Front Grille
FIG.2
Remove Air Conditioner from Cabinet
NOTE: Remove any packaging material from cabinet exterior.
1
1. Pull down on front grille from upper edge. Lift front grille upwards and place to one side. (See FIG.1)
2. Remove filter. To remove, grasp in the middle on each side. Bow filter out to detach top edge from tabs. Once top
is free, lift filter up and out.
3. Locate the four Front Panel screws and remove. These screws will be needed to re-install the Front Panel later
(See FIG.2).
4. Push metal cabinet side inward to release plastic tabs on each side of Front Panel (see Fig. 3).
Window Mounting
Installation Instructions
Hardware ( in plastic bag)
Qty.
2 ea
7
7/16Ǝ Locking Screw and Flat
Washer for window filler panels
Qty.
2
10
1/2Ǝ Long hex head screw
Safety Lock
1
Long hex-head locking screw for top
angle rail, side retainer 5/16Ǝ long
2
5
2
2
Hardware ( in plastic bag)
1/2Ǝ Long Screw
and locknut
3/4Ǝ Long Flat Head Bolt
and Locknut
foam insert
4 ea
2 ea
Sill Angle Bracket
Safety Lock
(for Vinyl-Clad window)
Locking screw #10 X 1/4Ǝ panhead
Phillips screws (for Vinyl-Clad window)
weather stripping
(10ƎX3/4ƎX1/12Ǝ)
FIG.3
5. Rotate Front Panel up until top tabs are free. Pull panel straight out. When pulling out, front panel will also pull free
from vent control lever. Depress latch on electronics plug (on some models) to disconnect.
6. Remove Front Panel from unit (see Fig. 4).
FIG.4
base pan handle
Main control cord
