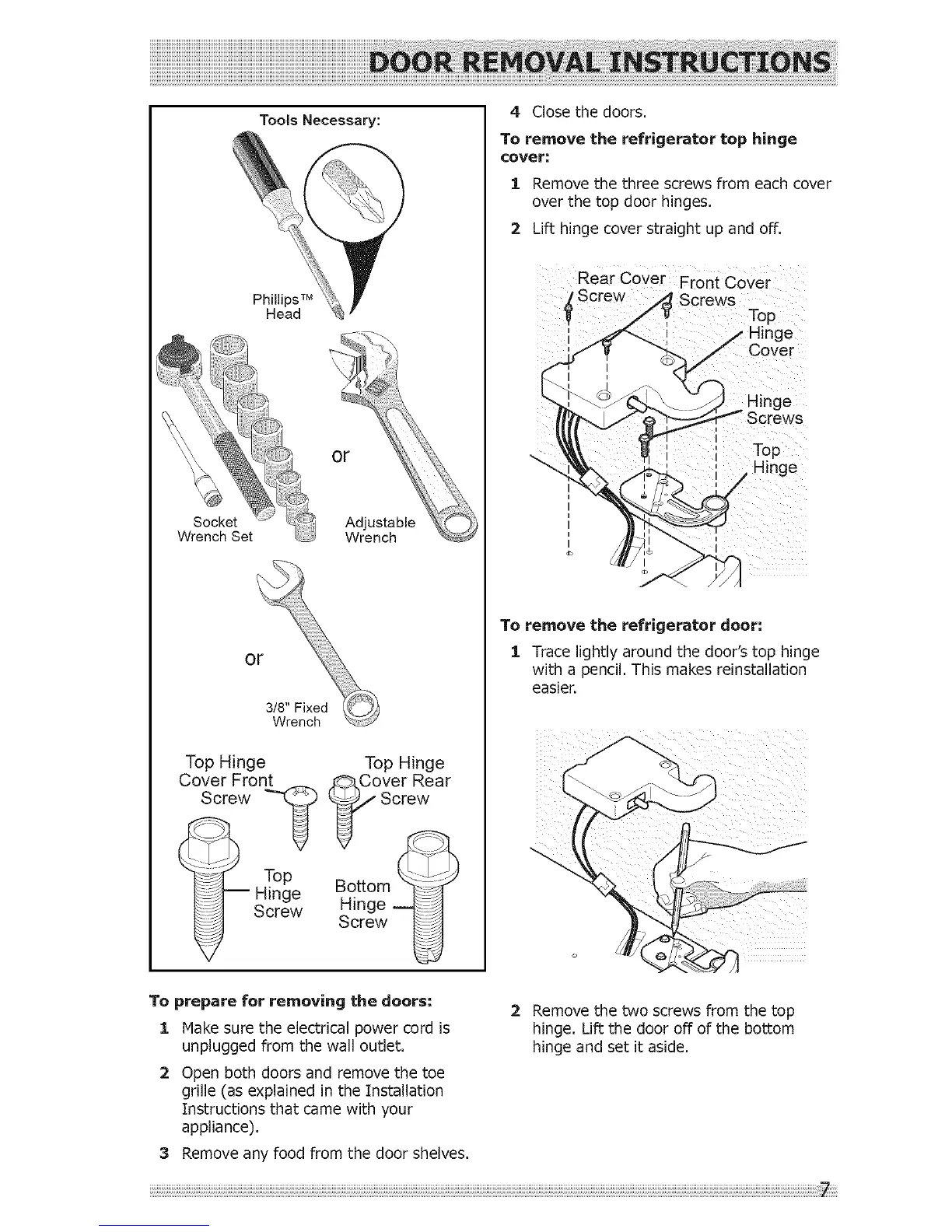

Tools Necessary:
Phillips TM
Head
Socket
Wrench Set
Top Hinge Top Hinge
COVs_rrFrwOn_ ,_-d_Cover Rear
_ _ Screw
Top
_ Hinge Bottom
_ Screw Hinge
4 Close the doors.
To remove the refrigerator top hinge
cover:
1 Remove the three screws from each cover
over the top door hinges.
2 Lift hinge cover straight up and off.
Rear Cover Float cover
Screw Screws
Top
I
i
Cover
i
I
I
I
Hinge
Screws
Top
,Hinge
To remove the refrigerator doer:
1 Trace lightly around the door's top hinge
with a pencil. This makes reinstallation
easier.
To prepare for removing the doors:
1 Make sure the electrical power cord is
unplugged from the wall outlet.
Open both doors and remove the toe
grille (as explained in the Installation
Instructions that came with your
appliance).
3 Remove any food from the door shelves.
Remove the two screws from the top
hinge. Lift the door off of the bottom
hinge and set it aside.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Frigidaire FPHC2399PF7A and is the answer not in the manual?

Frigidaire FPHC2399PF7A Specifications

General IconGeneral
Typefreestanding
Styleside-by-side
Refrigerator Capacity14.2 cubic feet
Freezer Capacity8 cubic feet
Humidity Controlled Crispersyes
Defrost Systemautomatic
Number of Refrigerator Door Binsyes
Temperature Controltouch
Ice Makeryes
Water Filteryes
Smart Homeno
Current8.5 amperes
Weight and Dimensions IconWeight and Dimensions
Depth28.5 inches
Height68.63 inches
Width35.88 inches
Net Weight312 pounds
