4

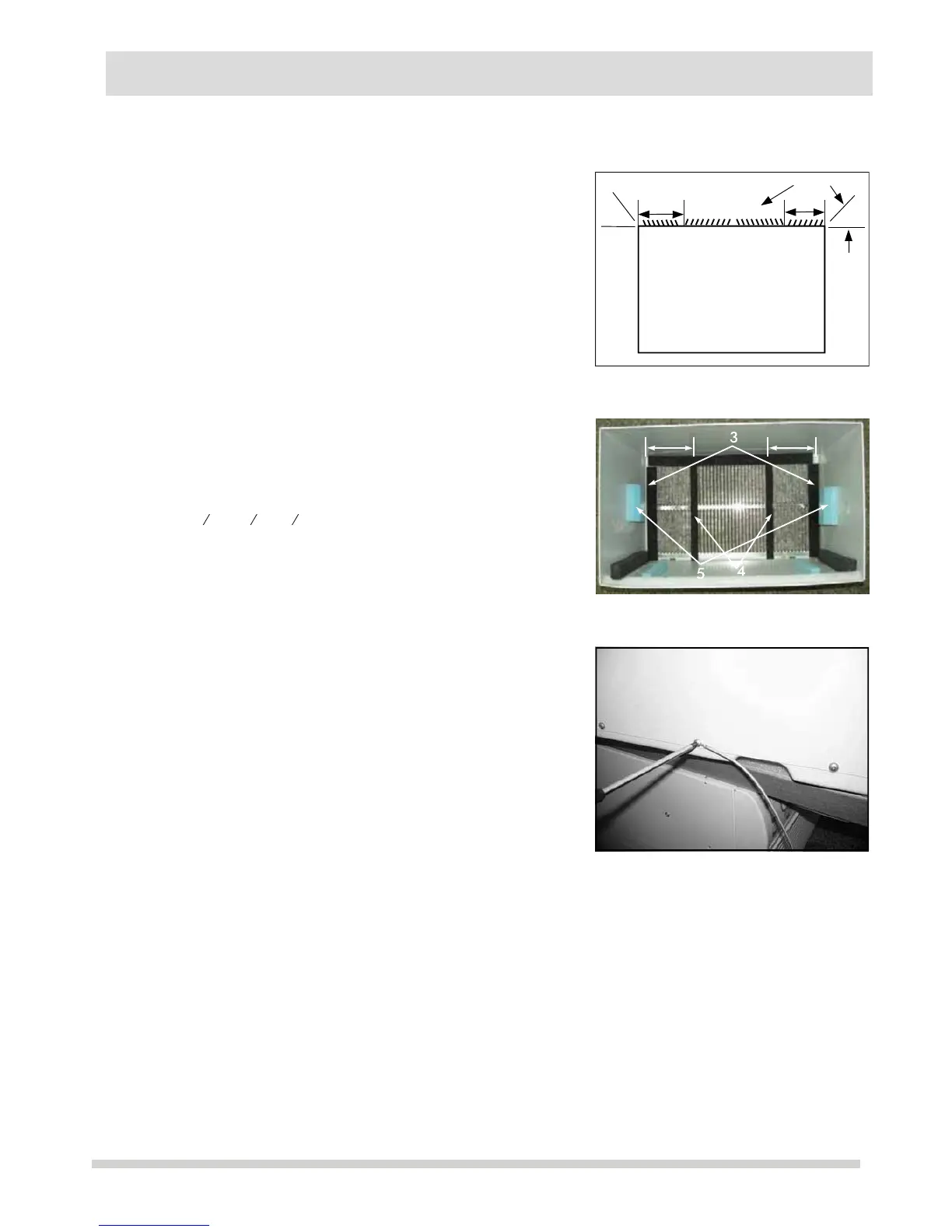

Installation Instructions
#1 Emerson
Wall Sleeve Brands:
1. Remove existing
NOTE: You may need to drill holes in flange of existing sleeve to match
new rear grille
rear grille as shown on Page 3 of this manual and
replace with provided louvered rear panel. Install as shown here.
2. Attach(1)1" x 3/8" x 25" long seal in the center at the top of the sleeve.
Remove the backing paper and press into position.
3. Attach(2)1" x 3/8" x 14" seals to the left and right sides of the sleeve.
6. Gently slide unit into sleeve.
8. Remove the plastic washer from the screw.
9. Screw and attach the other end of the ground wire from sleeve to the
unit as shown in picture. Make sure that the toothed washer is against
the cabinet.
10. Slide the unit completely to the rear to ensure a good seal, making
sure the ground wire does not become tangled.
7. Before sliding all-the-way back, remove 2nd screw from fron on left
side of unit.
4. Cut(2)1" x 3/8" x 25" long seals to 14" long each and attach to the
vertical sections of the grille as shown.
5. Attach (2) 4 " x 3 " x 1 " centering/support blocks one on each
side wall. Place in center of side wall with the tapered end facing the
opening.
1
2
1
2
1
2
15" Deep
11. Seal & Frame the unit as described on the last page of these
instructions.
12. If you have difficulty with mounting the grill to the sleeve, follow the
instructions for direct mounting on Page 13.
4.5" 4"
80º
50º 50º
Rear Louvers
80º
Top View
4.5" 4"
To Next Page
