Installation Instructions
#5 Sears or Carrier 51S Series
Wall Sleeve Brands:

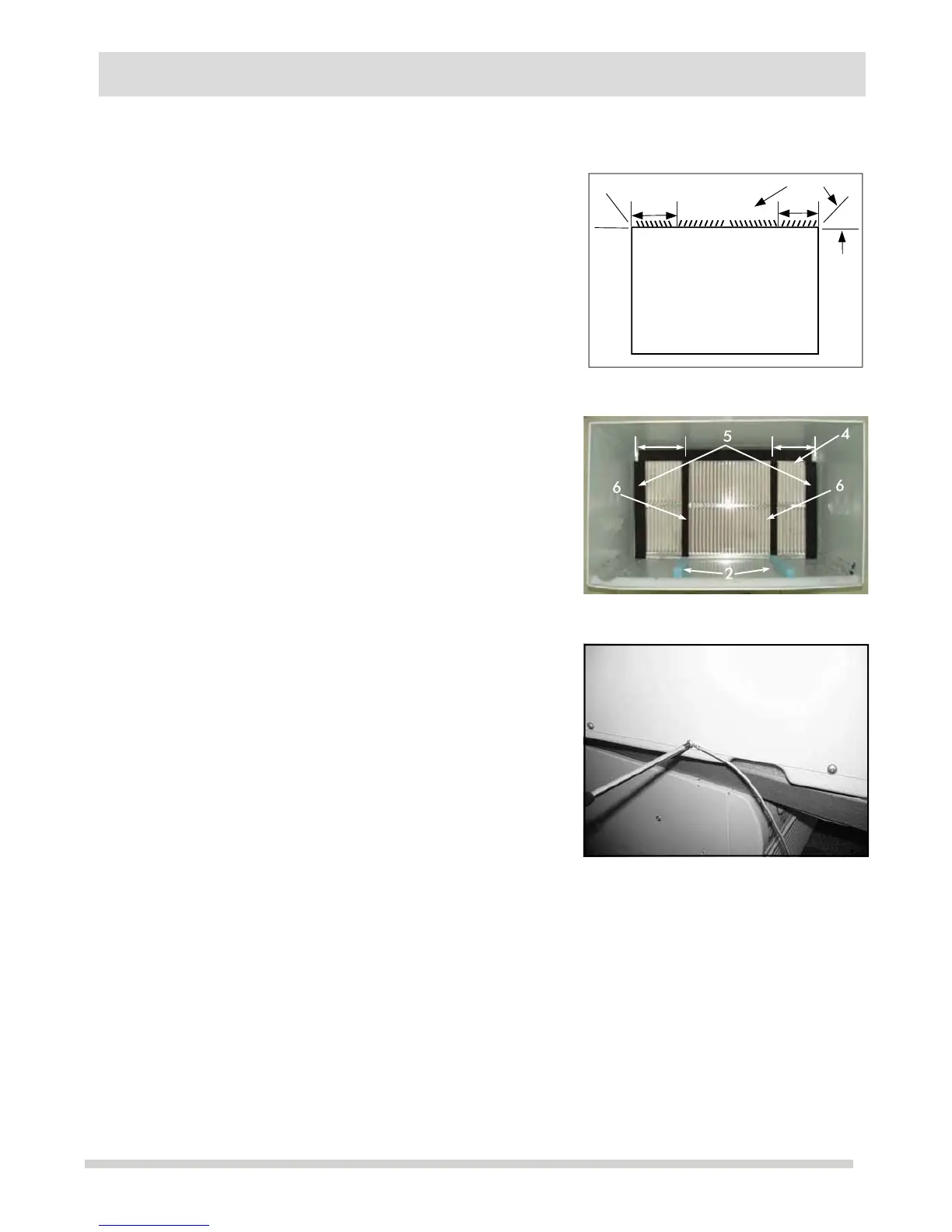

1. Remove existing rear grille as shown on Page 3 of this manual and
replace with provided louvered rear panel. Install as shown here.
80º
50º 50º
Rear Louvers
80º
Top View
18-5/8" Deep
2. Install (2) tapered spacer blocks to the floor of the sleeve as shown.
This helps induce a rearward slope on the unit.
3. Install as shown with the tapered end 1/2" from the back of the sleeve.
This helps induce a rearward slope on the unit.
4. Attach (1) 1" x 3/8" x 25" long seal in the center at the top of the sleeve.
Remove the backing paper and press into position
5. Attach (2) 1" x 3/8" x 14" seals to the left and right sides of the sleeve.
6. Cut (2) 1" x 3/8" x 25" long seals to 14" long each and attach to the
vertical sections of the grille as shown.
7. Center unit & gently slide unit into sleeve.
8. Before sliding all-the-way back, remove 2nd screw from front on left
side of unit.
9. Remove the plastic washer from the screw.
11. Slide the unit completely to the rear to ensure a good seal, making
sure the ground wire does not become tangled.
12. Seal & Frame the unit as described on the last page of these instructions.
10. Screw and attach the other end of the ground wire from sleeve to the
unit as shown in picture. Make sure that the toothed washer is against
the cabinet.
8
NOTE: You may need to drill holes in flange of existing sleeve to match
new rear grille
13. If you have difficulty with mounting the grill to the sleeve, follow the
instructions for direct mounting on Page 13.
4.5" 4"
4.5" 4"
