Frigidaire FRS12PYC1 - Settlement of outdoor unit; Condensate drainage of outdoor unit (no for cooling only)

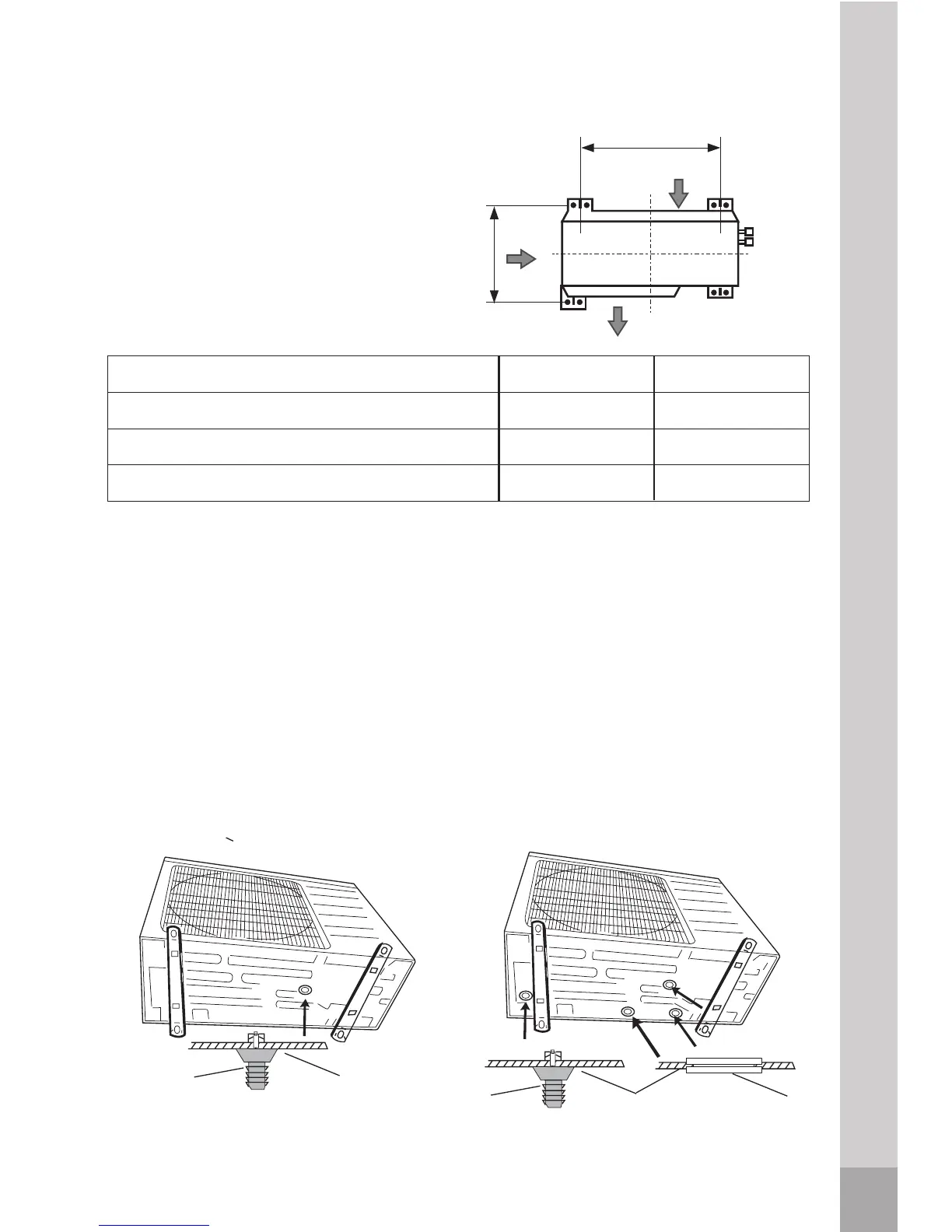

Settlement of outdoor unit
Anchor the outdoor unit tightly and
horizontally on a concrete or rigid
Air inlet
Air
inlet
Air outlet
$
%
mount with a bolt and nut 0.39" or 
Aft) B( ft)
Outdoor unit dimension ft(WxHxD)
[[
[[




'
[[
1'
0.32" diameter (Purchased separately).
Chassis
Drain
connection
Drainage
Plug
Condensate drainage of outdoor unit
(no for cooling only)
The condensate and defrosting water formd during heating
in the outdoor unit can be properly discharged by drainage
pipe .
Installation method:Insert the drain connection into one of the
25 holes of the chassis and then connect drainage pipe with
drain nozzle. Insert drainage plugs into the other holes
(Only for 12000Btu's).
Chassis
Drain
connection
12000 Btu's
<
%WXV
Ø

16
Outdoor unit installation
