8

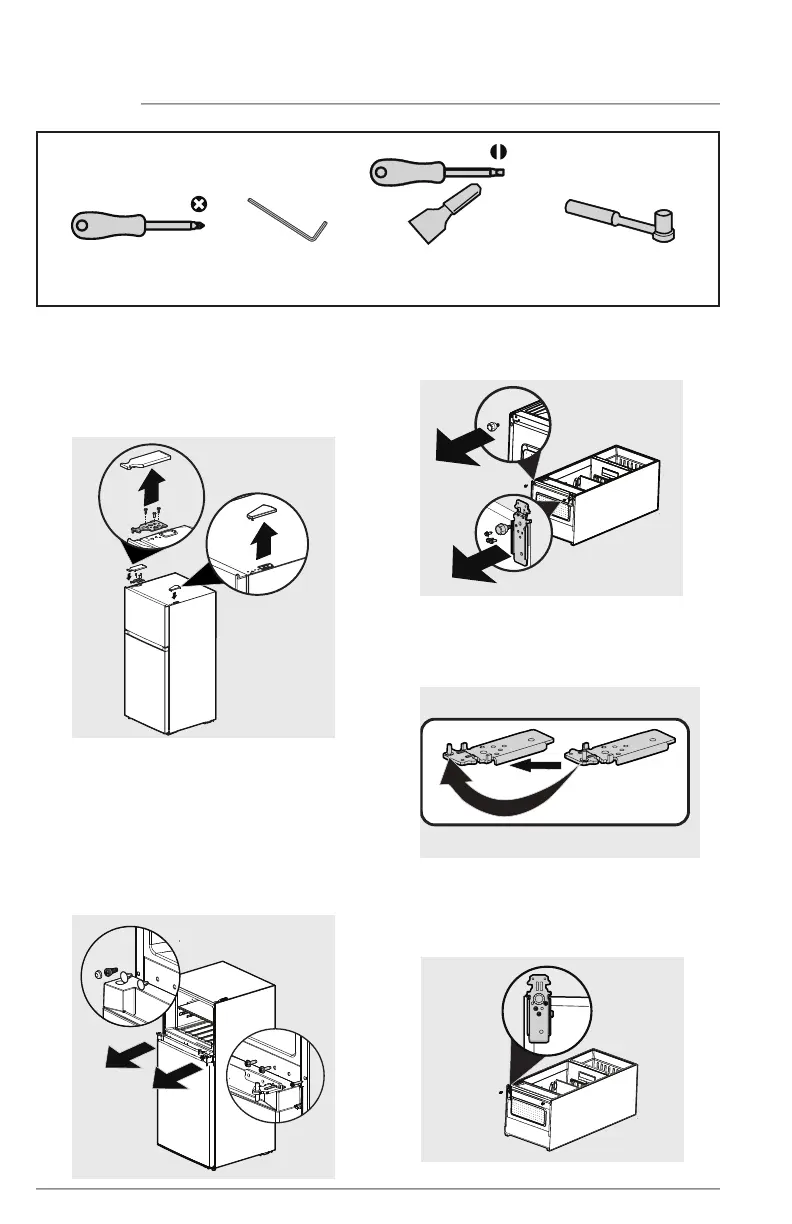

DOOR REVERSAL
1. Unplug your refrigerator and remove
all food from it.
2. Remove the top hinge cover, screws
and upper hinge on the top of the
cabinet and the cover plate on the
left. Lift up the freezer door.
3. a. Remove the hinge screws and
the hinge plug from the center
hinge on the right side.
b. Remove the center screw
and cap and the plug pins
from the left side. Lift up the
refrigerator door.
Lay the refrigerator down on a
protected surface.
Phillips Screwdriver Allen Wrench
Flat Head Screwdriver
or Putty Knife
5/16" socket
and ratchet
Required Tools
4. Unscrew the lower hinge screws on
the right side and adjusting feet on
both sides.
A
B
5. Remove the hinge pin from the
lower hinge, and reinstall it into the
hole on the opposite side of the
hinge.
6. I
nstall the lower hinge on the left side
and tighten the screws. Install the two
adjusting feet on both sides, and place
the refrigerator upright.
To Next Page
