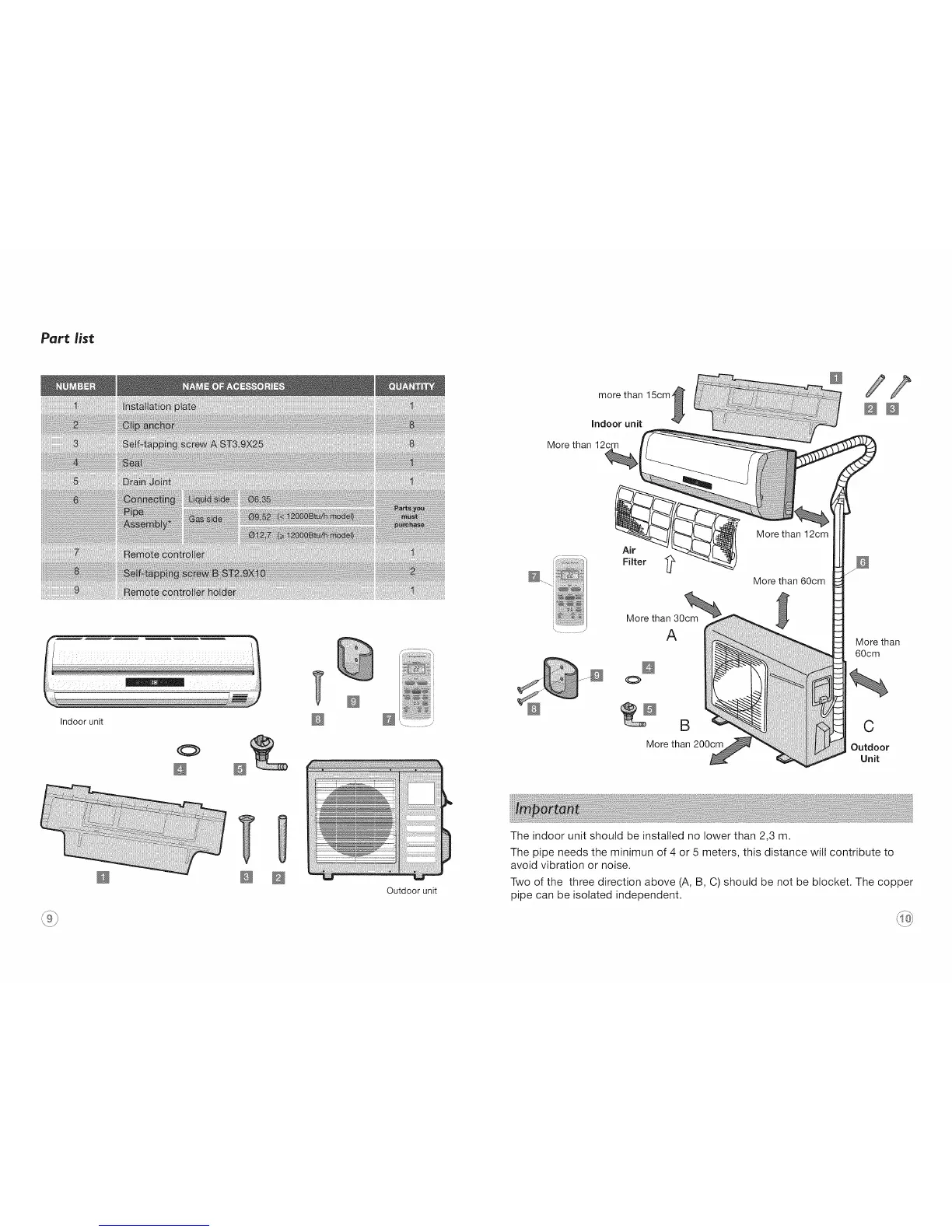

Part list
more than 15cm_
Rndoorunit
More than 12cm
Air
Filter <_
More than 60cm
Indoor unit
O
Outdoor unit
\ ......... J
More than 30cm
A
More than
60cm
B C
More than 200cm Outdoor
Unit
The indoor unit should be installed no lower than 2,3 m.
The pipe needs the minimun of 4 or 5 meters, this distance will contribute to
avoid vibration or noise.
Two of the three direction above (A, B, C) should be not be blocker. The copper
pipe can be isolated independent.
