Ground Wire
If your washing machine has a ground wire (green
or green/yellow) near the power cord it must be
connected to a suitable grounding point. Do not
connect the ground wire to taps, water, electric or
gas pipes or to the neutral wire.
If your machine is equipped with a 3-pin plug,
connect it to an appropriate grounded outlet. The
ground wire pin of the plug cannot be cut.
Circuit breakers
It is mandatory to install an exclusive circuit breaker
for the washing machine. If in doubt regarding the
electrical system of your residence, consult the
energy provider.
For a 127V washing machine, use a 20A circuit
breaker in phase.
Voltage 127V
The hose has a filter that prevents
admission of any kind dirt that can
come through the water supply net. The
machine cannot be used without the
filter, this could damage the machine and
would cause lost of warranty.
A new set of hoses is provided and must
be installed in this product. Do not use
old hoses.
IMPORTANT

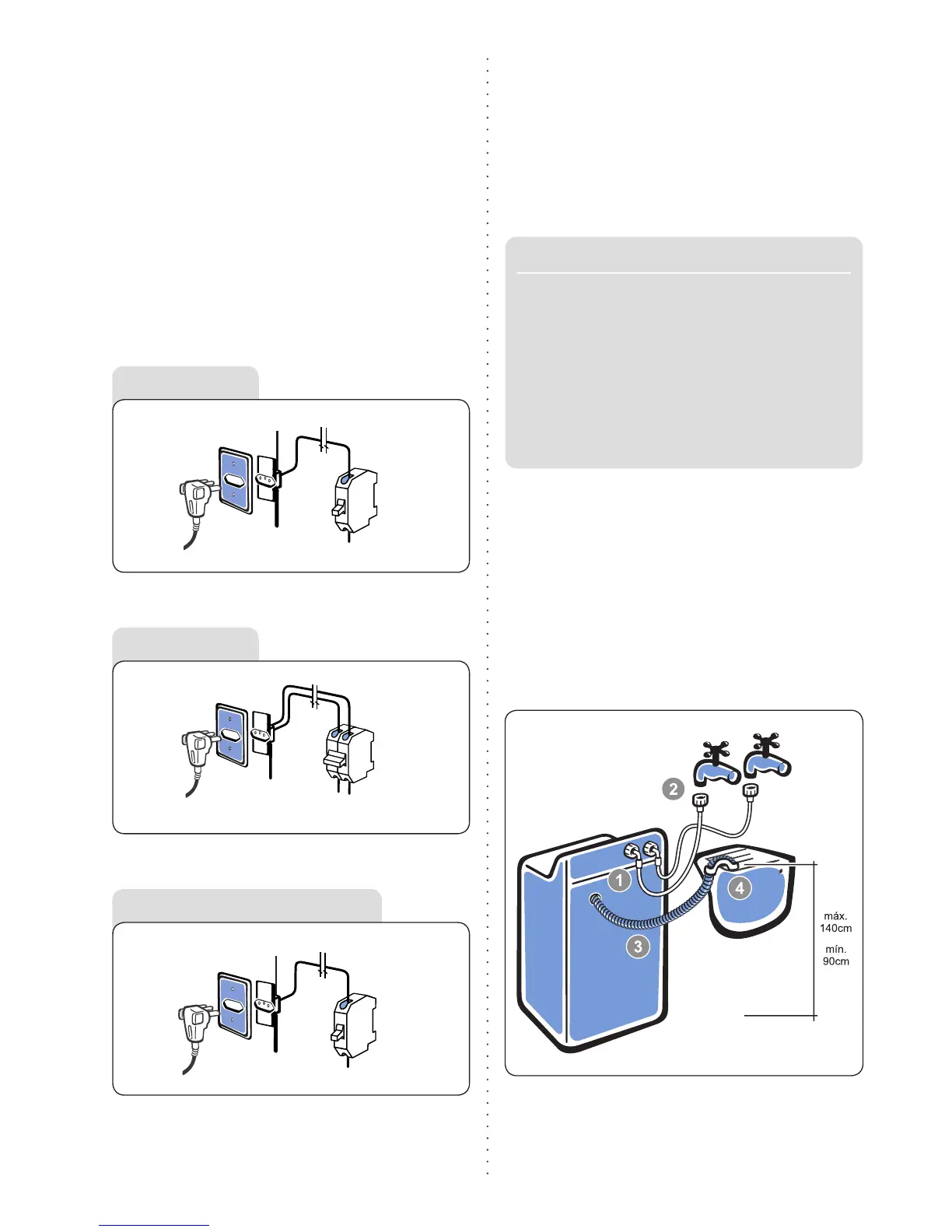

Hydraulic installation
Water inlet hose (1)
Attach the end of the hose that comes loose on
faucet, so it is fully threaded (2).
Open the faucet and check for leaks. It is required to
use a faucet at water inlet with thread 3/4".
The use of low quality faucet will damage the hose
of your washing machine causing water leakages.
Water outlet hose (3)
Place the hose in the drain outlet or at the edge of
the laundry sink (4) with a maximum height of 140cm
and a minimum of 90cm for the proper operation
of your product.
Place the hose into the tube in a maximum of 20cm
in the drain outlet.
When putting the hose on the edge of the laundry
sink, make sure the hose end is not submerged
in water tank, because the water can return to the
inside of the washing machine.
Never attach the drain hose in another hose to
increase the length; it may damage the internal
system of water outlet.
