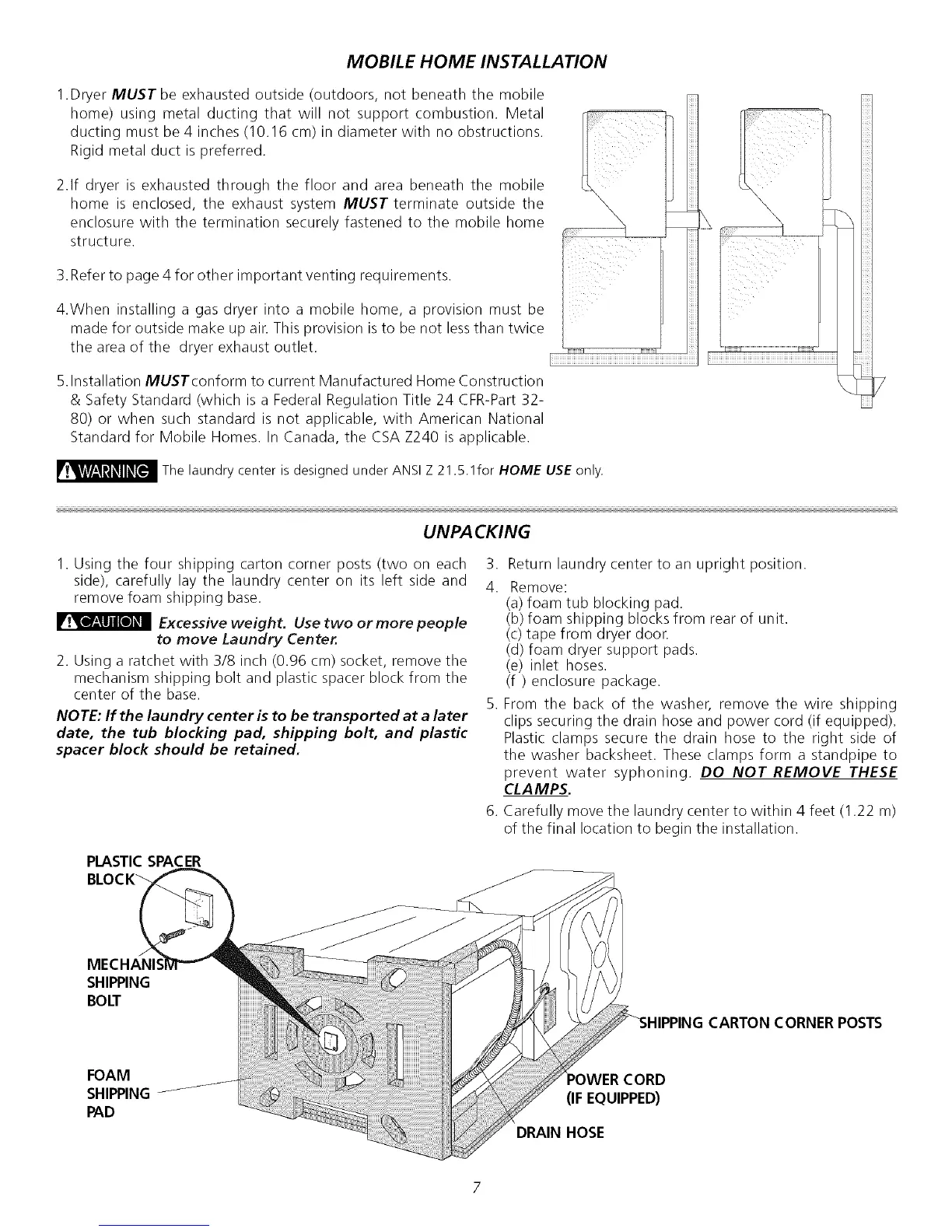

MOBILE HOME INSTALLATION
1.Dryer MUST be exhausted outside (outdoors, not beneath the mobile
home) using metal ducting that will not support combustion. Metal
ducting must be 4 inches (10.16 cm) in diameter with no obstructions.
Rigid metal duct is preferred.
2.If dryer is exhausted through the floor and area beneath the mobile
home is enclosed, the exhaust system MUST terminate outside the
enclosure with the termination securely fastened to the mobile home
structure.
3.Refer to page 4 for other important venting requirements.
4.When installing a gas dryer into a mobile home, a provision must be
made for outside make up air. This provision is to be not lessthan twice
the area of the dryer exhaust outlet.
5.Installation MUSTconform to current Manufactured Home Construction
& Safety Standard (which is a Federal Regulation Title 24 CFR-Part 32-
80) or when such standard is not applicable, with American National
Standard for Mobile Homes. In Canada, the CSA Z240 is applicable.
ii i
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
_1__ The laundry center is designed under ANSI Z 21.5.1for HOME USE only.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
UNPACKING
1. Using the four shipping carton corner posts (two on each
side), carefully lay the laundry center on its left side and
remove foam shipping base.
Excessive weight. Use two or more people
to move Laundry Center.
2. Using a ratchet with 3/8 inch (0.96 cm) socket, remove the
mechanism shipping bolt and plastic spacer block from the
center of the base.
NOTE: If the laundry center is to be transported at a later
date, the tub blocking pad, shipping bolt, and plastic
spacer block should be retained.
3. Return laundry center to an upright position.
4. Remove:
(a) foam tub blocking pad.
(b) foam shipping blocks from rear of unit.
(c) tape from dryer door.
(d) foam dryer support pads.
(e) inlet hoses.
(f) enclosure package.
5. From the back of the washer, remove the wire shipping
clips securing the drain hose and power cord (if equipped).
Plastic clamps secure the drain hose to the right side of
the washer backsheet. These clamps form a standpipe to
prevent water syphoning. DO NOT REMOVE THESE
CLAMPS.
6. Carefully move the laundry center to within 4 feet (1.22 m)
of the final location to begin the installation.
PLASTICSPACER
SHIPPING
BOLT
FOAM
SHIPPING
PAD
(IF EQUIPPED)
DRAIN HOSE
CARTON CORNER POSTS
To Next Page
