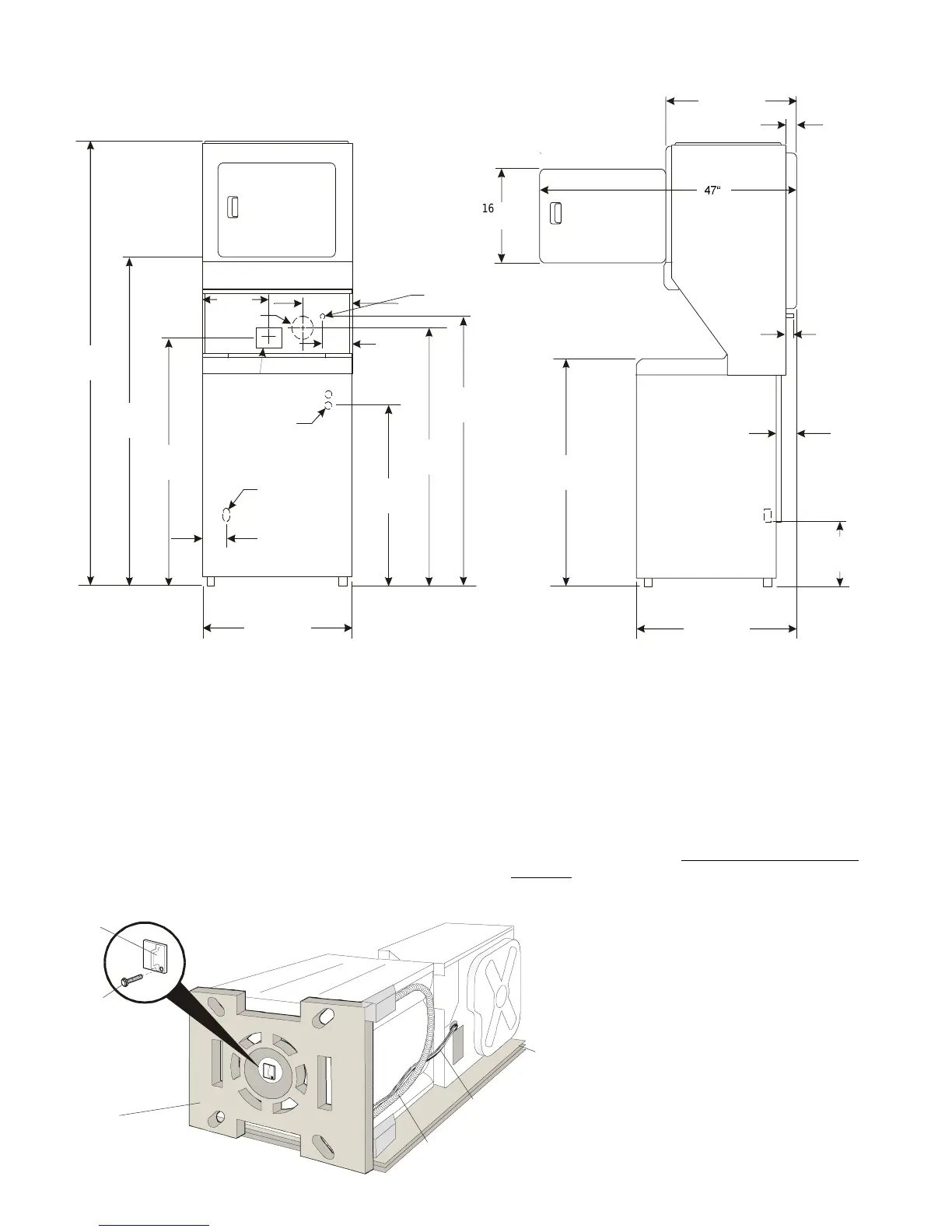

ROUGH-IN DIMENSIONS
UNPACKING
1. Using the four shipping carton corner posts (two on each
side), carefully lay the laundry center on its left side and
remove foam shipping base.
2. Using ratchet with 3/8 inch (0.96 cm) socket, remove
mechanism shipping bolt and plastic spacer block from
center of base.
NOTE: If the laundry center is to be transported at a
later date, the tub blocking pad, shipping bolt, and
plastic spacer block should be retained.
3. Return laundry center to an upright position.
4. Remove:
(a) foam tub blocking pad.
(b) foam shipping blocks from rear of unit.
(c) tape from dryer door.
(d) foam dryer support pads.
(e) inlet hoses.
(f) enclosure package.
5. From the back of the washer, remove the wire shipping
clips securing the drain hose and power cord (if equipped).
Plastic clamps secure the drain hose to the right side of the
washer backsheet. These clamps form a standpipe to
prevent water syphoning. DO NOT REMOVE THESE
CLAMPS.
6. Carefully move the laundry center to within 4 feet (1.22 m)
of the final location to begin the installation.
5
25 ¼ IN.
(64.13 CM)
3 ¾ IN.
(9.52 CM)
4 13/16 IN.
(12.22 CM)
9 3/8 IN.
(23.81 CM)
2 ½ IN.
(6.35 CM)
³
16 ¼ IN.
(41.27 CM)
36 1/16IN.
(91.60 CM)
30 13/16 IN.
(78.26 CM)
11 7/16 IN.
(29.5 CM)
41 ¼ IN
(104.77 CM)
29 7/16 IN
(74.77 CM)
27 IN.
(68.58CM)
DRAIN OUTLET
(REAR)
WATER INLETS
(REAR)
VENT
1 7/8 IN.
(4.76 CM)
5 ¼ IN.
(13.33 CM)
GAS SUPPLY
PIPE (REAR)
43 IN.
(109.22 CM)
54 5/16 IN.
(137.95 CM)
75 ½ IN.
(191.77 CM)
43 IN.
(109.22 CM)
ELECTRICAL
CONNECTION
12 ½ IN.
(31.75 CM)
PLASTIC SPACER
BLOCK
MECHANISM
SHIPPING
BOLT
FOAM
SHIPPING
PAD
DRAIN HOSE
POWER CORD
(IF EQUIPPED)
SHIPPING CARTON CORNER POSTS
