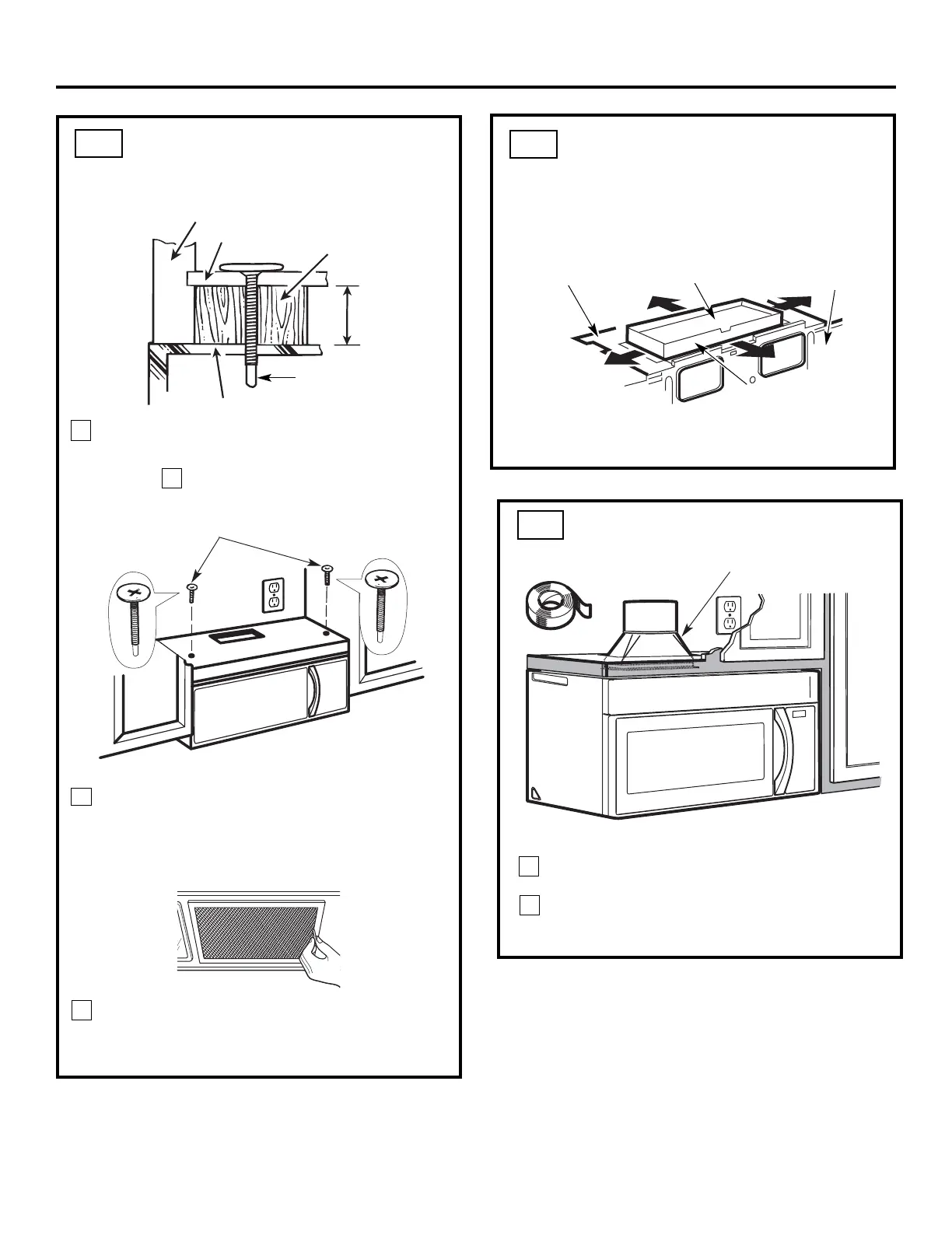

Frigidaire LFMV1846VFA - Outside Top Exhaust - Oven Mounting and Ducting; Mount the Microwave Oven (Continued); Adjust the Exhaust Adaptor; Connecting Ductwork

4
Attach the microwave oven to the top cabinet.
8
7
Cabinet Front
Cabinet Bottom Shelf
Tighten the outer two screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall and
the top cabinet.)
Filler Block
Microwave Oven Top
Equivalent
to Depth
of Cabinet
Recess
Insert 2 self-aligning screws
through outer top cabinet
holes. Turn two full turns on
each screw.
Installation Instructions
ADJUST THE EXHAUST
ADAPTOR
Open the top cabinet and adjust the exhaust adaptor
to connect to the house duct.
Back of
Microwave
For Front-to-Back or
Side-to-Side Adjustment,
Slide the Exhaust Adaptor
as Needed
Blower Plate
Damper
Self-Aligning Screw
5
MOUNT THE MICROWAVE
OVEN
(cont.)
CONNECTING DUCTWORK
1
2
Extend the house duct down to connect to
the exhaust adaptor.
furnance
Seal exhaust duct joints using duct tape
for high temperature applications.
House Duct
C5.
C6.
C7.
EN-23
Install grease filters. See the Use Care
packed with the microwave.
& and
