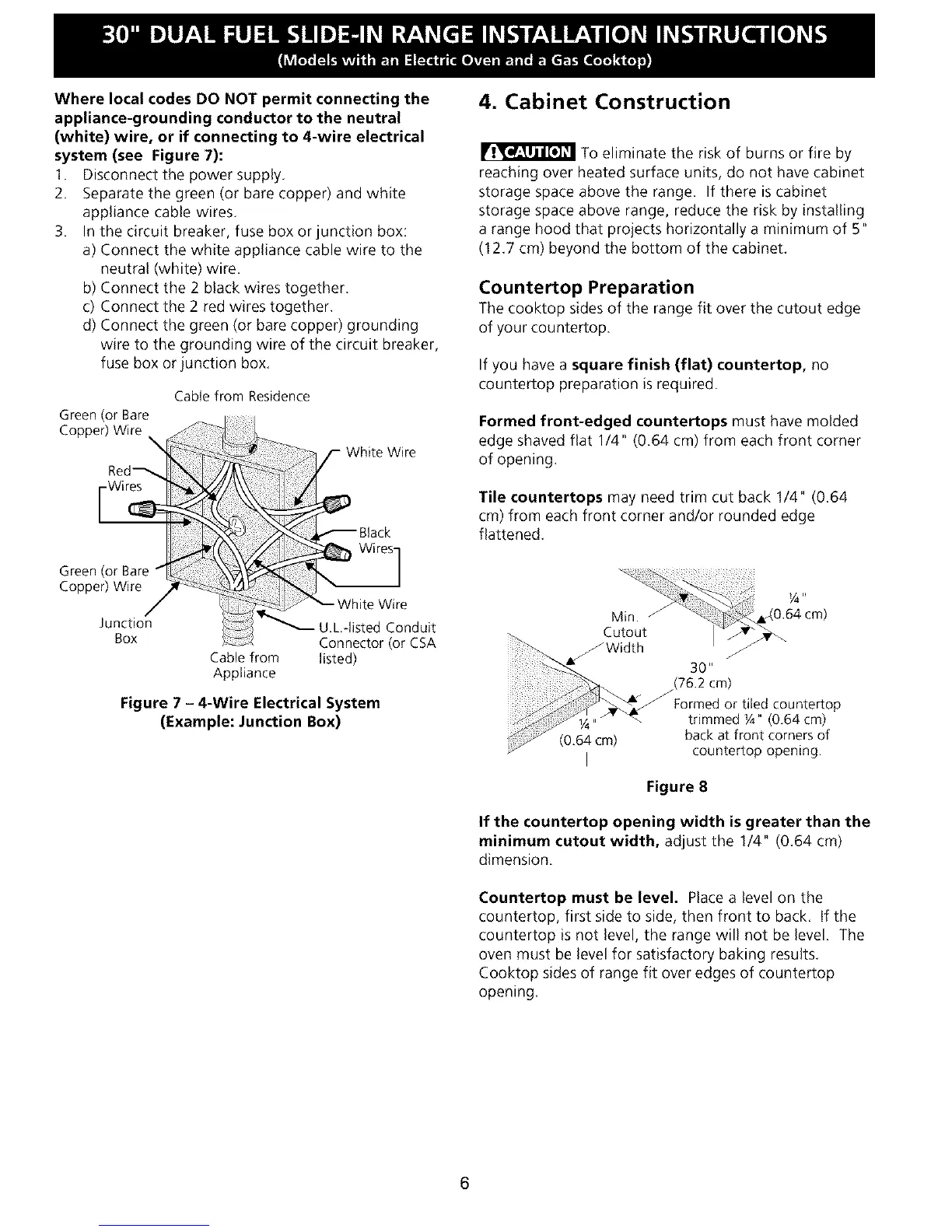

Where local codes DO NOT permit connecting the
appliance-grounding conductor to the neutral
(white) wire, or if connecting to 4-wire electrical
system (see Figure 7):
1. Disconnect the power supply.
2. Separate the green (or bare copper) and white
appliance cable wires.
3. In the circuit breaker, fuse box or junction box:
a) Connect the white appliance cable wire to the
neutral (white) wire.
b) Connect the 2 black wires together.
c) Connect the 2 red wires together.
d) Connect the green (or bare copper) grounding
wire to the grounding wire of the circuit breaker,
fuse box or junction box.
Green (or Bare
Copper) Wire
Red--_,
Wires
Cable from Residence
White Wire
Green (or Bare
Copper) Wire
te Wire
Junction U.Lqisted Conduit
Box Connector (or CSA
Cable from listed)
Appliance
Figure 7 - 4-Wire Electrical System
(Example: Junction Box)
4. Cabinet Construction
To eliminate the risk of burns or fire by
reaching over heated surface units, do not have cabinet
storage space above the range. If there is cabinet
storage space above range, reduce the risk by installing
a range hood that projects horizontally a minimum of 5"
(12.7 cm) beyond the bottom of the cabinet.
Countertop Preparation
The cooktop sides of the range fit over the cutout edge
of your countertop.
If you have a square finish (flat) countertop, no
countertop preparation is required.
Formed front-edged countertops must have molded
edge shaved flat 1/4" (0.64 cm) from each front corner
of opening.
Tile countertops may need trim cut back 1/4" (0.64
cm) from each front corner and/or rounded edge
flattened.
(0.64 cm)
30 _
/.(76.2 cm)
Formedor tiled countertop
trimmed ¼" (0.64 cm)
back at front corners of
countertop opening.
Figure 8
If the countertop opening width is greater than the
minimum cutout width, adjust the 1/4" (0.64 cm)
dimension.
Countertop must be level. Place a level on the
countertop, first side to side, then front to back. If the
countertop is not level, the range will not be level. The
oven must be level for satisfactory baking results.
Cooktop sides of range fit over edges of countertop
opening.
6
