12

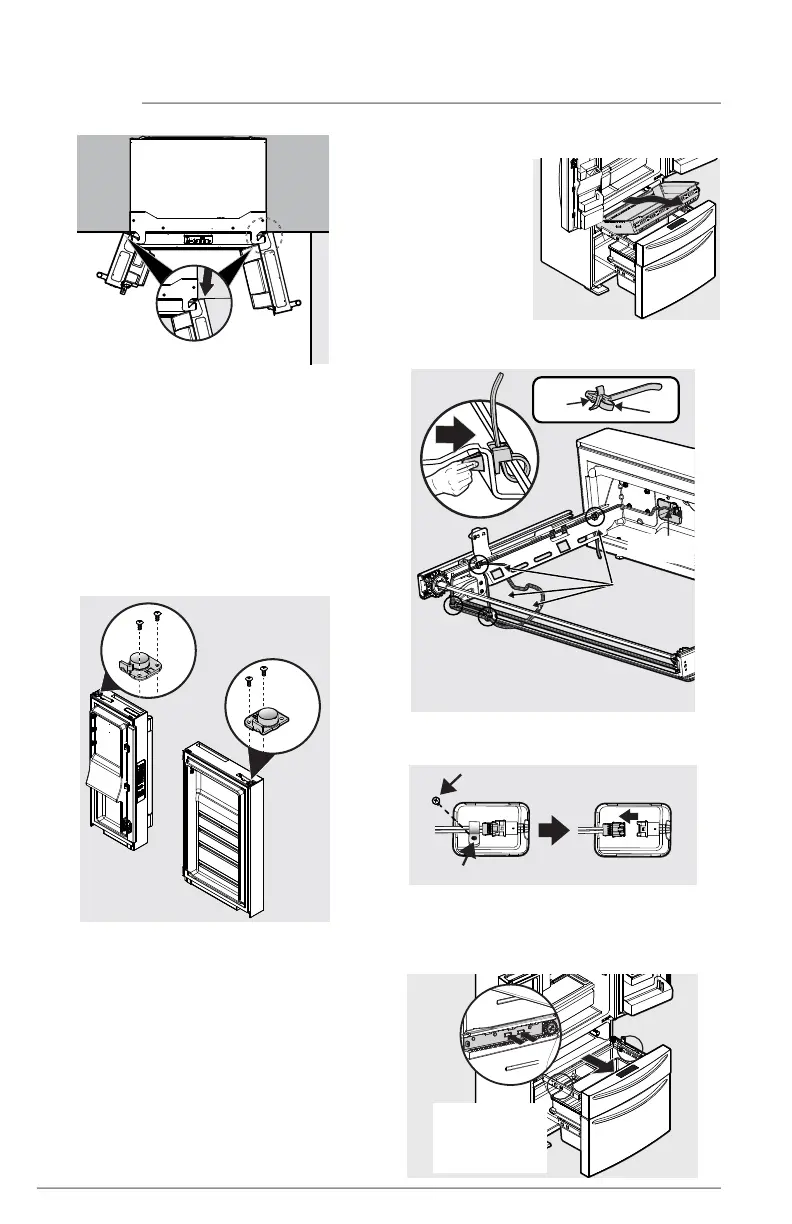

DOOR REMOVAL
Once the doors are removed from the unit,
using the previous steps in “To remove
the refrigerator doors” in the DOOR
REMOVAL section, perform the following
steps to remove and replace the door stop:
1. Turn the refrigerator door upside
down to access the door stop
located in the hinge area of the door.
Door Stopper Removal
2. Remove the 2 screws from the
door stop.
3. Replace the door stop with Optional
Door Opening Angle Feature. Insert
the 2 screws and retighten to secure
the hinge assembly.
4. Repeat the process for the opposite
refrigerator door.
5. Reinstall the doors to the cabinet.
To remove the Custom-Flex
TM
Temp Drawer
1. Fully open
drawer.
2. Remove
basket from
drawer.
3. Unsnap the
4 cable ties
by pressing clip sides together and
pushing through opening.
4. Remove screw and retaining clip and
disconnect the harness
5. Remove drawer by pressing on the
liner clips and slide rail past clips on
both sides to fully remove drawer
from cabinet.
Press the two
tabs on both
sides to release
the sliders
Cable
Tie
Cable
Clip
NOTE: Do Not Remove or Cut
Cable Ties From Wire Harness
(4) Cable
Ties
Retaining
Clip
Harness
Optional Door Opening Angle Feature
Maximum Opening Angle: 105°
To Next Page
