INSTALLATION
3. Ensure both doors are bind-free with
their seals touching the cabinet on all
four sides and that cabinet is stable.
Cabinet Leveling & Refrigerator
Door Alignment (if necessary)
Guidelines for final positioning of refrigerator:
• All four corners of the cabinet must
rest firmly on the floor.
• The front should be slightly elevated
to ensure that doors close and
seal properly.
• Doors should align with each other
and be level.
Most of these conditions can be met by raising
or lowering the adjustable anti-tip legs.

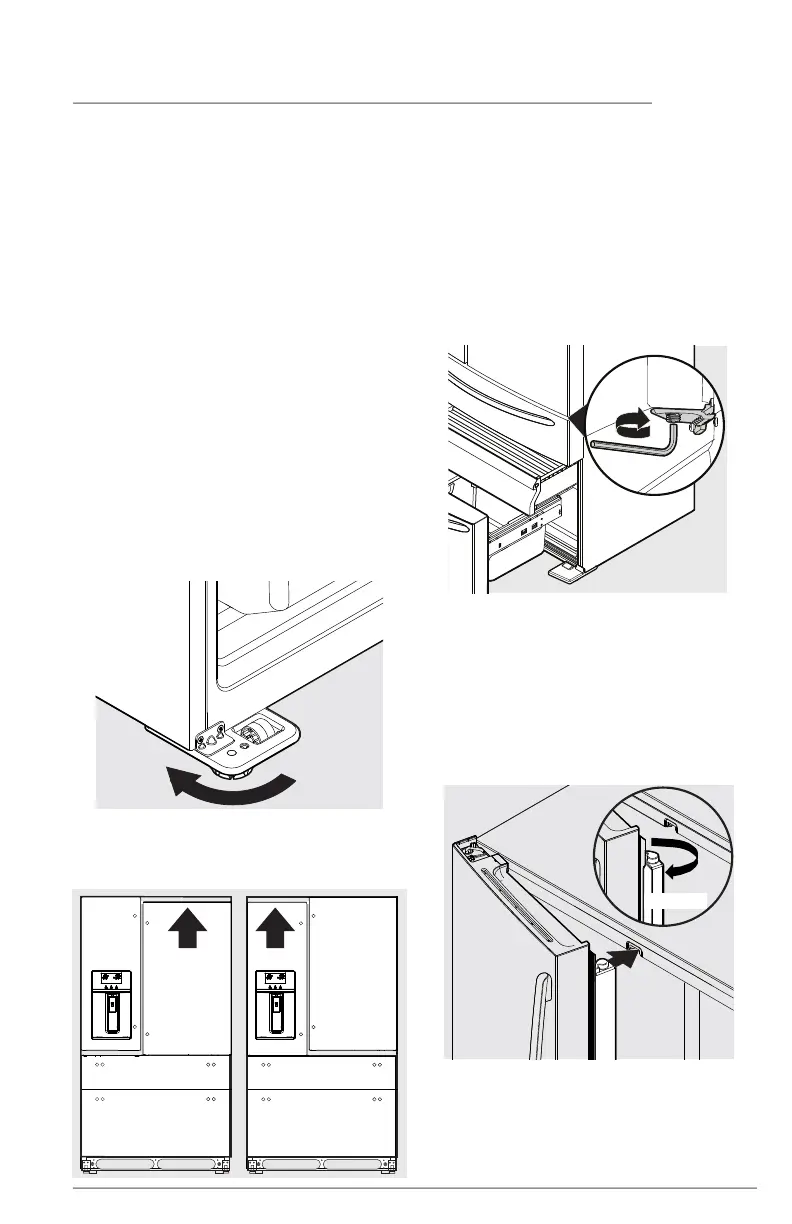

To level the cabinet using the anti-tip legs:
1. Slightly open freezer drawer.
2. Lower anti-tip legs until they are
both touching the floor. Use a pair of
pliers to adjust.
To raise unit: turn leg clockwise.
To lower unit: turn leg counterclockwise.
Raise
Flipper Mullion
Adjust Flipper Mullion for proper
connection with the mullion guide by
ensuring the flipper mullion is folded and
perpendicular to the fresh food door. If
the mullion guide is not in the correct
position, it could prevent the door from
closing completely.
WRONG
Anti-Tip
Legs
Door
Door
Door
Door
To make final door height adjustments:
1. Open Custom-Flex™ Temp drawer to
make lower hinge visible.
2. Insert 6 mm Allen
TM
wrench into the
shaft of the lower hinge.
To lower door: turn adjustment
screw clockwise.
To raise door: turn adjustment
screw counterclockwise.
