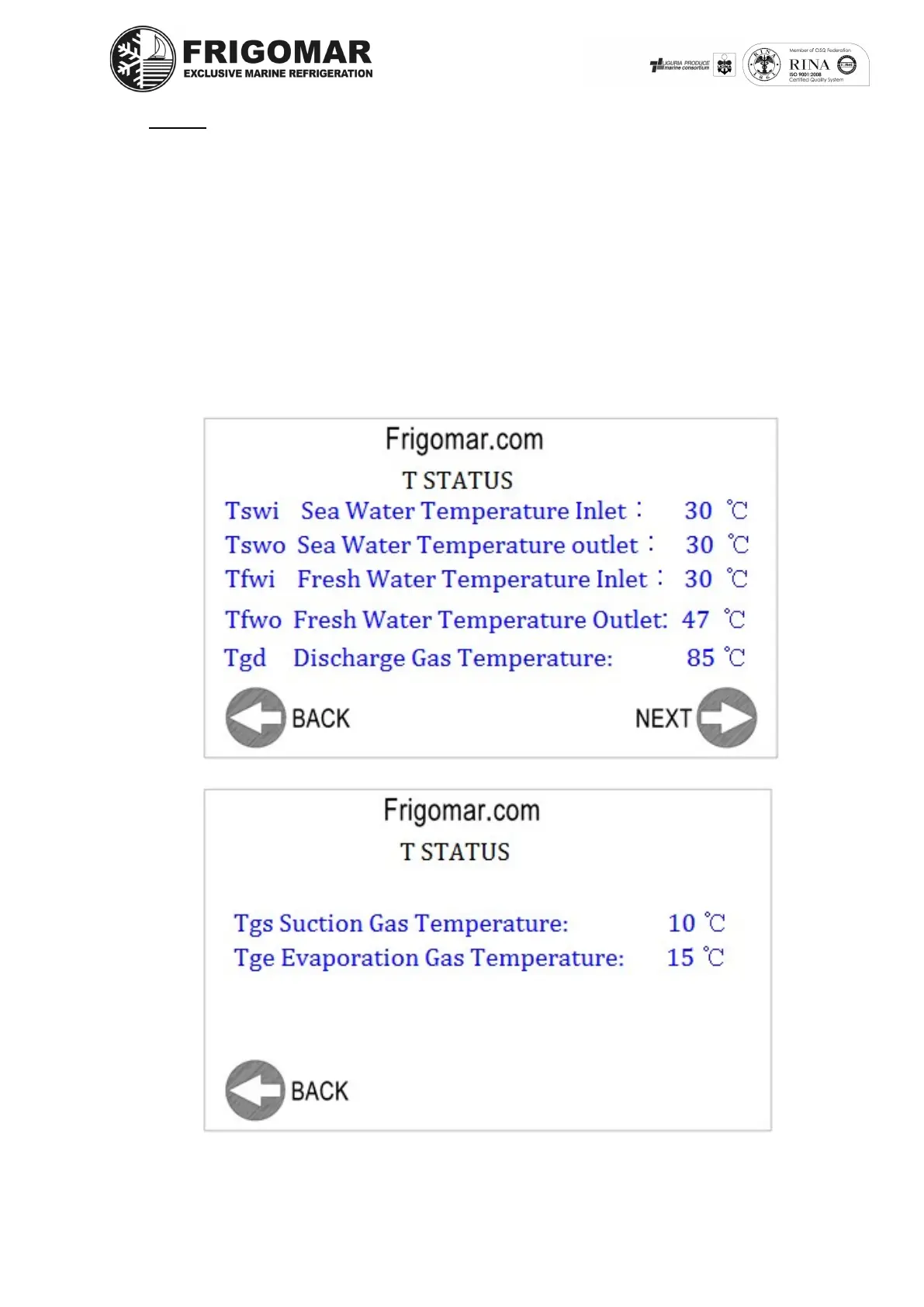

4.3.2 T status:
by touching the symbol we get access to a page where the following parameters are listed:
 Tfwi Fresh water temperature inlet (accuracy 0.1°C);
 Tfwo Fresh water temp. outlet (accuracy 0.1°C);
 Tswi Sea water temperature inlet (accuracy 0.1°C );
 Tswo Sea water temperature outlet (accuracy 0.1°C );
 Tgd discharge gas temperature (accuracy 0.1°C) ;
 Tgs Suction gas temperature (accuracy 0.1°C);
 Tge Evaporation gas temperature (from pressure transducer R410A, or other
future refrigerants) 0-20 bar .
 Tgc Condensing gas temperature (from pressure transducer, if available, for
R410A or other future refrigerants) 0-50 bar
