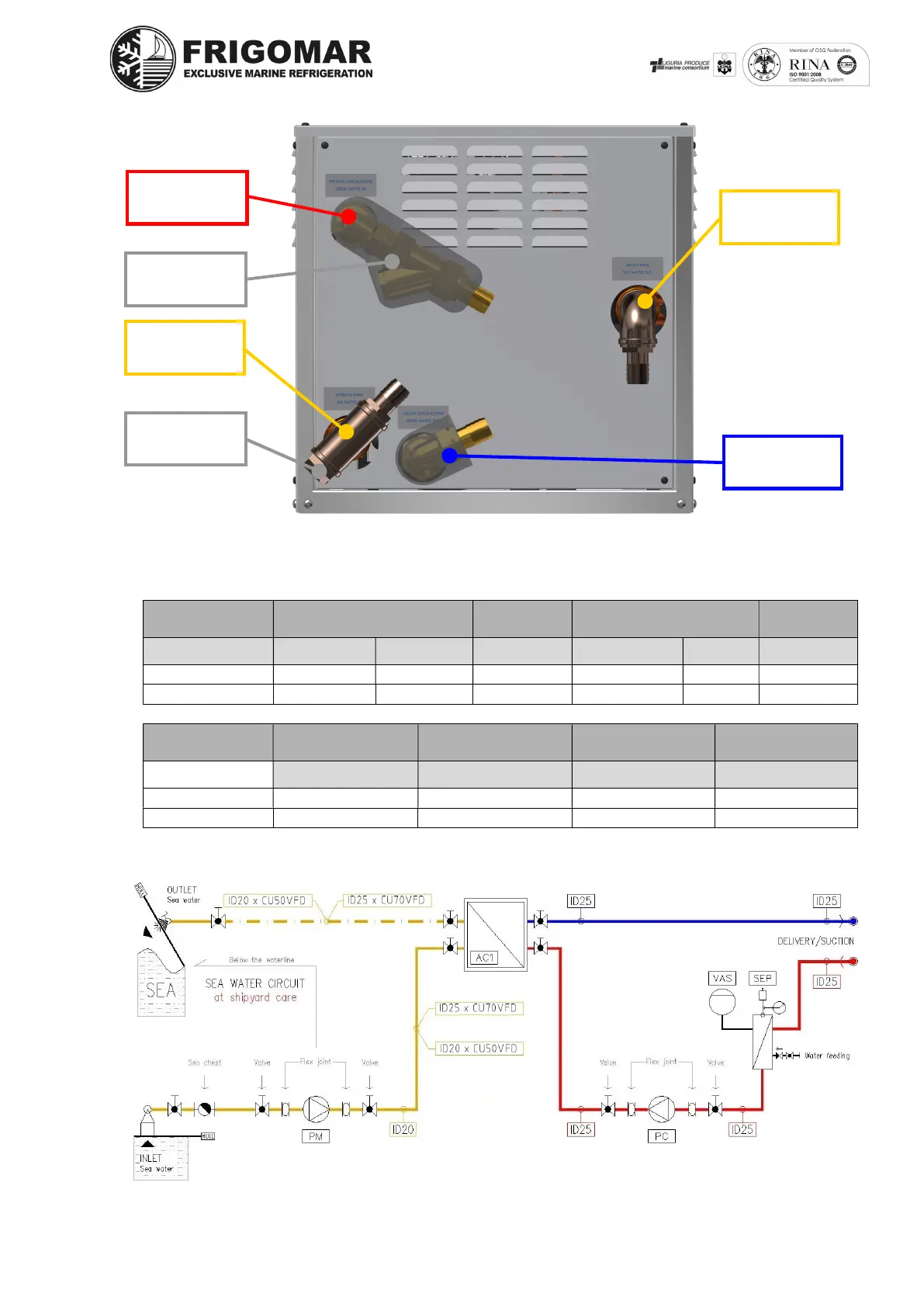

If two or more units are connected in parallel a manifold with balancing valves is required. It is
mandatory when using a manifold to assure the correct water flow to each unit, as follows:
Chiller / Heat Fresh water flow (m3/h) Pipe inner Sea water flow (m3/h) Pipe inner
Pump unit min MAX Ø mm min MAX Ø mm
CU50VFD 1.5 2.5 25 1.2 1.8 20
CU70VFD 2.2 2.5 25 3.3 4.0 25
Chiller / Heat Fresh water flow Pressure drop Sea water flow Pressure drop
(m3/h) Fresh water (kPa) (m3/h) Sea water (kPa)
CU50VFD 1.5 30 1.3 60
CU70VFD 2.2 45 3.3 56
Fresh water
INLET
Fresh water
Filter
Sea water
Zinc anod
Sea water
OUTLET
Fresh water
OUTLET
Sea water
INLET
