Frizzlife MS99 - Step 2: Connect Water Valve and Tubing; Step 3: Connect Filter with Tubings

Model: MS99
Page 5

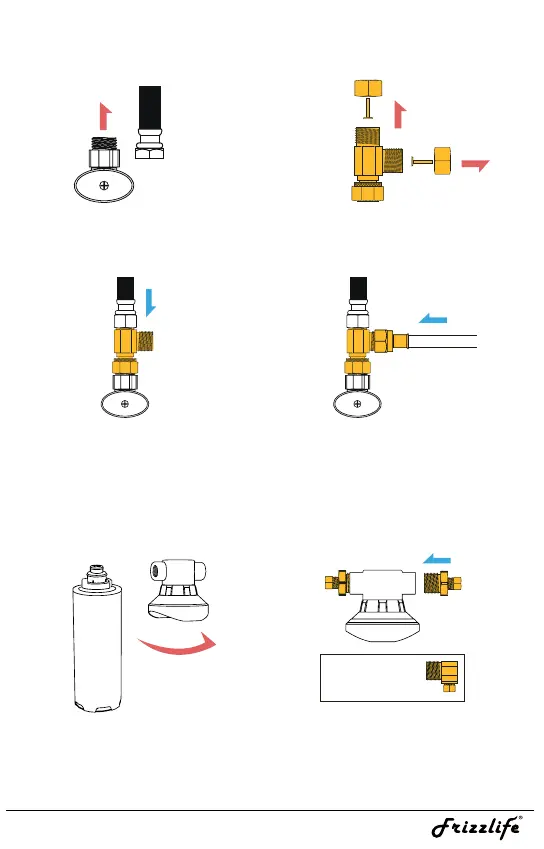

Shut off the water supply disconnect
the cold water line from angle valve.
Twist the Feed Water Valve onto
the angle valve and make sure
O ring is loaded.Connect cold water
line onto the feed water valve.
Twist off the filter cap from the system.
Remove the nuts and compression
inserts from the Feed Water Valve.
Attach the 1/4" PEX tubing
(provided in the package) to the
valve by screwing up the hex nut.
Attach the 1/2" straight fittings on
both of the "supply" &"filtered" side
of the filter cap.
If the space is
too narrow
Step 2: Connect the under sink water valve with hoses
Step 3: Connect the filter with tubings
