INSTALLATION INSTRUCTION
ATTENTION!
All mentioned activities may only be executed under supervision of qualified personnel from the
manufacturer or his representatives!
FOR EVERYTHING IS VALID: IF APPLIED!
Due to shipping requirements, the shaft is usually shipped horizontally and bears on a support
that has been specifically set up for it. Consequently the shaft must be re-positioned when the
machine is installed.

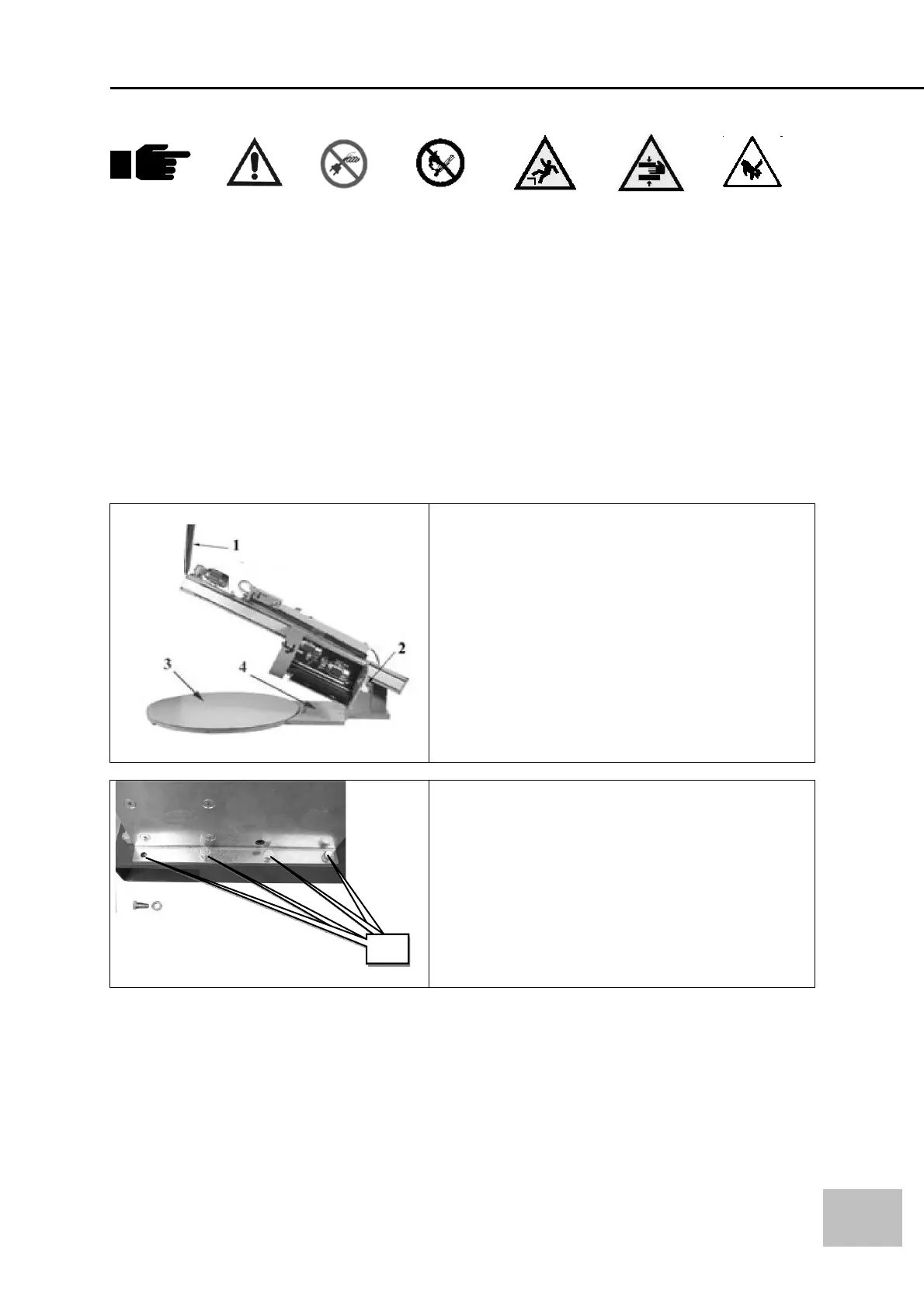

- Upon having located the machine, lift the shaft (Fig. 1) by turning it around the fulcrum shaft
that has been specifically setup and then locate the shaft upright as compared to the turntable
- Secure the shaft vertically to the relative plate with the four screws (3) (Fig. 2)
- Tighten the four stabilizing screws (3) (Figure 2)
Fig. 1
Erect the mast using an overhead gantry or a truck.
Screw an M12 eyebolts on top of the mast (1) (Fig. 1),
where is located the M12 hole treaded.
Attach a strong hoisting (1) (Fig. 1)
Strap (1) to the gantry and lift it slightly so that mast
just leaves its support (4) on the turntable (3).
Fig. 2
Tighten
the four screws (
1
)
(
Fig.2
)
Equipment:
Standard tool size 17 (Bolt M10)
