INSTALLATION INSTRUCTION

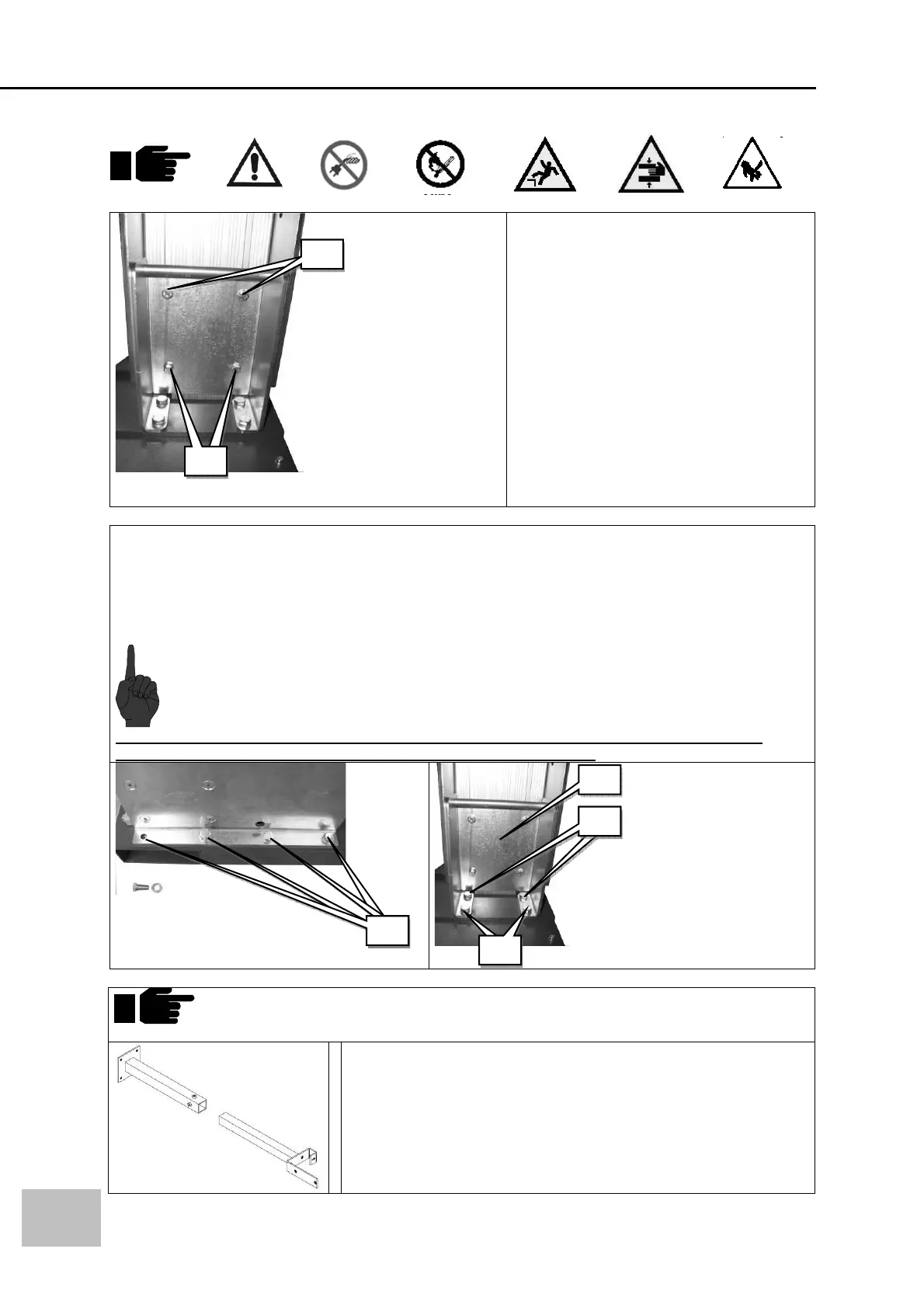

Fig. 3
Tighten
the four screws (
2
)
(
Fig. 3
)
Equipment:
Standard tool size 13 (Bolt M8)
Due to transport, it could be that the corresponding holes
(1) (
Fig. 1
)
, are slightly disorientated
from
the base unit corresponding threads. We advise you to release approx 2mm, the front column
screws (2) (Fig. 4) connecting the hinge bracket (3) (Fig. 5) mounted on the base unit.
Equipment:
Standard tool size 13 (Bolt M8)
Those 4 bolts must never be released unless the column has been placed in transport position
stacked on suitable brackets which can bear the weight. (Horizontally)
Fig. 4
Fig. 5
Install bracket 16.8267 for masts higher than 2.600mm
We strongly recommend, to install this bracket in case you are
utilizing a mast higher than 2.600mm.
This bracket ensures the stability of the machine during the
wrapping process.
1
1
2
2
1111
12
12
3
