INSTALLATION INSTRUCTION
FS4.0128 TOPSHEET DISPENSER

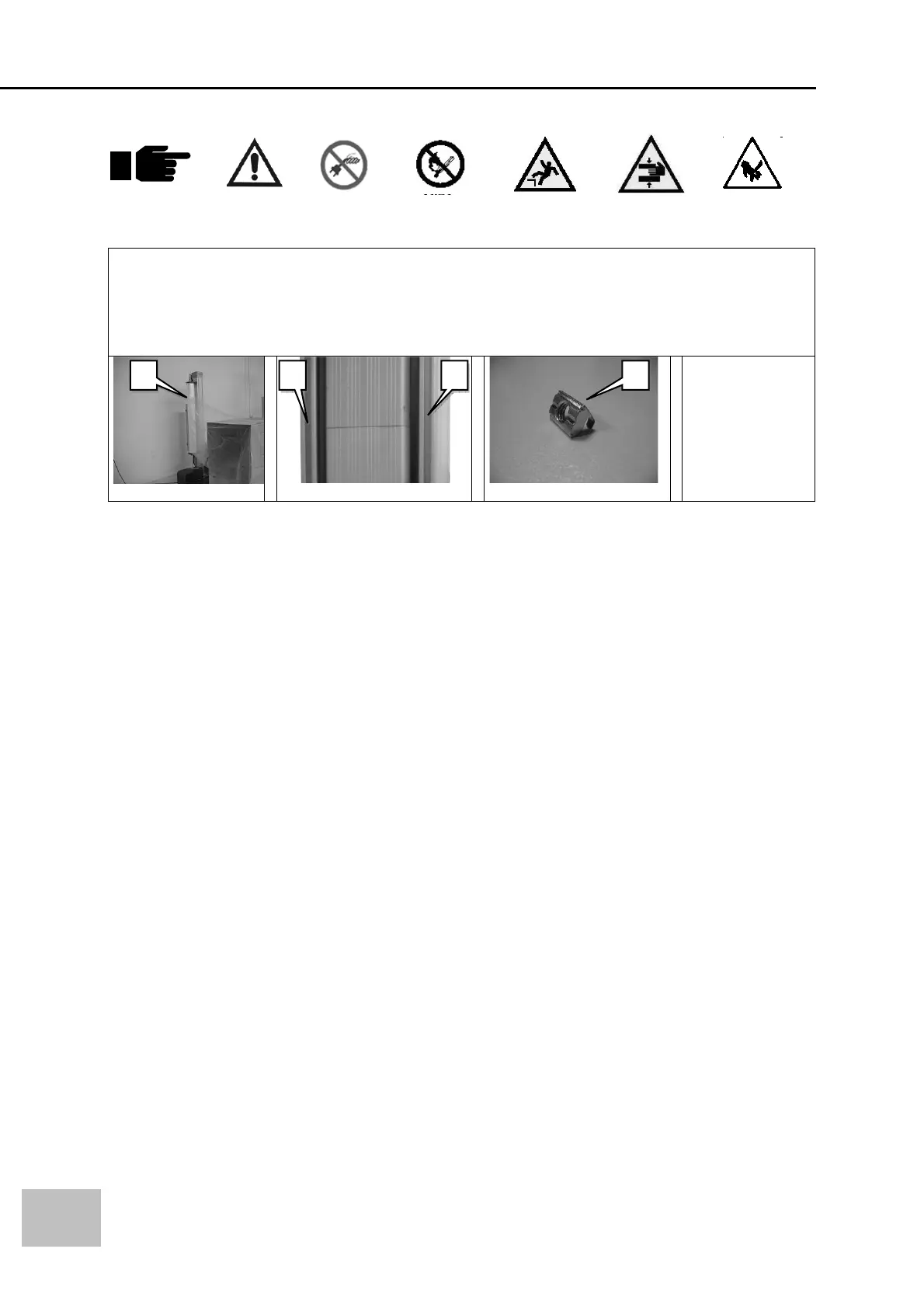

A holder for top-film can be mounted on the machine. (Code FS4.0128). The holder consists of a
bottom and top-plate which are holding firmly the PE film tight.
- Mount the unit on the left side of the colon. Opposite to the carriage side. (Fig. 1)
- Bolts have been pre-inserted in the guides (2 & 3) of the mast. (Fig. 2)
- We advice for the assembly also the insert nut N7.6241 (4x) (4 – Fig. 3)
Fig. 1
Fig. 2 Fig. 3
1
2
3
4
