Front Runner Easy-Out - Awning Bracket Installation: Parts and Tools; Included Components List; Required Tools for Assembly

RRAC029_REV_C01 2 © COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS
7
1
6
7
5
2
4
3
6
1
7
8
9
3
4
5
6
2
1
8
9
10
11
TOOLS NEEDED
1 3 X Mounting Bracket
2 15 X M6 x 16 Hex Bolt
3 15 X M6 x 12 x 1SS Flat Washer
4 15 X M6 Nyloc Nut
5 6 X M6 Nut Cap
6 6 X M8 x 20 Hex Bolt
7 15 X M8 x 16 x 1.6SS Flat Washer
8 15 X M8 Nyloc Nut
9 6 X M8 Nut Cap
10 6 X M8 x 25 Button Head Bolt
11 3 X M8 x 20 Button Head Bolt
IN THE BOX

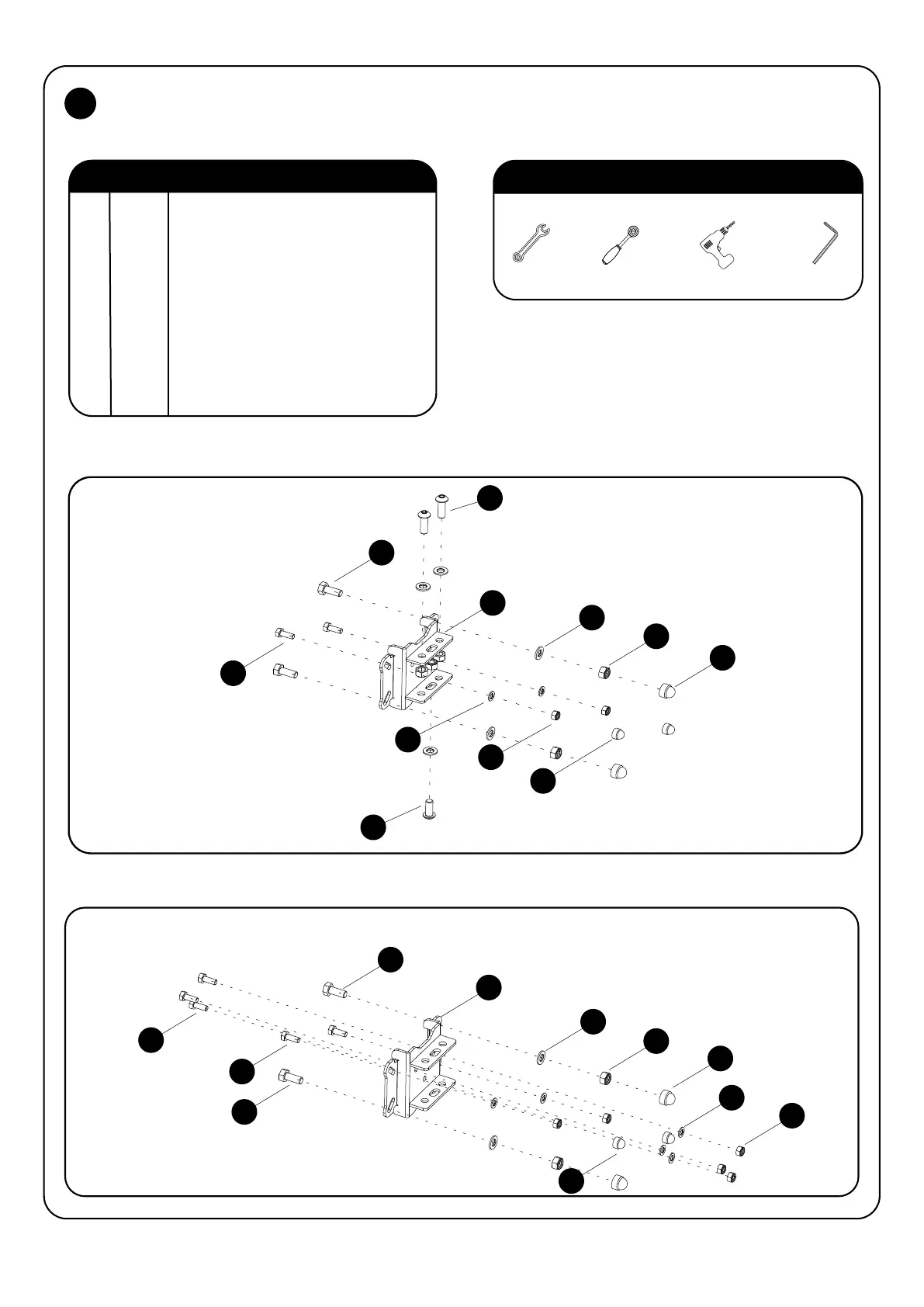

FIGURE 1.1
5mm
6.5mm
13mm
10mm10mm
13mm
GET ORGANIZED1
SLIMLINE II RACK (Steps 2.1 - 2.3)
FIGURE 1.2
SLIMLINE RACK (Steps 3.1 - 3.3)
