Optional Equipment 18
Optional Equipment Con’t.
Outrigger Kit

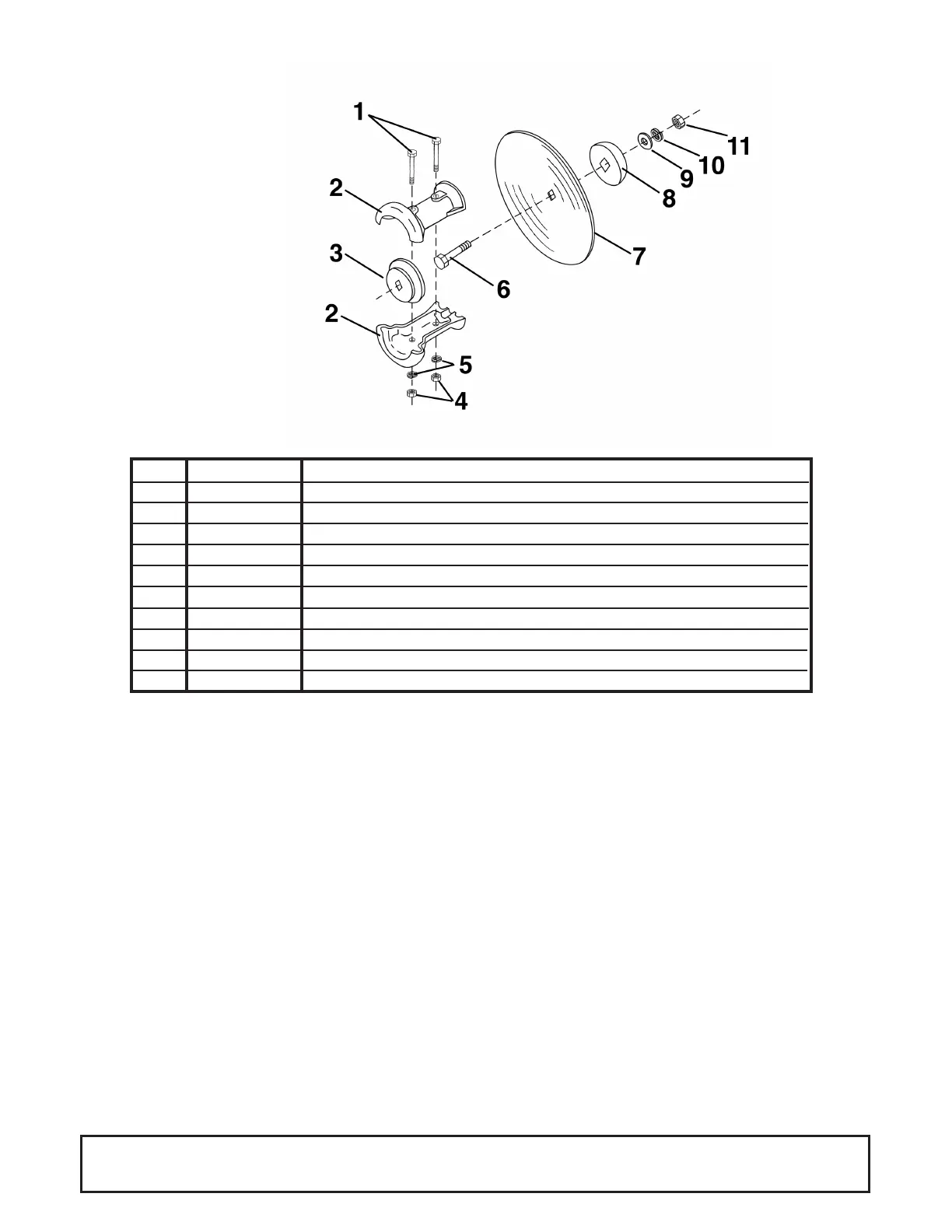

Figure 4
DH13 Series 5TLT70318
(Includes all parts for assembly)
1 5TL12163 HEX BOLT,
1
/2” X 3
1
/2" GR. 5 4
2 5TLTOR2 OUTRIGGER HALF 4
3* 5TLTOR1 OUTRIGGER WASHER, 1 1/8" *Note
4 5TLT26 HEX NUT,
1
/2" 4
5 5TLT25 LOCK WASHER, 1/2" 4
6 5TLT760 HEX BOLT, 3/4" X 3 1/2" GR. 5 2
7 5TL5181381 DISC BLADE, 18" X 1" PLAIN *MS
8 5TLT1 END WASHER, 1 1/8" 2
9 5TLT723 FLAT WASHER,
3
/4" 2
10 5TLT31 LOCK WASHER,
3
/4" 2
11 5TLT27 HEX NUT,
3
/4" 2
Ref.# Part # Description Qty
*Note: Item #3, Part# 5TLTOR1 is not included with this assembly. The 5TLTOR1 is standard
equipment on the rear gangs of the DH13 series.
Outrigger kits only attach to rear gang with out-
rigger washers (ref. #3). Outrigger washers DO
NOT come with kit. They are standard equip-
ment on rear gangs of the DH13 series. To
attach outriggers, remove cast iron end washer
(ref. #8), 3/4" flat washer (ref. #9), 3/4" lock
washer (ref. #10), and 3/4" hex nut (ref. #11)
from 3/4" x 3 1/2" Gr. 5 bolt (ref. #6). Remove
1/2" hex nuts & lock washers (ref. #4 & #5) from
1/2" x 3 1/2" Gr. 5 bolts (ref. #1). Take outrigger
halves (ref. #2) and pull apart wide enough to
clamp over outrigger washer (ref. #3) on gang
assembly. Re-apply the 1/2" hex nuts & lock
washers (ref. #4 & #5) to 1/2" x 3 1/2" Gr. 5 bolt
(ref. #1) and tighten. Make sure the 3/4" x 3
1/2" Gr. 5 bolt (ref. #6) is pulled out as far as
possible before tightening. Once tightened,
apply the outrigger disc blade (ref. #7) on the
3/4" x 3 1/2" Gr. 5 bolt (ref. #6), followed by the
cast iron end washer (ref. #8), 3/4" flat washer
(ref. #9), 3/4" lock washer (ref. #10), and 3/4"
hex nut (ref. #11). Tighten and outrigger is
ready for operation.
*NOTE- DH13 models use 18"outrigger
blades.
*NOTE- Retighten all fasteners after first oper-
ational use.
Outrigger Kit Mounting Instructions
