Frontier LS2004 - Installation

5CS2004OM (rev 00 07/2020) 13Installation
Sprayer Installation
Installing Ballast
CAUTION: Avoid Injury! Machine can
become unstable when operating with
attachment. Ballast is required when
the attachment is installed.
Compact Utility Tractors
See Specification Section for implement code
and refer to Ballasting Machine in your tractor
operator’s manual to determine the number of
front weights required to ballast the tractor.
Attaching the Sprayer to Tractor
1. Park machine safely. (See Park Machine
Safely in Safety section)
2. Lower tractor lift link to lowest position.
3. Mount sprayer on 3-point hitch.
4. Remove harness from retention bracket and
connect to the free end of switch harness.
Attaching the Sprayer to Tractor with
iMatch - Quick Hitch
1. Connect iMatch – Quick Hitch to tractor
first following the iMatch – Quick Hitch
installation instructions.
2. Install bushing set (sold separately), John
Deere Part Number BW15056 or equivalent,
to lower draft pins and top link pin on
sprayer.
3. Lower the tractor’s 3-pt hitch aligning the
center hook of the iMatch – Quick Hitch just
below the top link pin on the sprayer.
4. Ensure all three connection points are
aligned.
5. Raise tractor’s 3-pt hitch ensuring lower
draft pins and top link are fully engaged with
iMatch – Quick Hitch.
6. Close both levers on iMatch – Quick Hitch
to lock lower draft pins in place. Levers
are closed when they are folded down
(horizontal position).
Removing and Storing Sprayer
Removing Sprayer from Tractor
CAUTION: Avoid Injury! When the
attachment is removed, also remove
any ballast that was added to the
machine.
1. Park machine safely. (See Park Machine
Safely in Safety section)
2. Empty the sprayer tank.
3. Lower the sprayer to the ground.

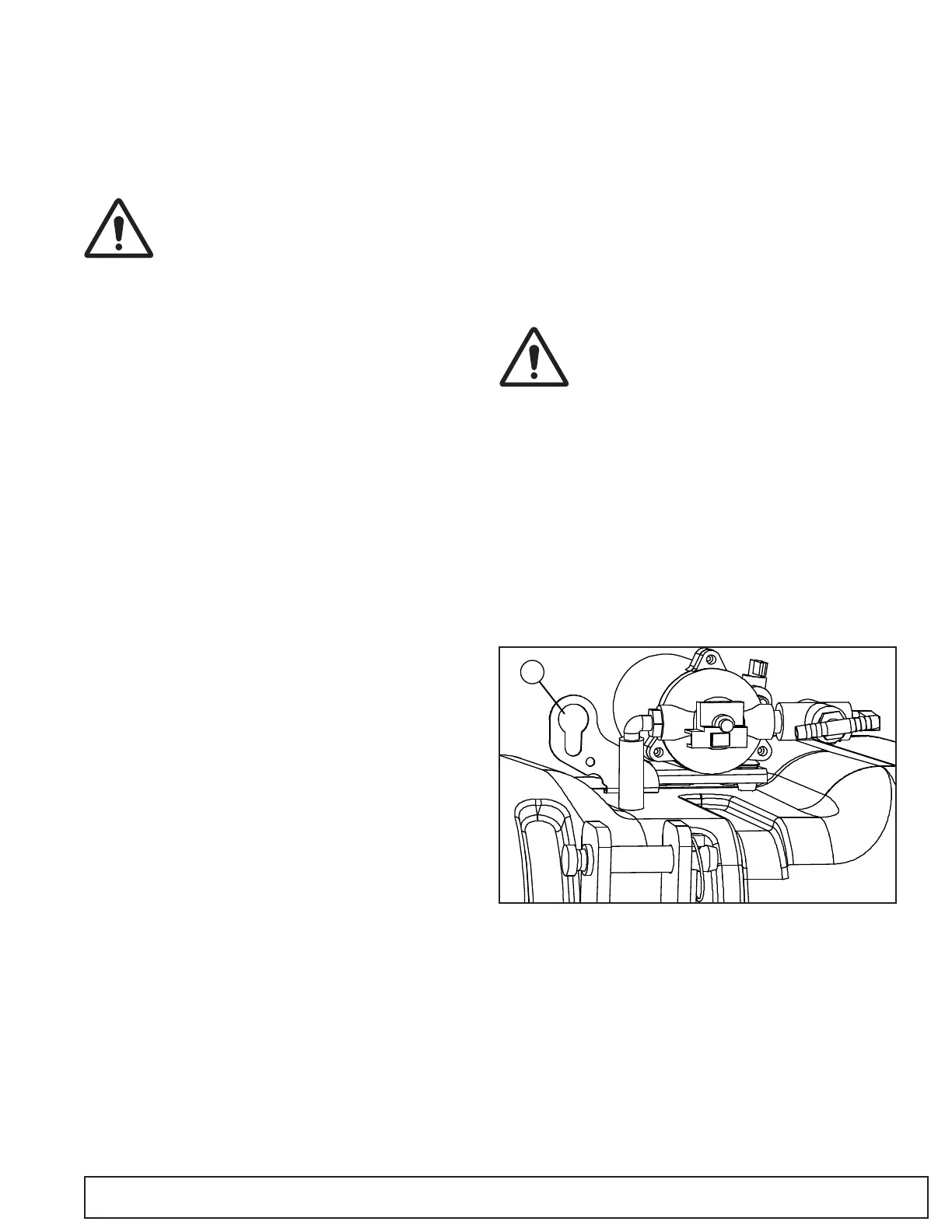

4. Disconnect wiring harness from switch
harness, install connector cap and store
harness by placing free end into harness
retention bracket slot (A).
5. Disconnect sprayer from the 3-point hitch.
6. Remove any added ballast from Tractor.
INSTALLATION
A
