5CS2004OM (rev 00 07/2020) 21Service
6. Install the screen (D) into the nozzle socket
on the boom.
7. Install nozzle assembly on the nozzle
socket.
A
B
E
D
C
F

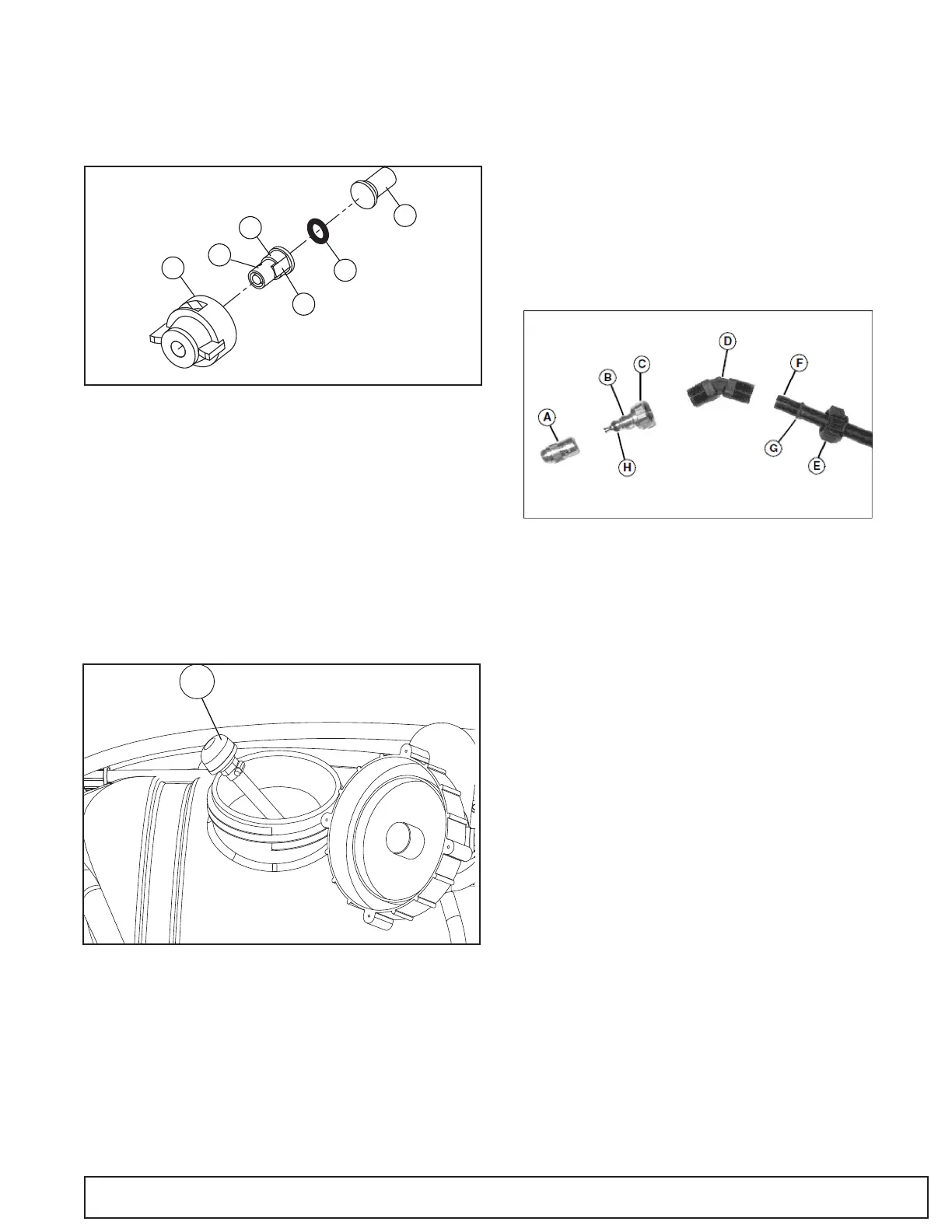

Cleaning Pump Suction Screen
1. Remove tank cover.
2. Locate suction screen (A) inside sprayer
tank.
3. If necessary, unscrew suction screen, and
clean with liquid detergent and warm water.
4. If suction screen was removed, install
on suction hose and position in lowest
depression inside tank.
5. Install and tighten tank cover.
Cleaning the Spray Wand Nozzle
1. Unscrew nozzle (A) from the spray tip (B).
2. Loosen nut (C), and remove the spray tip
(B) from the angled fitting (D).
3. Loosen the locknut (E), and remove the
angled fitting (D) from the handgun (F).
4. Wash nozzle (A), spray tip (C) and angled
fitting (D) with liquid detergent and warm
water.
5. Inspect O-rings (G and H). Replace as
needed.
6. Install angled fitting (D) on handgun (F), and
tighten locknut (E).
7. Slide nut (B) over the spray tip (C), and
install on angled fitting (D).
8. Install nozzle (A) on spray tip (C).
Quality Service
Frontier Quality Continues with Quality
Service
Frontier provides a process to handle your
questions or problems, should they arise, to
ensure that product quality continues with your
Frontier dealer’s parts and service support.
Follow the steps below to get answers to any
questions you may have about your product.
1. Refer to the appropriate attachment,
machine or equipment operator’s manuals.
2. Contact your Frontier dealer with
unanswered questions.
