Frontier LS2006 - Page 36

5CS2006OM (rev 00 07/2020) 36 Parts Diagrams
10
10
10
1
2
1
17
13
17
6
16
15
18
8
11
9
11
10
10
3
6
7
5
3
11
11
12
10
8
14
15
18
10
21
21
19
19
20
21
21
4
4

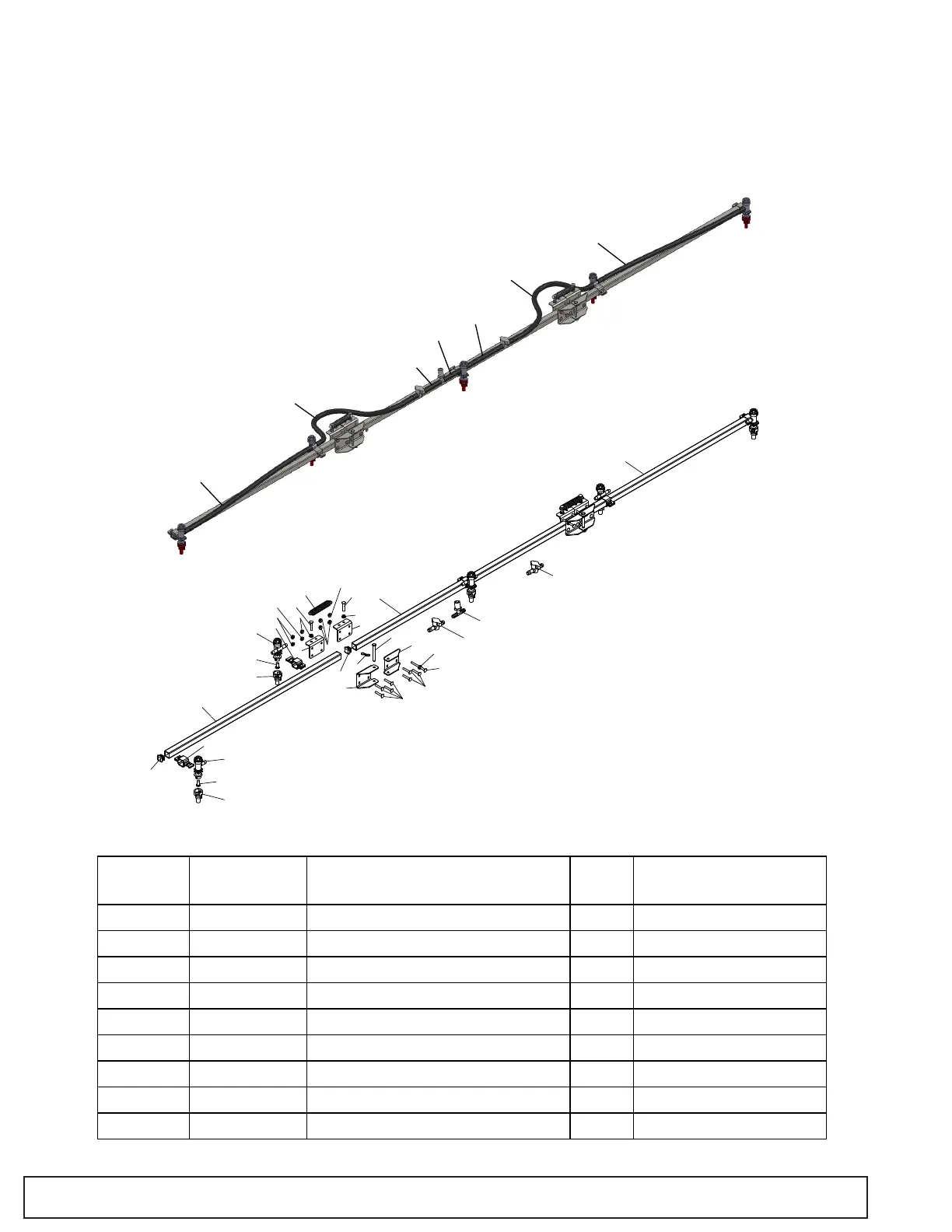

12.5' Folding Boom
ITEM NO.
PART
NUMBER
DESCRIPTION QTY. Note
1 5CS60085 Side Boom Tube 37” 2
2 5CS60083 Center Boom Tube 48” 1
3 5CS43849 Boom Hinge Bracket 4
4 5CS43389 Boom Hinge Backing Plate 4
5 5CS43402 5/16” x 3” Clevin Pin 2
6 5CS43401 Plastic End Cap 1” 6
7 5CS43624 Small Bowtie Clip 2
8 5CS43598 Square Tube Clamp 1” 5
9 5CS43403 Spring 3/4” x 3-3/4” x .105 2
