Parts 19
5WPMAN0148 (Rev. 5/16/2008)
RB1172, RB1184, RB1196 PARTS LIST
REF
NO
PART
NO
QTY
RB1172
QTY
RB1184
QTY
RB1196
DESCRIPTION
1 5WP1026709 1 1 1 A-Frame with decals
2 5WPHBL228 1 1 1 Pin, Clevis 1.00 x 5.00
3 5WP216241 1 1 1 Bolt, HH 1 In NC x 7 GR8
4 * 4 4 4 Washer, Flat 1 In Standard
6 5WP34279 2 2 2 Nut, Lock 1 In NC
8 5WP27542 4 4 4 Pin, Klik 7/16 x 2
9 5WPHBL233 2 2 2 Pin, Headless .88 x 6.94
10 5WPHBL225 3 3 3 Pin, Clevis 1.00 x 2.60
11 * 1 1 1 Pin, Safety 3/16
12 5WPHBL222 1 1 1 Link, Male
13 5WPHBL223 1 1 1 Link, Female
14 5WPHBL227 1 1 1 Pin, Bent .75 x 3.50
15 5WPHBL226 2 2 2 Pin, Bent 1.00 x 2.50
16 5WP1026708 1 1 1 Tilt Turntable with decals
17 5WP57817 4 4 4 Washer, Flat 5/8 SAE Hardened
18 5WP300461 4 4 4 Screw, HHCS 5/8 NF x 1-1/2 GR5
19 5WP53500 1 1 1 Plate, Retainer
20 5WP1026707 1 - - RB1172 Moldboard with decals
20 5WP1026706 - 1 - RB1184 Moldboard with decals
20 5WP1026705 - - 1 RB1196 Moldboard with decals
21 5WP26920 6 7 8 Bolt, Plow 5/8 NC x 1-3/4
22 * 6 7 8 Nut, Lock 5/8 NC
23 5WPFA503 1 1 1 Screw, HHCS 1 NC x 3 GR8
24 5WPHBL210 1 1 1 Frame Tube Assembly
25 5WP25258 1 - - Cutting Edge, 72 In (12" bolt centers)
25 5WP46440 - 1 - Cutting Edge, 84 In (12" bolt centers)
25 5WP25270 - - 1 Cutting Edge, 96 In (12" bolt centers)
26 5WP56598 2 2 2 Sleeve, .88 x 1.13 x 2.62
27 5WP1002955 1 1 1 Decal Set, Safety RB1172/84/96
28 5WP55011 1 1 1 Stand Assembly
29 5WP33000 1 1 1 Pin, Lynch 3/8 x 2-1/4
30 5WP1002956 1 1 1 Decal Set, Complete RB1172/84/96
* Standard hardware; obtain locally

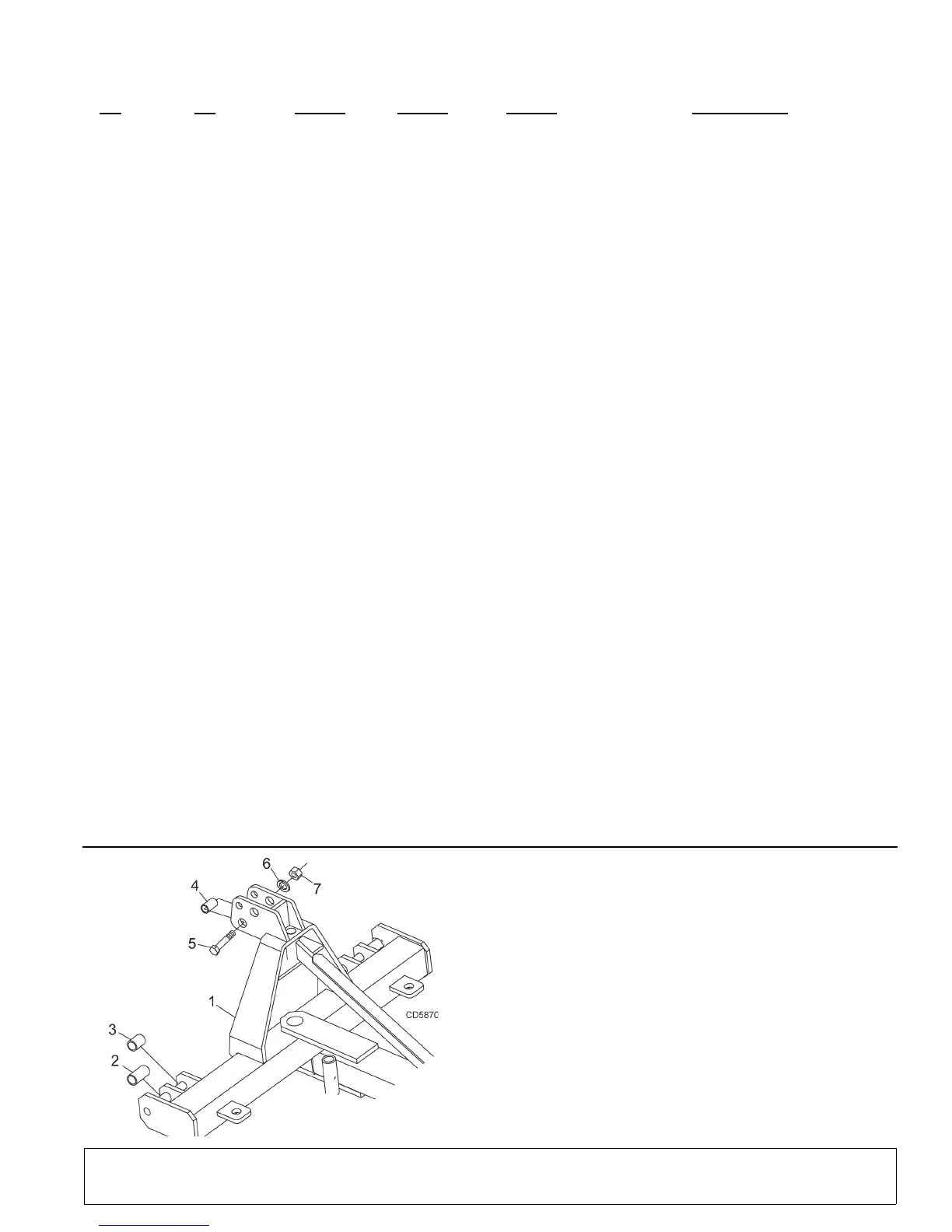

QUICK HITCH BUSHING KIT 5WP1002011
(OPTIONAL)
REF PART QTY DESCRIPTION
1 ---------------- 1 A-Frame Assembly
2 5WP1002012 2 Sleeve, .94 x 1.44 x 2.75 Cat 2
3 5WP1002013 2 Sleeve, .94 x 1.44 x 2.19 Cat 1
4 5WP1002014 1 Sleeve, 1.0 x 1.25 x 2.06
5 * 1 1.0 NC x 5.0 Cap Screw GR5
6 * 1 1.0 Lock Washer
7 * 1 1.0 NC Hex Nut
* Standard hardware; obtain locally
(Rev. 2/16/2009)
