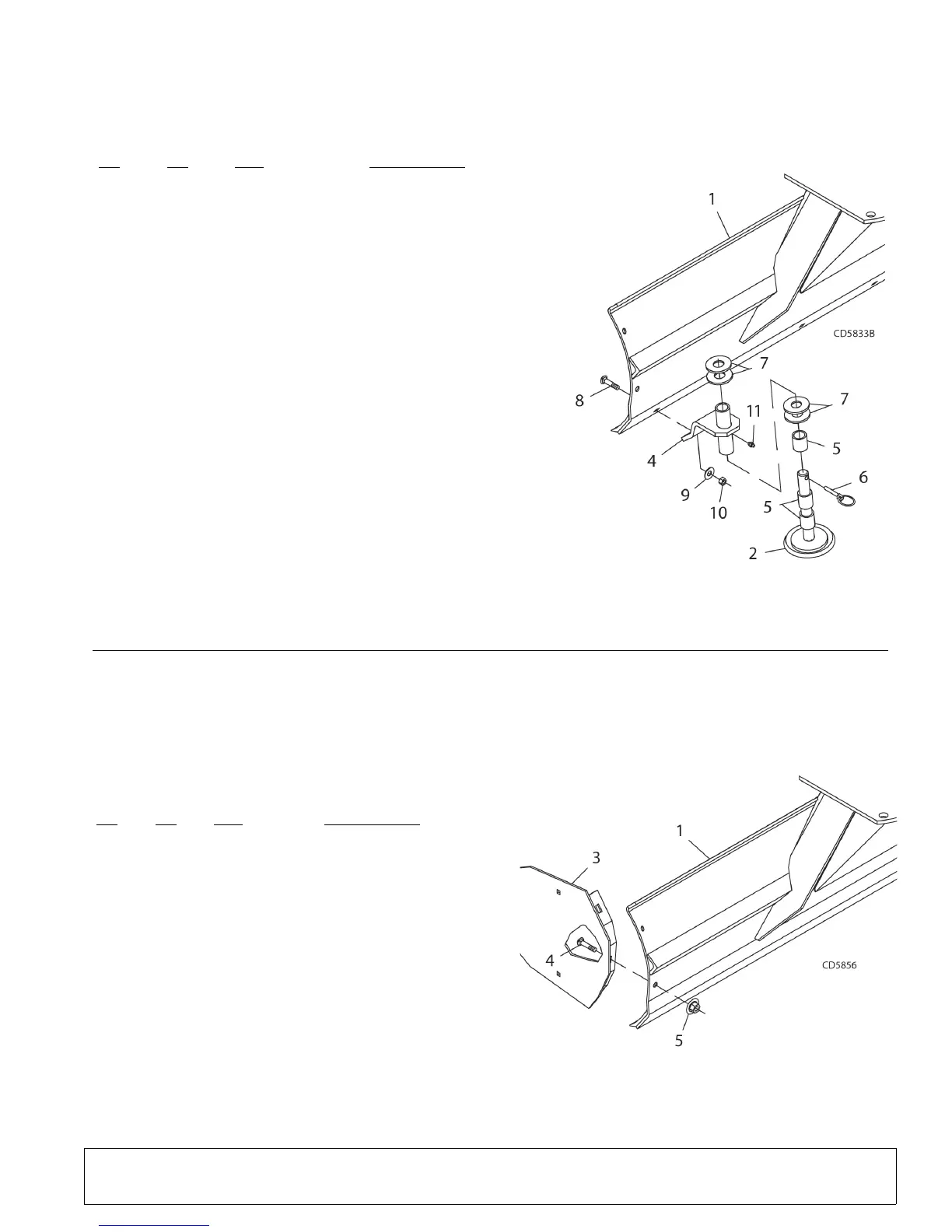

SKID SHOE ASSEMBLY 5WP18300
(OPTIONAL)
REF
NO
PART
NO
QTY DESCRIPTION
1 ------------ 1 Moldboard Assembly
2 5WP27586 2 Skid & Shaft Assembly
3 5WP27592 1 Bracket, Skid Shoe Right (not shown)
(earlier model grease fitting located above
plate) -or-
3 5WP1005328 1 Bracket, Skid Shoe Right (not shown)
4 5WP27593 1 Bracket, Skid Shoe Left (earlier model
grease fitting located above plate) -or-
4 5WP1005329 1 Bracket, Skid Shoe Left
5 5WP52854 6 Sleeve, 1.28 x 1.66 x .75
6 5WP27542 2 Pin, Klik 7/16 x 2
7 * 8 Washer, Flat 1-1/4 Standard
8 5WP26169 2 Bolt, Plow 5/8 NC x 2-1/2 GR5
9 * 2 Washer, Flat 5/8 Standard
10 * 2 Nut, Lock 5/8 NC
11 * 2 Grease Fitting, 1/4 -28 Tapered Thread
* Standard hardware; obtain locally
END PLATE KIT 5WP1001531
(OPTIONAL)
REF
NO
PART
NO
QTY DESCRIPTION
1 ** 1 Moldboard Assembly
2 ** 1 End Plate, Right (not shown)
3 ** 1 End Plate, Left
4 * 4 Bolt, Carriage 1/2 NC x 1-1/4 GR5
5 5WP11900 4 Nut, Flange Lock 1/2 NC
* Standard hardware; obtain locally
