Ref# Description Part# Ref# Description Part#
1 Belt Shield 5PQ902025 24 Nut, 1/2 5PQ000940
2 Owner’s Manual Canister 5PQ503050 25 Lock Washer, 1/2 5PQ000840
2a Operator’s/Parts Manual 5PQ990102 26 Complete PTO Shaft 5PQ900139
3 Insert Bearing 5PQ900150 27 PTO Shaft Cradle 5PQ900862
4 Idler Roller 5PQ902023 28 Lift Arm Pin w/ Nut & Washer 5PQ900110
5 Nut, 3/8 5PQ000915 29 Quick Hitch Bushing, 1” OD 5PQ903145
6 Locknut, 3/8 5PQ003000 30 Quick Hitch Bushing, 1.25” OD 5PQ903146
7 Flatwasher, 3/8 5PQ001035 31 Lynch Pin 5PQ500219
8 Bolt, 3/8 x 1-1/4 5PQ000275 32 Lock Washer, 3/8 5PQ000820
9 Bolt, 5/8 x 4-1/2 5PQ000645 33 Nut, 3/8 5PQ000915
10 Flatwasher, 5/8 5PQ001075 34 Rubber T-Handle 5PQ400092
11 Eye Bolt, 3/8 x 3-1/4 5PQ902001 35 Flatwasher, 5/16 5PQ001030
12 PTO Guard 5PQ900857 36 Nut, 5/16 5PQ000910
13 Hitch Pin 5PQ903143 37 SMV Triangle 5PQ507166
14 Lock Washer, 7/8 N/A 38 SMV Mounting Bracket 5PQ900861
15 Jam Nut, 7/8 N/A 39 Jack Shaft Shield 5PQ900019
16 Pulley, 12” 3-Groove 5PQ900113 40 Flatwasher, 3/8 5PQ001035
17 Pulley Bushing w/ Bolts 5PQ900115 41 Bolt, 3/8 x 1 5PQ000270
18 Lock Washer, 5/16 N/A 42 Bolt, 1/2 x 2 5PQ000452
19 Bolt, 5/16 x 2 N/A 43 Flatwasher, 1/2 5PQ001055
20 Flange Bearing, 1-1/4 5PQ900112 44 Tension Spring 5PQ900162
21 Jack Shaft 5PQ900041 45 Locknut, 5/8 5PQ000972
22 Key, 3/8 x 3/8 x 2 5PQ400857 46 Idler Arm 5PQ902024
23 Key, 1/4 x 1/4 x 2 5PQ400587

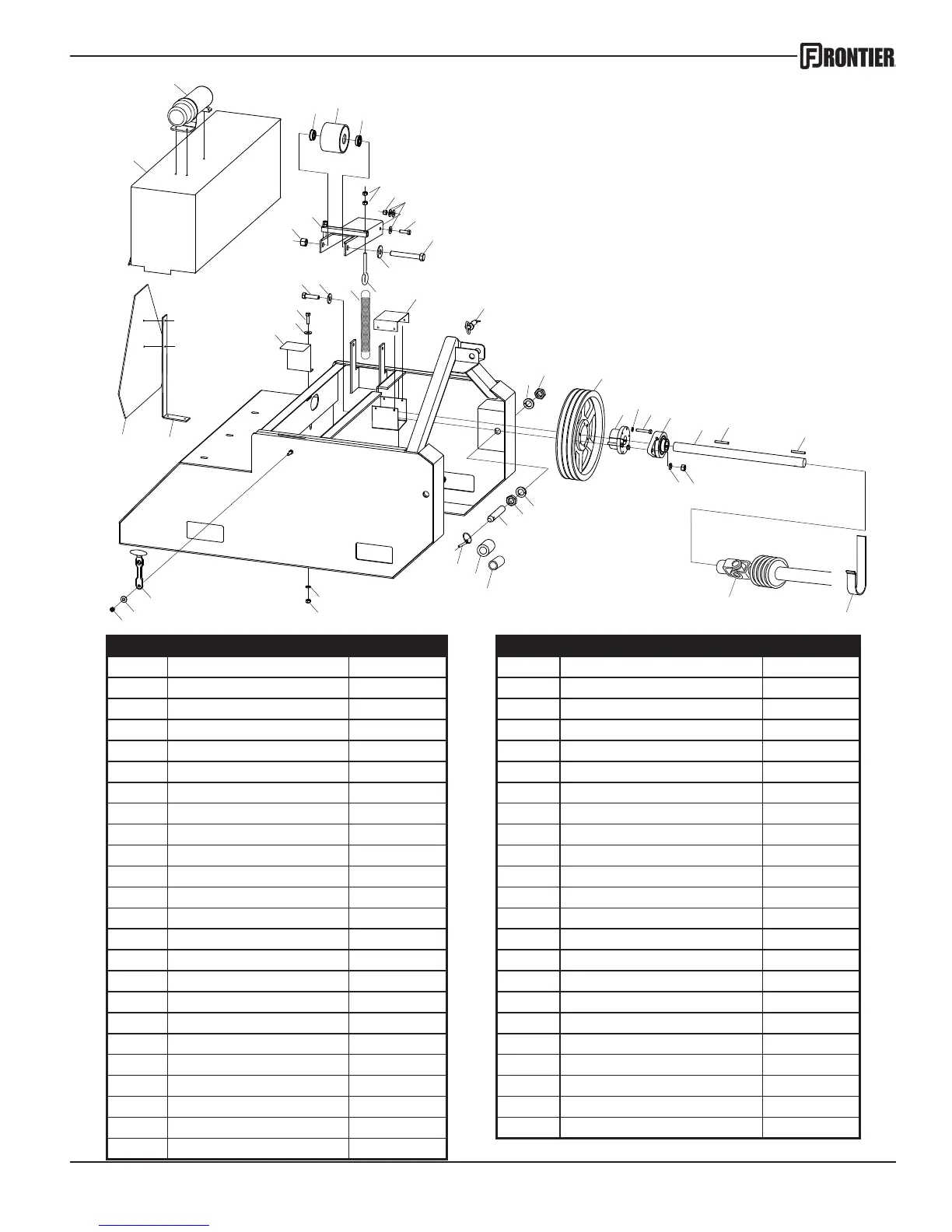

WC1105 Base Assembly
