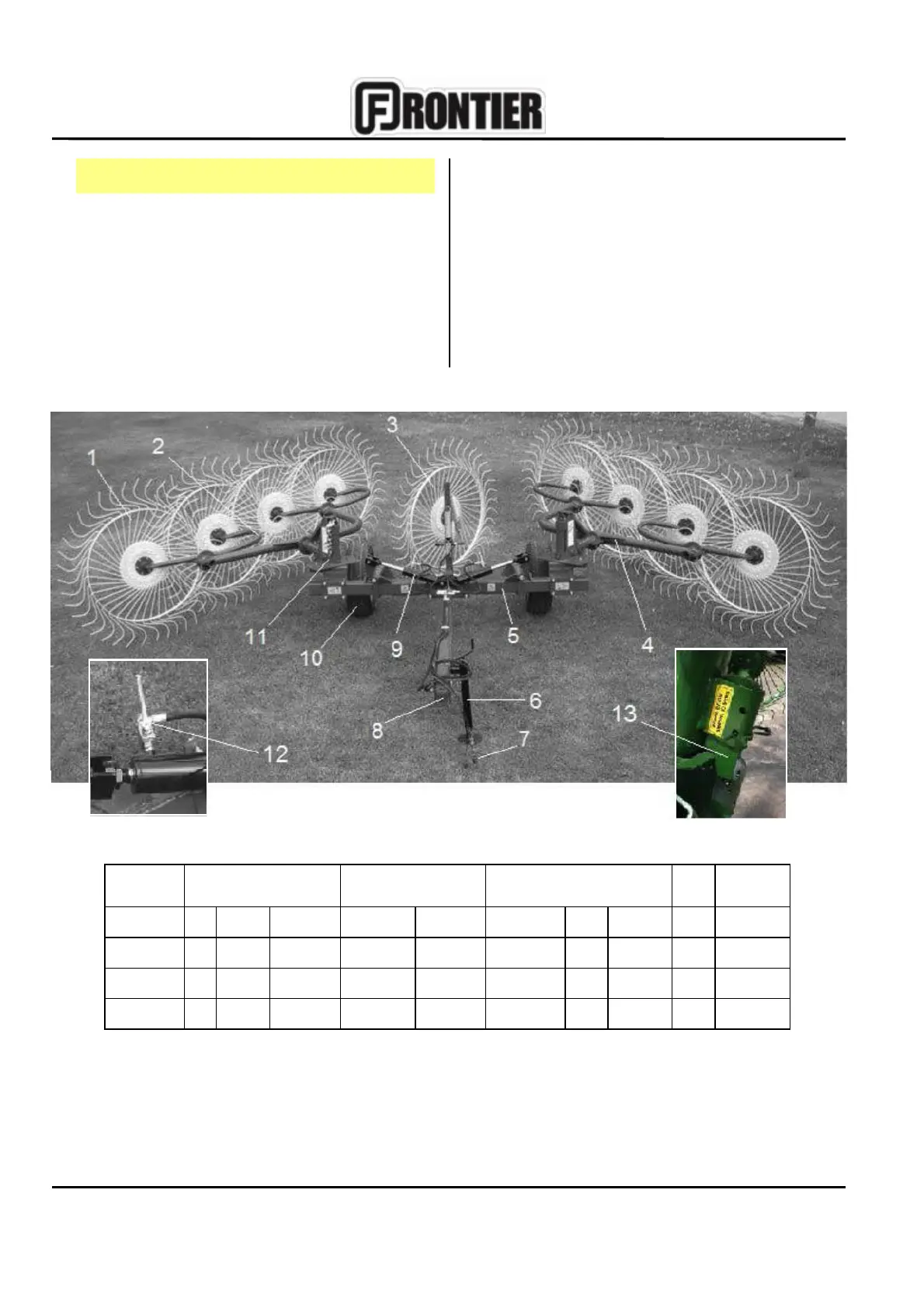

A.3 Main components and technical data
1. Toothed wheel
2. Arm with hubs
3. Additional center wheel (kicker wheel)
4. Arm support
5. Fixed frame
6. Bearing jack
7. Hydraulic quick couplings
8. Tractor hitch
9. Hydraulic cylinder for folding the side units
10. Tire
11. Moveable frame
12. Hydraulic valve
13. Frame locking bracket
Model Wheels Width Tires HP Weight
N° Teeth Ø cm / ft
Work
cm / ft
Transport
cm / ft
Type N°
Pressure
psi / bar
Kg / Lbs
WR0008 8 40 140 / 55” 540 / 17” 8’ 250 / 8” 2’ 205/70 R 15 2 43.5 / 3 30 600 / 1324
WR0010 10 40 140 / 55” 640 / 21” 250 / 8” 2’ 205/70 R 15 2 43.5 / 3 30 667 / 1470
WR0012 12 40 140 / 55” 740 / 24” 5’ 250 / 8” 2’ 205/70 R 15 2 43.5 / 3 30 737 / 1624
