Instruction Manual
BUILT TO LAST | MANUFACTURED TO COMPLY | DESIGNED TO PROTECT
1
13

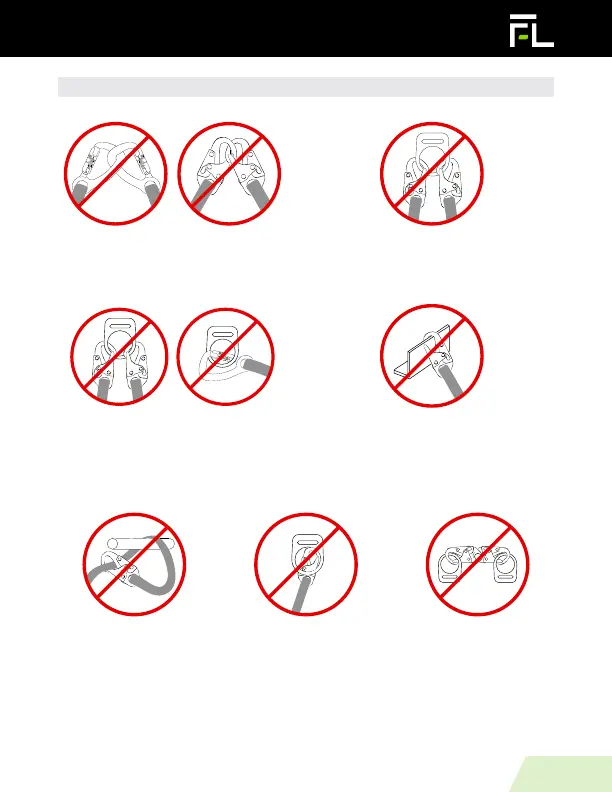

FIGURE 2 - NON
-
COMPATIBLE CONNECTIONS
DO NOT connect two snaphooks or
carabiners to each other.
DO NOT connect in a way that would create
a loading on the gate.
DO NOT attach directly back
into the component itself
such as webbing, cable, or
rope, unless specifically
allowed by manufacturer
and instructions.
DO NOT attach in a manner
where the connector, gate or
release lever, may become
caught on the anchor
causing additional risk of
false connection.
DO NOT attach a double snap
hook to two side/ positioning
D-rings in a manner
whereby the D-rings will
engage the gates.
DO NOT connect two snaphooks or carabiners
to a single D-ring at the same time.
DO NOT attach to a object in a manner
whereby the gate of the snap hook or
carabiner would be prevented from fully
locking. Always visibly inspect for proper and
full closure of the snap hook or carabiner.
1.
3.
5. 6. 7.
2.
4.
