Instruction Manual
BUILT TO LAST | MANUFACTURED TO COMPLY | DESIGNED TO PROTECT
1
20

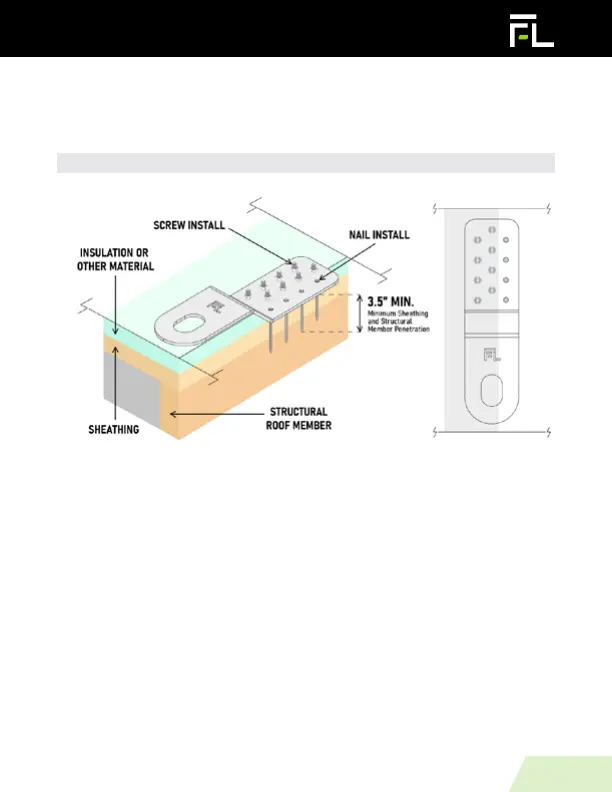

FIGURE 7
c. If there’s roof insulation, ensure that a minimum of 8 screws or nails fully
penetrate sheathing and into the structural wooden member no less than
3.5” and the remaining 4 screws or nails also are completely installed over
insulation and sheathing as shown on Figure 7.
d. . Anchor is compatible with roof pitches 0/12 – 4/12, anchor cannot be
installed in roof pitches steeper than those mentioned above.
3. Qualified person to inspect and approve installation before using anchor.
4. Once correctly installed and inspected, anchor is ready for use with the
compatible additional PFAS.
