Connecting to the RJ45 Port

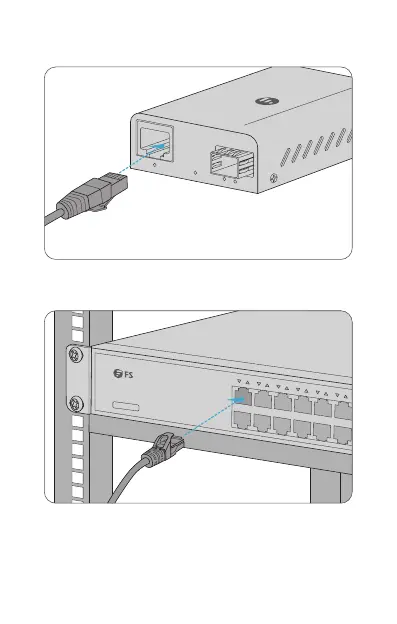

1. Connect an Ethernet cable to the RJ45 port of the media converter.
S3900-24T4S
1
2
3
4
5
6
7
8
9
10
11
12
1
3
14
2. Connect the other end of the Ethernet cable to the network device
(switch, PC, router, etc.).
TP/LNK
1000M
FX/LNK
PWR
UMC-GA1F1T
10/100/1000BASE-T to 100/1000BASE-X
Mini Unmanaged Gigabit Ethernet Media Converte
r
- 18 -
EN
18
