Connecting to the SC Port

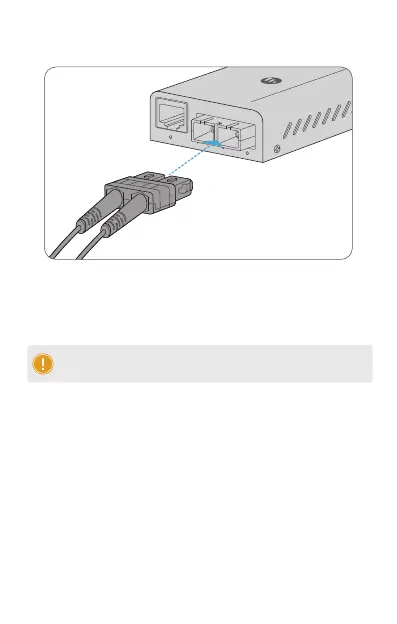

1. Connect a ber optic cable to the SC port. Plug the other end of the
ber optic cable to the ber network. TX and RX must be paired at both
ends.
NOTE:
The media converter is installed with SC port
transceiver as default.
SPD
FX/LNK
PWR
TP/LNK
UMC-GA1SC1T-SM
10/100/1000BASE-T to 100/1000BASE-X
Unmanaged Single Mode Gigabit Ethernet Media Con
verter
- 20 -
EN
20
22
