3 of 6 Sept 2021 Rev. Q
Ordering Information:
Part Number
51- 42 L 700 N H 0 S
BASIC ARG 1 ARG 2 ARG 3 ARG 4 ARG 5 ARG 6 ARG 7
ARG 1 Voltage
30 - 24 to 36 VDC
42 - 36 to 48 VDC
48 - 48 VDC
60 – 48 to 72 VDC
72 - 72 VDC
84 – 72 to 96 VDC
HV – 120 to 144 VDC
ARG 2 Unit Size
S - 5.75" X 6.75" X 2.8"
Imax VDC
500 24 through 72V
L - 5.75" X 8.75" X 2.8"
Imax VDC
700 24 through 72V
600 72 through 96V
125 120 through 144V
ARG 3 Current Limit (examples)
275 – 275 Amps
500 – 500 Amps
600 – 600 Amps
700 – 700 Amps
ARG 4 Plugging Option
P – Plugging
N - No Plugging
ARG 5 Accelerator Volts Hold Off
H – Unit has Hold Off
N – No Hold Off
ARG 6 Accelerator Input
0 - 0 to 5K Ohms
5 - 5K to 0 Ohms
V – 3-wire 5k pot,
Club Car V-Glide
S – Special setting
N – No Accelerator Input (KS enable)
ARG 7 Features
S - Standard
P – Premium
Potentiometer Adjustment.
The potentiometers are designed to be adjusted with a small trimmer or screwdriver.
Current Limit (CL) – Adjust potentiometer CW (clockwise) to increase maximum current limit. The current is adjustable from
approximately 50% to 100% of controller rating.
Controlled Acceleration (CA) – Adjust potentiometer CW to increase acceleration. The acceleration ramp is adjustable from
approximately 0.5 to 5 seconds. The factory setting is 1.2 seconds.
Plugging Adjustment (PL) – Adjust potentiometer CW to increase intensity of plugging. Be sure when setting Plugging to make for
smooth forward to reverse transition. Plugging current is adjustable from approximately 10% to 100% of specified limit.

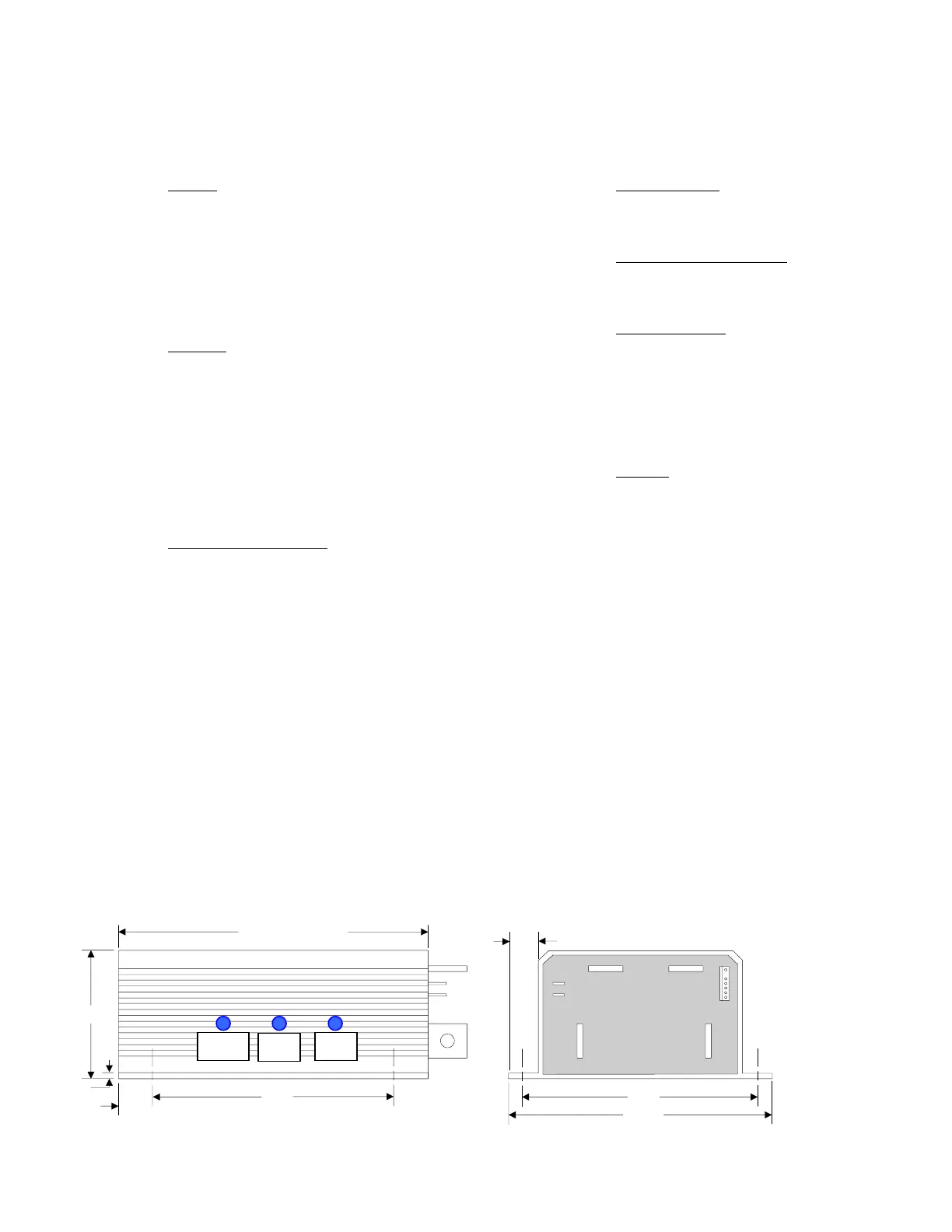

Outline (For Reference Only)
