Section 3 Installation
15 FT702LT Flat Front Wind Sensor Manual

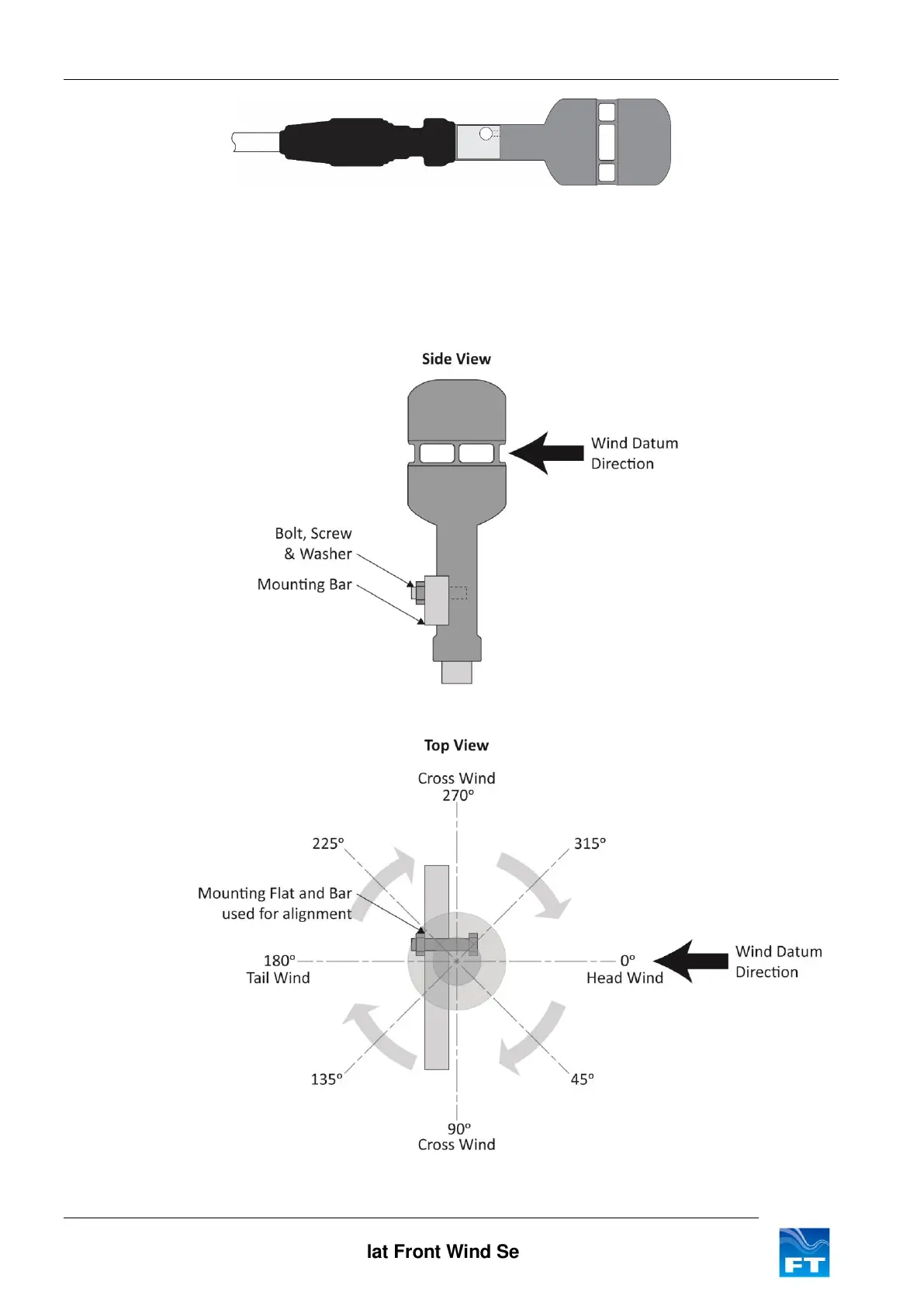

Figure 8: FT702LT-FF with protective sleeve
3.2.1 Alignment
The FT702LT measures the wind direction relative to the mounting flat and bar. When the wind sensor is
correctly aligned the wind direction measurements will be as shown in Figure 9.
Figure 9: Correct Sensor Alignment
