Chapter 3 – Mechanical & Electrical Installation
18 FT742-DM (4-20mA) – Sensors - User Manual
The sensor measures the wind direction relative to the central datum feature. When the wind sensor is correctly
aligned the wind direction measurements will be as shown in
Figure 10.

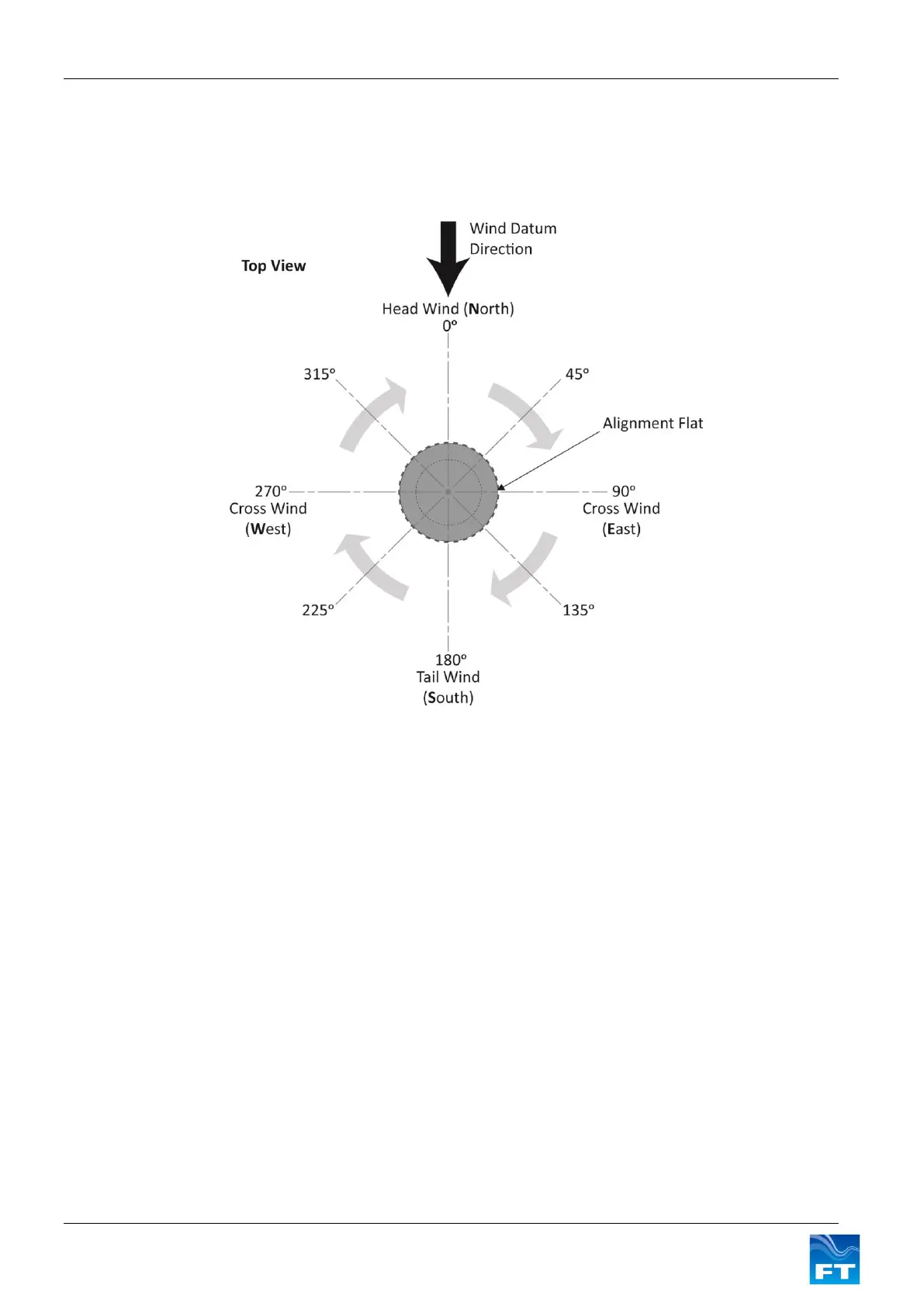

Figure 10: Wind Direction (view from above)
