The FTX Outback Mini 2.0X is a 1/18th scale 4WD ready-to-run electric-powered off-road trail vehicle, designed for enthusiasts seeking an easy introduction to RC car driving. This model comes factory assembled with all electronics installed and set up.

Function Description:

The FTX Outback Mini 2.0X is a remote-controlled trail vehicle capable of navigating various off-road terrains. It features a proportional steering wheel for precise left-to-right control and a throttle trigger for speed and braking. The vehicle is equipped with a 2.4GHz radio system, ensuring interference-free operation once bound with the Electronic Speed Control (ESC). The model is designed for forward, decelerate, and reverse movements, with instant switching between forward and reverse for slow-speed maneuverability. However, excessive use of this feature can cause transmission and ESC damage. The vehicle is splash-proof, meaning it can withstand some moisture exposure, but it is not designed for extended moisture exposure or submersion, which could lead to permanent damage.

Important Technical Specifications:

Scale: 1/18th
Drive: 4WD, shaft-driven
Radio System: 2.4GHz steerwheel transmitter
Battery (Vehicle): 7.4V 600mAh 2S LiPo
Charger: USB 150mA (approximately 4 hours for a full charge)
Battery (Transmitter): 4 x AAA batteries
Motor: 88T High Torque Motor (FTX9369)
Servo: 1KG High Torque 3-wire Servo (FTX9368)
ESC/Receiver Combo: FTX9370 (25A Brushed ESC, optional FTX9396)
Chassis: Aluminum Main Chassis (FTX9365)
Wheels/Tires: Various options including 1.0 Grabber M/T (FTX9375T, FTX9475BK, FTX9375C) and 1.0 T-Finder A/T (FTX9374T, FTX9374GY, FTX9374C)
Body Shells: Patriot PVC Body (Metallic Blue FTX9381MB, Solid Red FTX9381R, Clear Lexan FTX9381C) and LC90/CUB PVC Body (Metallic Grey FTX9380GY, Clear Lexan FTX9380C, Metallic Gun FTX9382GY, Metallic Cyan FTX9382MC, Clear Lexan FTX9382C)
Other Components: Transmission Gear Box & Axle Set (FTX9301), Shocks Set (FTX9302), Bumper & Electronics Mount Set (FTX9300), Body and Bumper Post Set (FTX9305), Internal Bead Lock Wheel Set (FTX9307, FTX9307C), Complete Vehicle Gear Set (FTX9308), Transmission Gear Shaft Set (FTX9311), Ball Stud & Pin Set (FTX9312), Complete Bushing Set (FTX9313), Complete Vehicle Screw Set (FTX9314), Micro Body Clip (FTX8873), Bumper & Side Step Set (FTX9360), Universal Main Drive Shaft Set & Rear Axle Hub (FTX9361), Front Steering Hub & Spindle (FTX9362), Axle Drive Shaft Set (FTX9364), Complete Vehicle Links Set (FTX9367), CR-18 Patriot Body Light Mount Set (FTX9386), CR-18 Patriot Body Roll Cage With Light Mount Set (FTX9387), Cub Body Light Mount Set (FTX9389), LED Light Set (FTX9385), Patriot Roll Cage LED Light Set (FTX9386).

Usage Features:

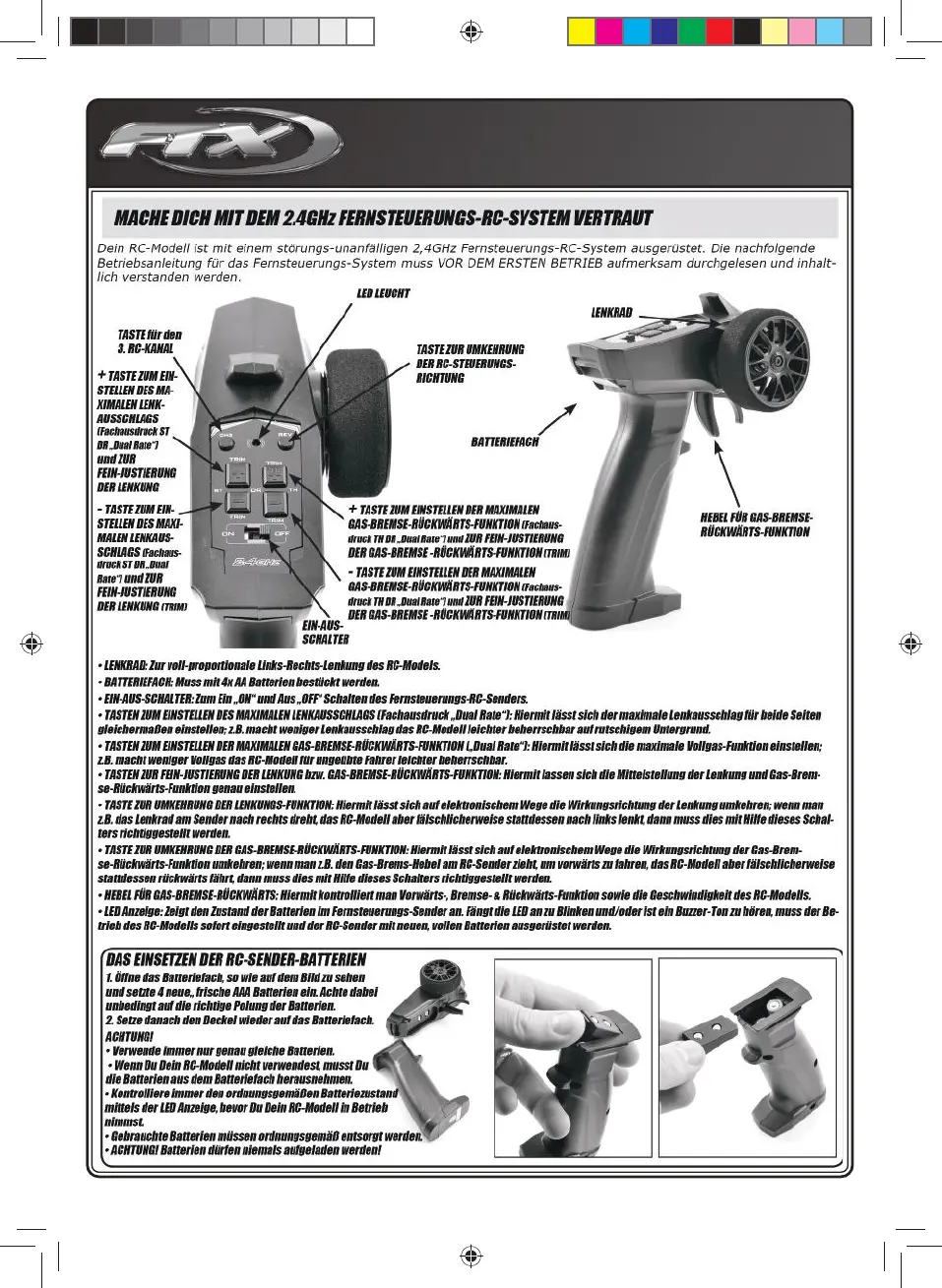

Transmitter Controls:
- Steering Wheel: Proportional control for left and right turns.
- Throttle Trigger: Controls acceleration, deceleration, and reverse.
- Steering Dual Rate: Adjusts the amount of steering servo travel.
- Throttle Dual Rate: Adjusts the amount of throttle movement.
- Steering/Throttle Trims: Fine-tunes the center position for steering and throttle.
- Reverse Button: Electronically switches the direction of steering or throttle.
- LED Indicators: Shows battery power level; blinks or beeps when batteries need replacement.
Binding: The transmitter and receiver are factory bound. If re-binding is necessary, connect the battery to the ESC, turn on the receiver, connect the bind connector to the "pair" pin header (LED will flash rapidly), then turn on the transmitter (LED will become solid).
Battery Charging: Use the included USB 150mA charger. Always charge the battery away from the vehicle and disconnect it from the charger and mains when not in use. Monitor the battery during charging and remove it if it becomes warm.
Safety Precautions:
- Operate in open areas away from traffic and people.
- Maintain direct line of sight with the vehicle.
- Keep chemicals, small parts, and electrical components out of reach of children.
- Avoid high-speed rotating parts, gears, and axles to prevent injury.
- Turn on the transmitter before the receiver, and turn off the receiver before the transmitter.
- Keep wheels off the ground when checking radio equipment.
- Avoid overheating the motor by preventing frequent turns, rapid direction changes, continuous stops/starts, pushing/pulling objects, driving in deep sand/tall grass, or continuous uphill driving.

Maintenance Features:

Regular Inspection: After each use, inspect the car for obvious damage, wear on gears, and loose screws in the chassis.
Cleaning: Keep the chassis clean and free of sand, dust, and moisture. Remove and clean the motor if necessary (do not disassemble). Clean the car body with a soft, lint-free cloth.
Battery Care: Always allow the battery to cool after use before recharging. Inspect the battery for bare wires, split heat shrink, or leakage before charging. Do not charge dead or damaged batteries. Remove batteries when not in use.
Troubleshooting:
- Vehicle not working: Check if transmitter and car are on, replace batteries, check for damaged parts.
- Vehicle runs slow: Replace/charge batteries, check gear mesh, clean bushings/ball bearings, check for stripped/dirty gears.
- Throttle works, steering does not: Check if servo is jammed, inspect steering system.
- Steering works, throttle uncontrollable: Check for damaged parts, replace/charge batteries.
- Vehicle runs noisily: Check gear mesh, inspect for stripped/dirty gears, clean and oil bushings/ball bearings.
Pre-Run Checklist:
- Check wheel nuts, linkages, and all screws for correct assembly and tightness.
- Ensure tires are correctly glued to rims.
- Verify smooth function of shock absorbers and secure caps.
- Inspect all electrical cables and connections.
- Perform a function and range test of the radio system.
- Check motor pinion and motor mount screws.
- Adjust gear mesh between motor pinion and spur gear for optimal clearance.
- Clean the entire RC model, especially the drivetrain components and bearings.
- Remove all moisture from the RC model after use.
- Regularly oil ball bearings and check for smooth rotation.
