Fuchs Audio Technology ODS-30 - Front Panel; Effects Loop

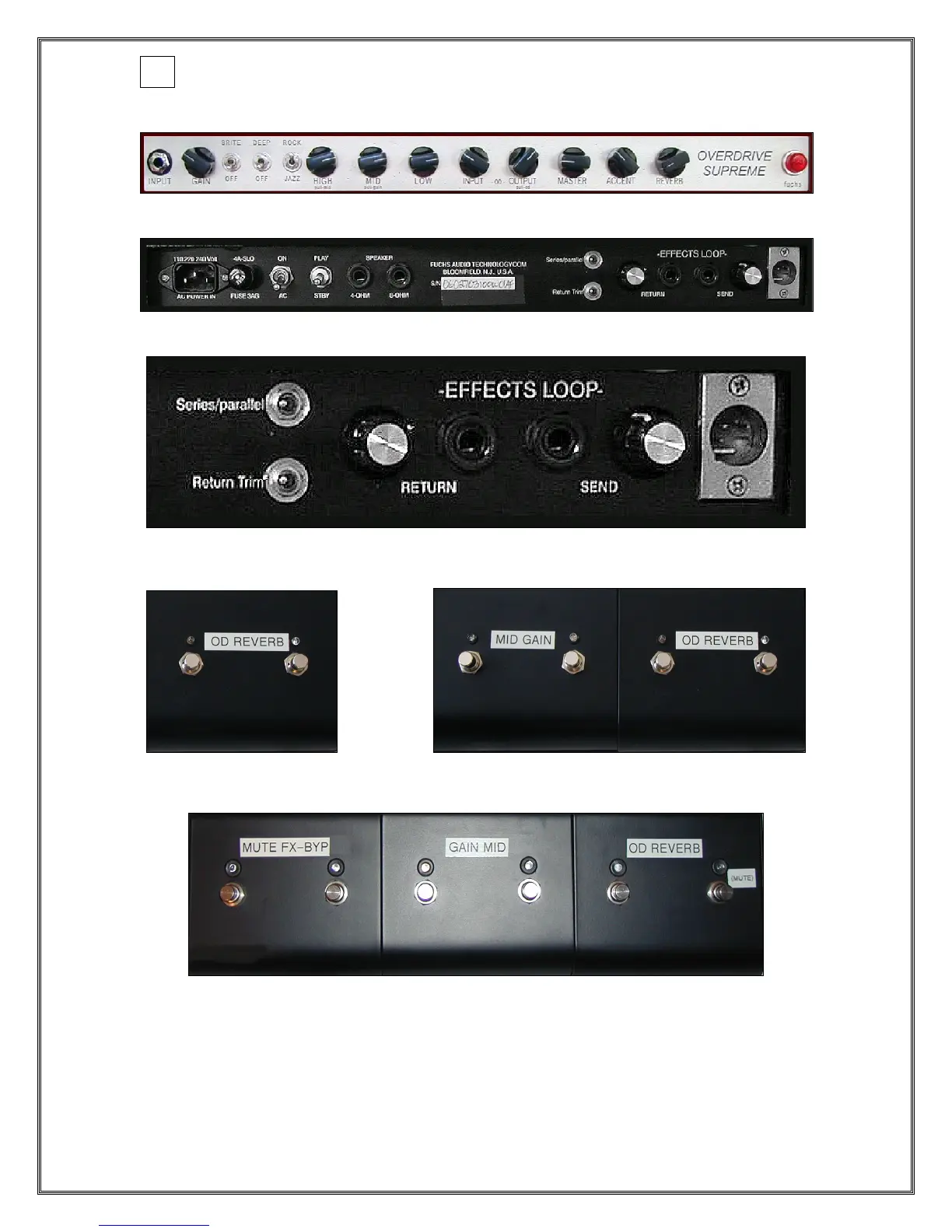

3 Diagrams of FRONT & REAR Panels and FOOTSWITCHES
Front Panel
Rear Panel
Effects Loop
Standard Footswitch (2-way) Artist Footswitch (4-way)
Artist Plus Footswitch (6-way)
(Please note that external appearances of footswitches may vary depending on production
date. All functions remain the same regardless)
