Fuel LB 500 - Step-by-Step Assembly Guide

40

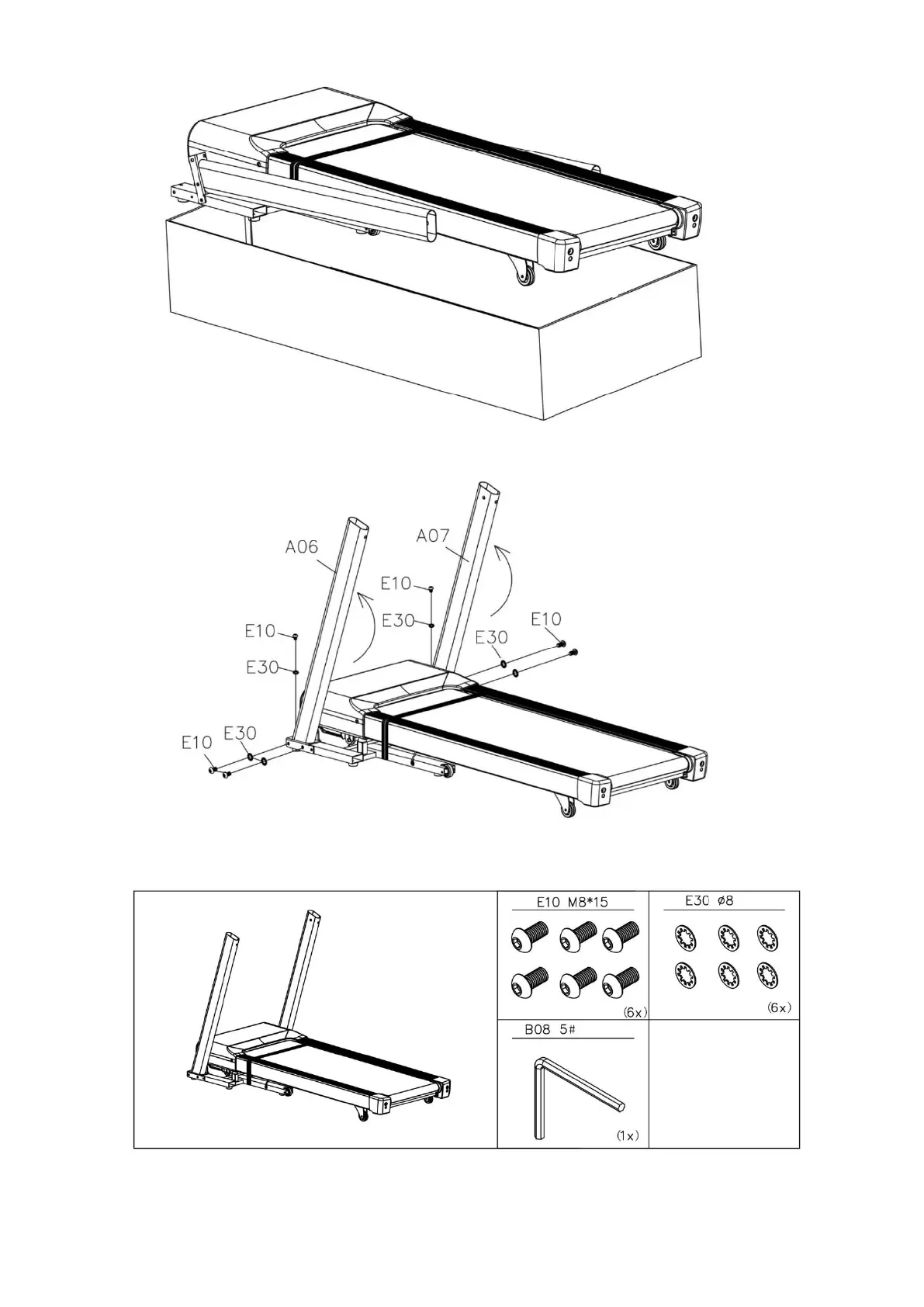

Step 1:
Remove the device from carton and put it on a flat and level floor.
Step 2:
.
Pull up the left and right upright tubes (A06/A07) and secure them in vertical position as
shown with the screws M8x15 (E10) and washers ø8mm (E30).
