14

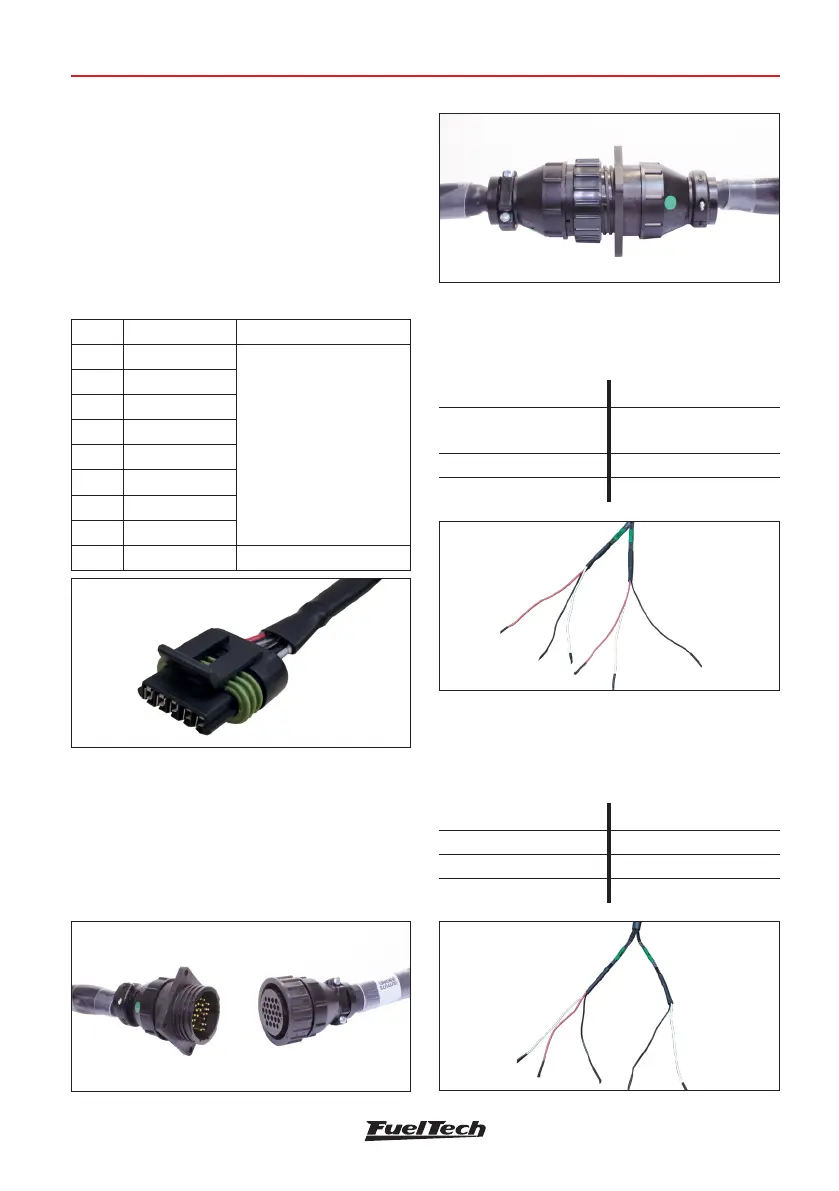

FT450/FT550 Sportsman Data logging A Harness
6.9 Crank Hall/Crank VR
Unterminated (loose). Color code:
Crank Hall: Crank VR:
Black: Ground
Black: Shield
(Grounded)
Red: 12V Red: RPM signal
White: RPM signal White: VR Reference
6.10 Cam Hall/Cam VR
Unterminated (loose) Color code:
CAM Hall: CAM VR:
Black: Ground Black: Ground
Red: 12V
White: Signal White: Signal
6.8 Firewall CPC Connector
The CPC connector is both safe and user
friendly and offers the perfect connection
solution for the harness through the rewall,
by having keys that won’t allow connection in
the wrong position.
Pin Color Function
A Gray #1
Ignition Expansion
FT Smart Coil Harness
Ready
B Gray #4
C Gray #4
D Gray #3
E Gray #2
F Gray #1
G Gray #3
H Gray #2
K - BAT Ground
6.7 Ignition Expansion
When using this harness combined with
FuelTech Smart Coil Harness (sold separately
- 2002100108), there will be 8 Smart Coil
(5001100012) plugs.
The Smart Coil Harness’ Relay is powered by a
external switch that must be supplied trough the
“J” pin at the IGNITION EXPANSION connector.
