FT450/FT550 Sportsman Data logging A Harness

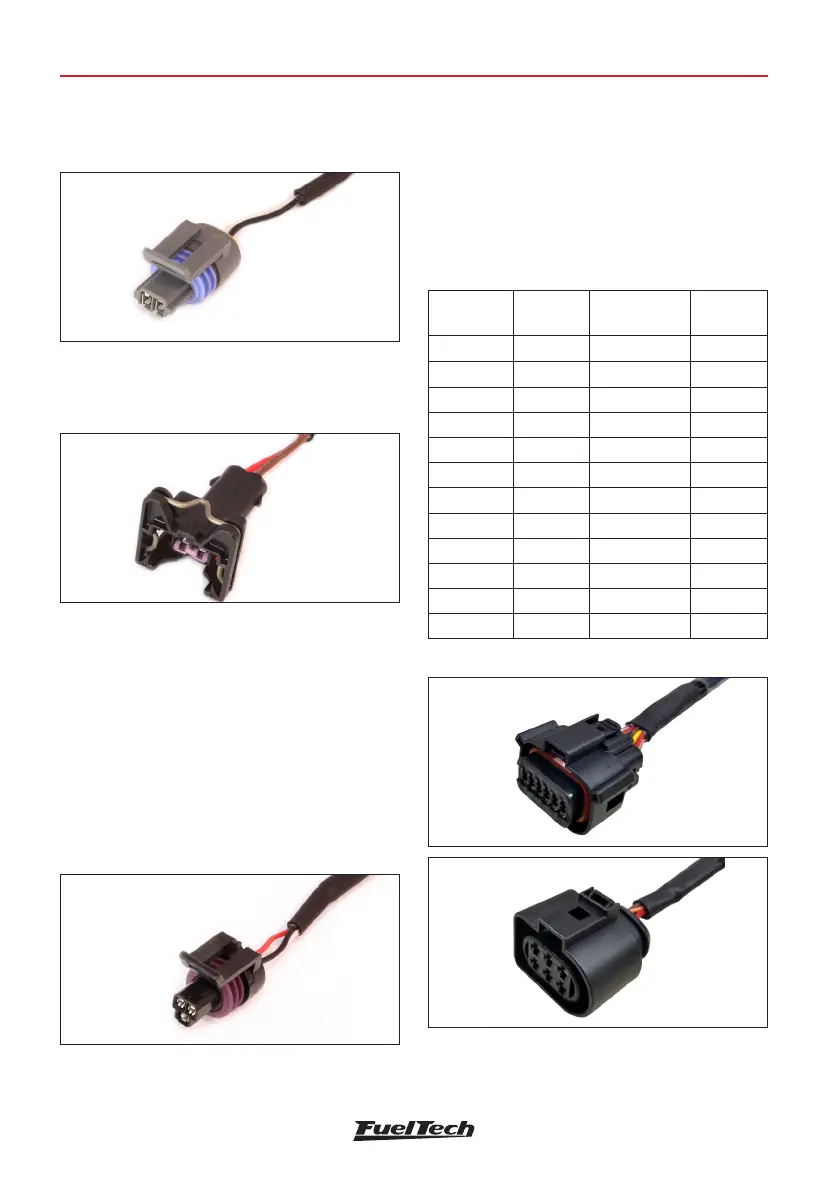

6.5 Oil and Fuel Pressure
The oil and fuel pressure sensor connectors are
designed for the PS-150, PS-300, PS-500 and
PS-1500 sensors; ranging from 150 to 1500
psi, with a Packard style 3-way connector.
- Pin A: battery’s negative (black)
- Pin B: 5V supply (green/red)
- Pin C: signal output (white)
6.6 WB-O2 NANO Connector
The WB-O2 NANO has a 12 way connector
with 3 wire groups. One has the connector for
the O2 sensor (Part number 3022000965), the
second is for CAN communication and the third
is responsible for the power and analog output.
NANO
Pin
CPC
Pin
O2 sensor
Pin
Color
Left #3 12 Left #1 brown
Left #7 13 Left #2 orange
Left #8 14 Left #3 green
Left #9 15 Left #4 blue
Left #2 16 Left #5 yellow
Left #1 17 Left #6 red
Right #3 18 Right #1 brown
Right #7 19 Right #2 orange
Right #8 20 Right #3 green
Right #9 21 Right #4 blue
Right #2 22 Right #5 yellow
Right #1 23 Right #6 red
Transmission Temperature: Compatible with
FT Temperature Sensor (5005100225), EV-1
connector
- Pin A: signal output
- Pin B: battery’s negative
