FT450/FT550 Sportsman Data logging A Harness
6.2 POWERED CAN A
Auxiliary connectors in the Inner and Engine
side of the harness that plug directly to the
FuelTech Switch Panel or that can be used or
something else. It has Switched 12V, sensor
ground and CAN A communication.
- Pin 1: Switched +12V
- Pin 2: Sensor ground
- Pin 3: CAN A LO (-)
- Pin 4: CAN A HI (+)
6.3 Extra Connections
Extra Inputs: The Extra Inputs connector has
two white inputs that can be used to read any
0 to 5V analog sensor. The connector also has
a +5V output for sensors (green with red stripe)
and a +12V output from the main relay.

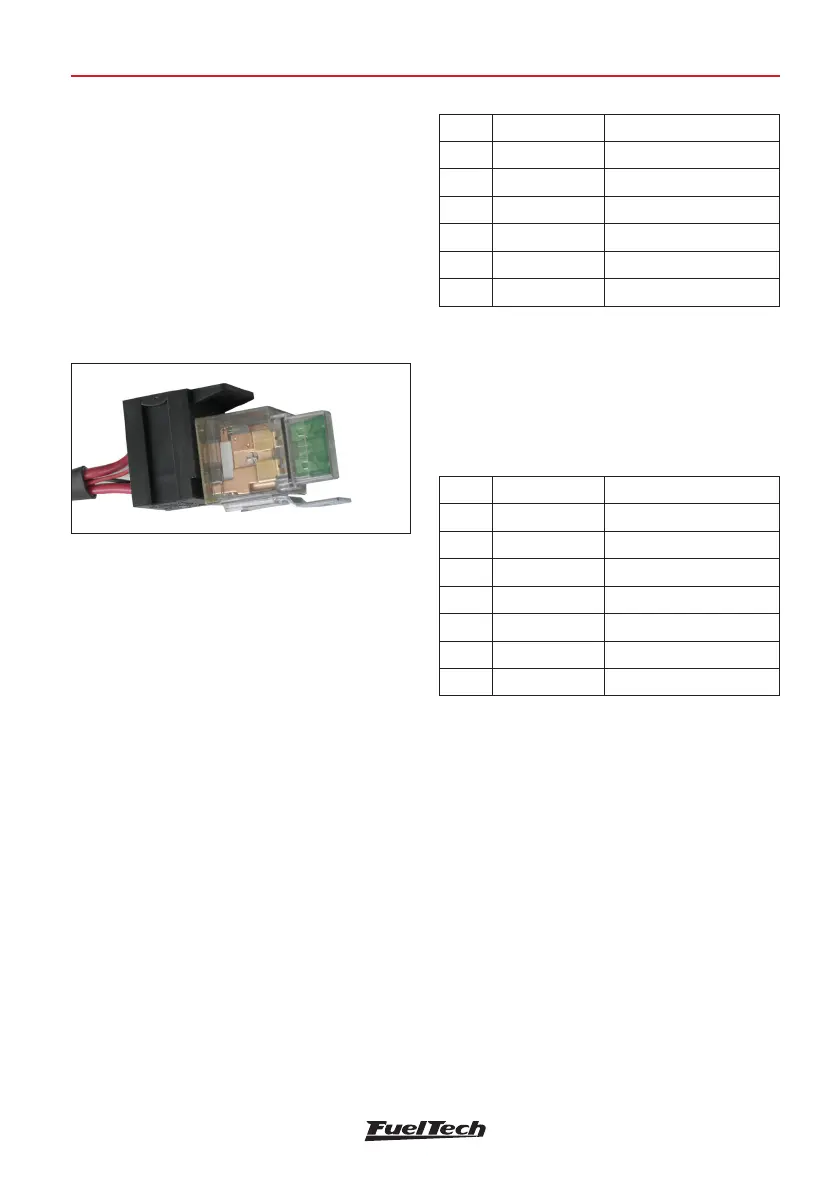

6. Harness Connectors
6.1 Relay and Fuses
Both relays in this harness are automotive type
with a 40A capacity, integrated 40A fuse and
an ON status LED.
There is a main relay for the FuelTech ECU,
O2 conditioner and sensors. There is also
a Outputs Relay, that supplies power to the
“Outputs A” and the “Aux Power” connectors.
FT450 - Gray - IGNITION EXPANSION
Connector: Connector designed to be used
with the SmartCoil Harness. Please read
sections 5.3 and 6.7 of this manual for more
info.
6.4 Coolant and Transmission
Temperature
The Harness has 2 temperature inputs. One
input is for the engine coolant temperature
and the other is for transmission temperature.
The engine Coolant Temperature connector
is a GM style and uses Metri-Pack 150.2
connectors. Compatible with FT 5005100016
water temperature sensor.
Pin Color Function
A Blue #1 Free
B Blue #2 Free
C Blue #3 Free
D Blue #4 Free
E Blue #5 Free
F Blue #6 Free
L Black Power Ground
Pin Color Function
A White #3 Extra Input
B Black Signal Ground
C Black Signal Ground
D White #4 Extra Input
E Red 12V for sensor
F Green/Red 5V for sensor
Extra Outputs A: The Extra Outputs A
connector has six blue outputs that can be
used for almost any kind of purpose, activating
solenoids (some need relays), injectors, loads
and general output. The connector also has a
power Ground.
