FT450/FT550 Sportsman Data logging A Harness
4. Overview
The Fueltech FT450 SPORTSMAN universal harness is a plug and play wiring
solution to be used with a FuelTech FT450 ECU. It comes pre-terminated to
plug directly into essential data logging input channels, and has an extra input
connector to add up to two more congurable inputs for sensors or buttons.
4.1 FT450 Universal Harness
This harness was designed for FuelTech Wideband NANO O2 systems with
Bosch LSU 4.2 sensor, ready to execute the reading of the engine temperature
and pressure sensors. There are 2 separate relays to supply the entire system.
There is also a head grounding wire, which must be connected to the engine
head. The motor MUST have its own ground wire (not included).

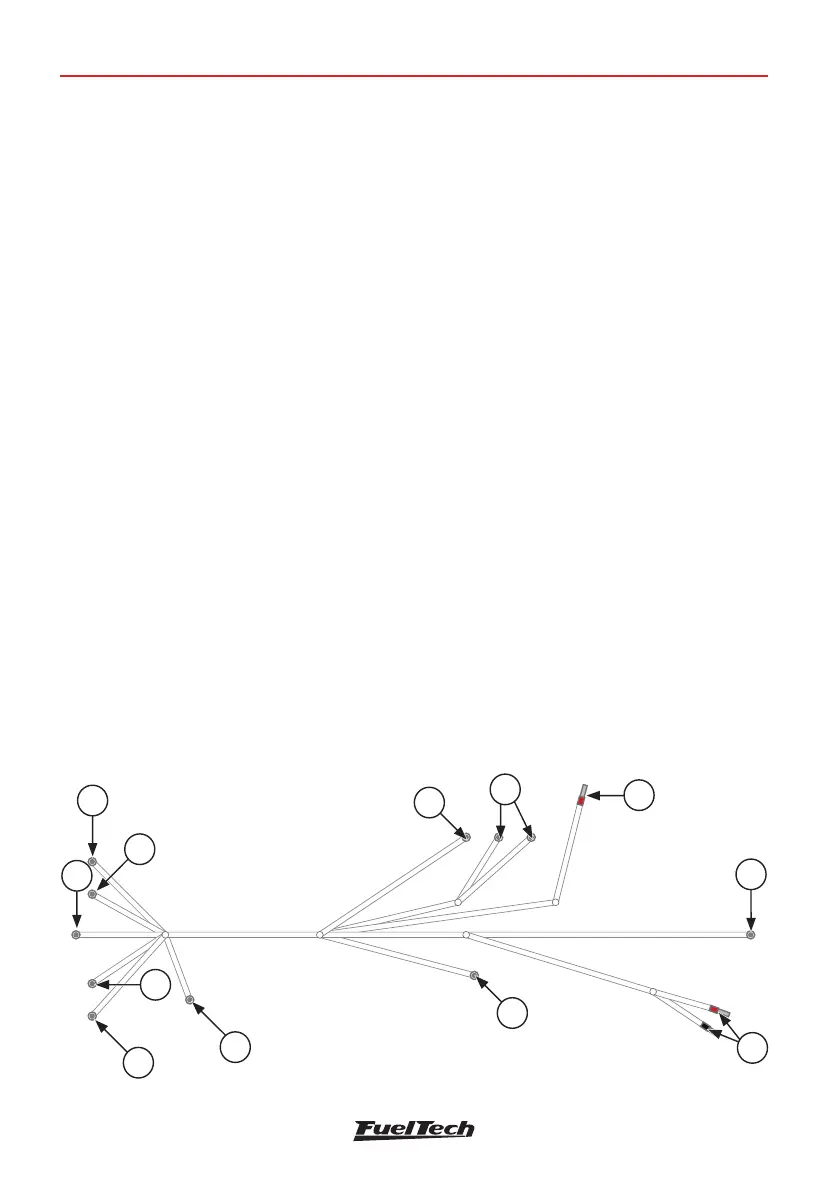

Inner
1 - FT450 Connector
2 - WB-O2 NANO Right Connector
3 - WB-O2 NANO Left Connector
4 - DriveShaft Sensor Connector
5 - Extra Outputs A Connector (blue outputs)
6 - Ignition Expansion Connector
7 - Relays and fuse
8 - 12V Switched
9 - +BATT (Red) and -BATT (Black)
10 - CPC Connector
11 - Extra Inputs Connector
12 - Powered CAN
1
3
2
4
5
6
7
8
10
9
11
12
